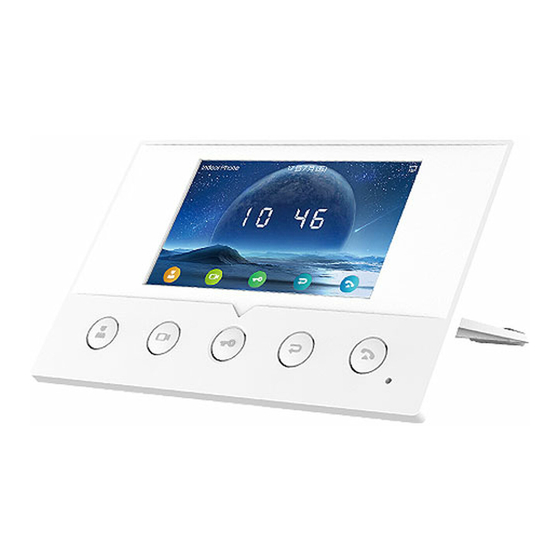

Fanvil i51W Quick Installation Manual
Indoor station
Hide thumbs
Also See for i51W:
- User manual (46 pages) ,
- Quick start manual (5 pages) ,
- How to reset (7 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Fanvil i51W
Summary of Contents for Fanvil i51W

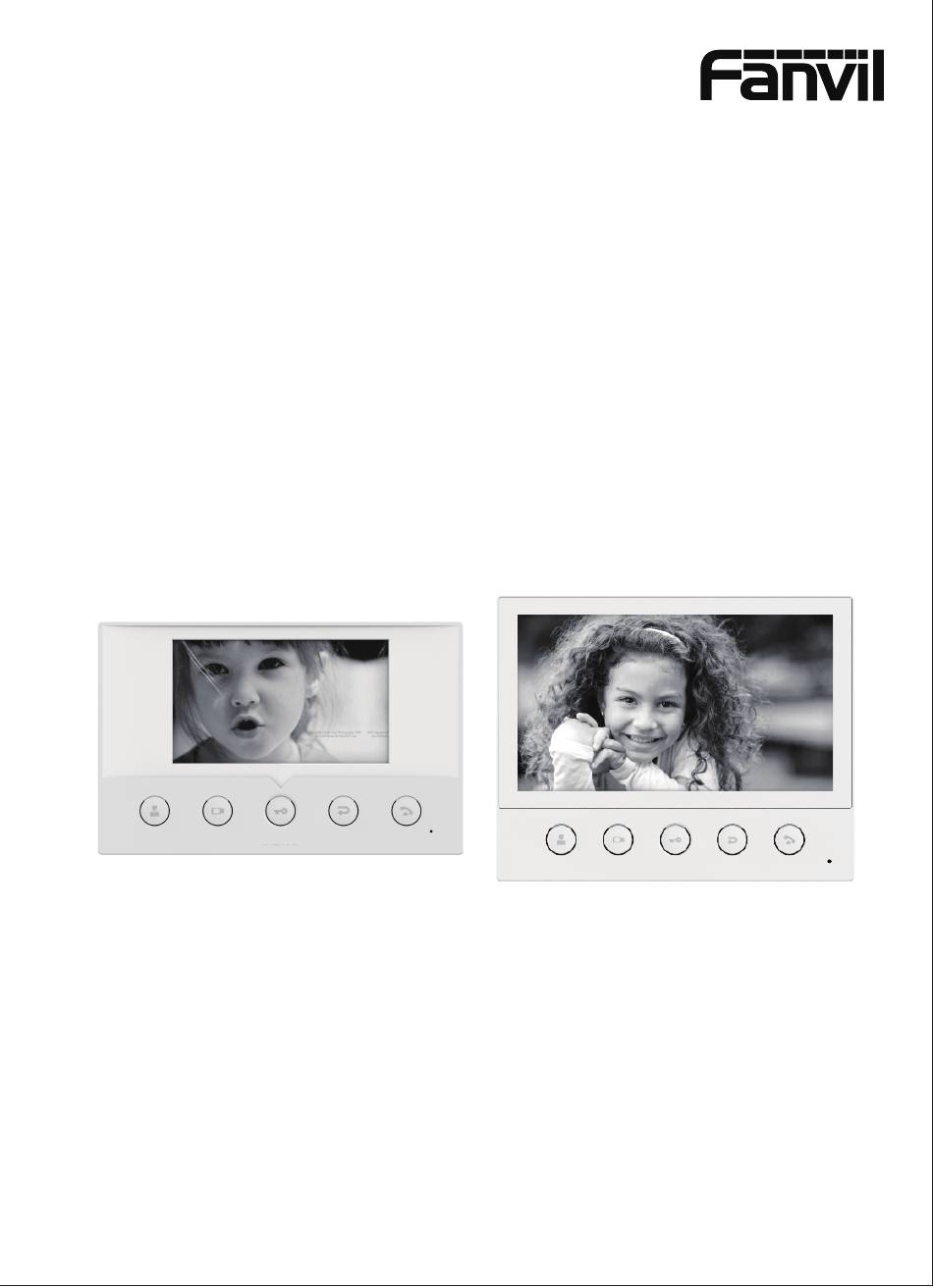

- Page 1 Indoor Station Quick Installation Guide i51W i53W...
- Page 2 Package Contents i51W&i52W&i53W Indoor Station Quick Installation Guide i50W i51SW Indoor Station Quick Installation Guide Wall-mount Bracket 10 pin Cable*1 4 pin Cable*1 2 pin Cable*1 TA4*30mm Screw*2 PM4*16mm Screw*2 Screw fixing seat*2 Physical specification Wi-Fi Model RS-485 Dimension (2.4G) √...
- Page 3 Description Description Management Center Key Return / Hang up key Monitor key Answer key Unlock Key Microphone 2) Rear Panel ⑥ ② ① ③ ④ ⑤ Description Interface DC Power interface：12V/1A input. Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is recommended to use CAT5 or CAT5E network cable. Industrial power interface.
- Page 4 3) External device connection diagram Installation Diagram（two models） 102.00 90.00 28.00 60.00 58.43 4.00 52.06 79.43 4.00 106.00 Wall bracket Desktop bracket（Buy independently） Model 1. Wall-mounted Installation Step 1. Install wall bracket Without 86 embedded box in the wall A. According to the position of the cable in the wall, dig out a square hole (height*width*depth=58.5*60*50mm) that can accommodate all cables.
- Page 5 There are two methods as shown below to search the device. The default WAN mode is DHCP. Method 1: Open the iDoorPhone Network Scanner, click the Refresh button to search the device and find the IP address. (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe)
- Page 6 Method 2: i51W&i52W: After booting, long press the unlock key to enter the menu, click "System Message" --- "Network". i53W : After booting, “Menu”--- "Status". IP Indoor Station Setting Step 1: Log in the web setting page of Indoor Station Input IP address of indoor station (e.g.
- Page 7 Step 2：Add the SIP account. Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click Apply to save this setting. Step 3： Feature Setting...
- Page 8 Call management center Click the key on the indoor station to call the management center, and click the key to cancel the call. Fanvil Technology Co., Ltd www.fanvil.com Email:sales@fanvil.com Tel:0755-2640-2199 Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II),...
