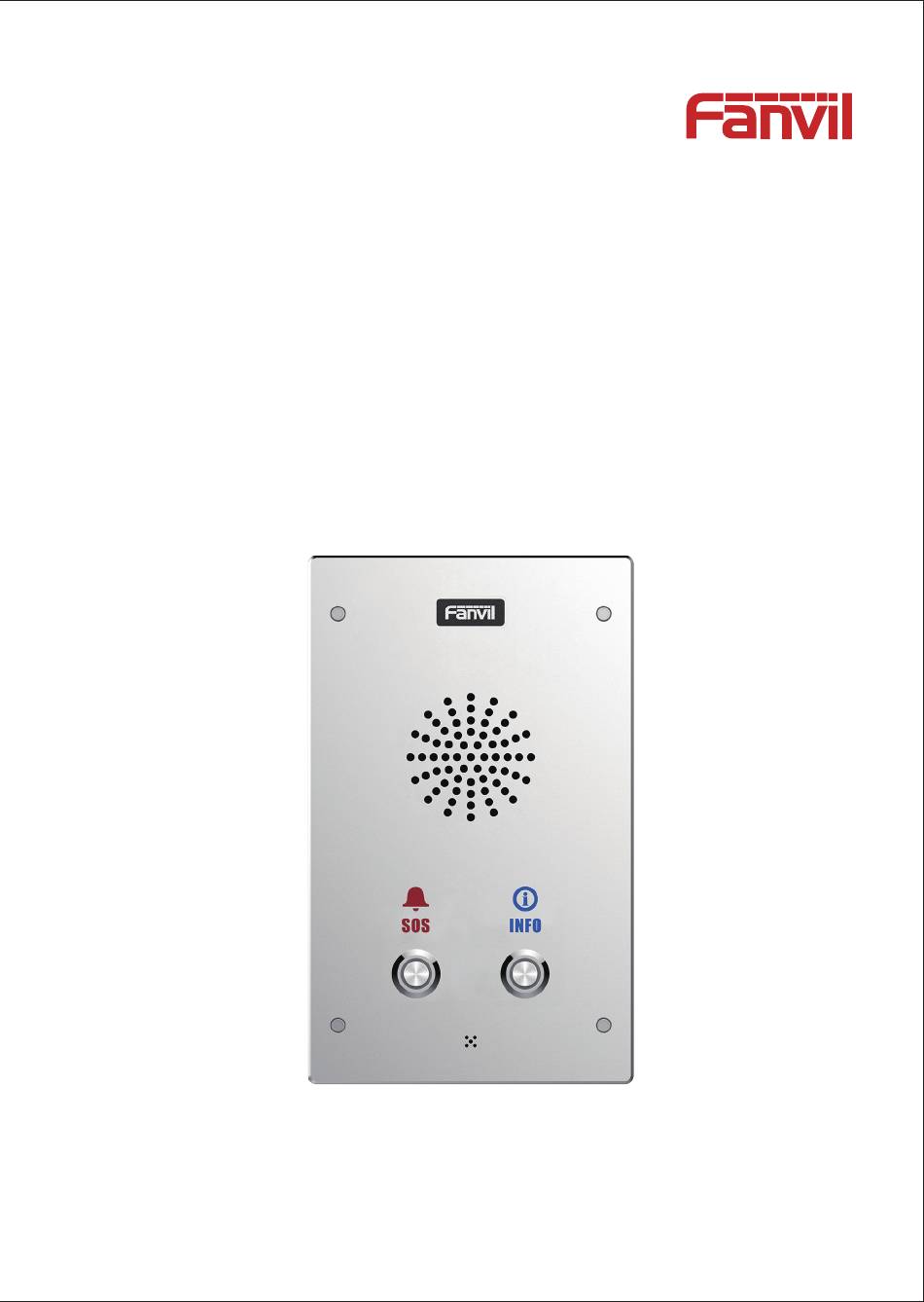

- Page 1 SIP Intercom Quick Installation Guide www.fanvil.com...
- Page 2 Package Contents SIP Intercom Connector i16S-02P SIP Intercom Quick Installation Quick Installation Guide Mounting Template Guide www.fanvil.com Screw and tool Physical specification Device size 195 x 120 x 40 (mm) 1) Panel Speaker SOS Key DSS Key...
- Page 3 2) Interface description Open the rear case of the device, there is a row of terminal blocks for connecting the power supply, electric lock control, etc. The connection is as follows: ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Serial Description Wiring port description(example above) number...
- Page 4 Fanvil Technology Co., Ltd Website: www.fanvil.com EMail: sales@fanvil.com support@fanvil.com Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Add: 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China...
- Page 5 Download address: http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe Open the iDoorPhone Network Scanner. Press the Refresh button to search the device and find the IP address. i16S-02P i16S-02P Method 2: Long press DSS key for 3 seconds(after power-on for 30 seconds), and when the speaker beeps rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.
- Page 6 Step 2: Set SIP account Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click [Apply] to save this setting. Step 3: Set the volume (if not connected can skip) Intercom settings =>...
