VITEK IVP, INC.

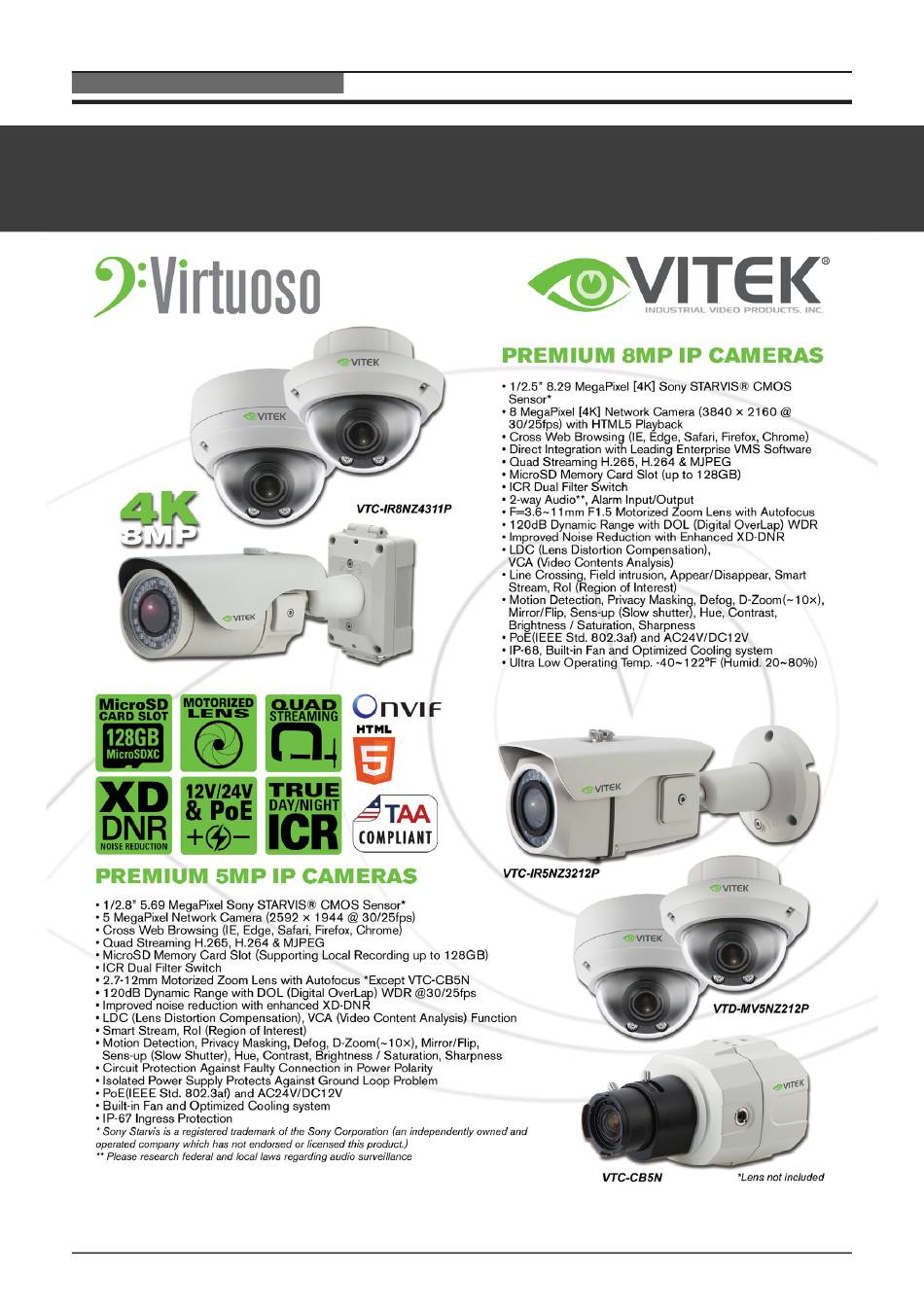

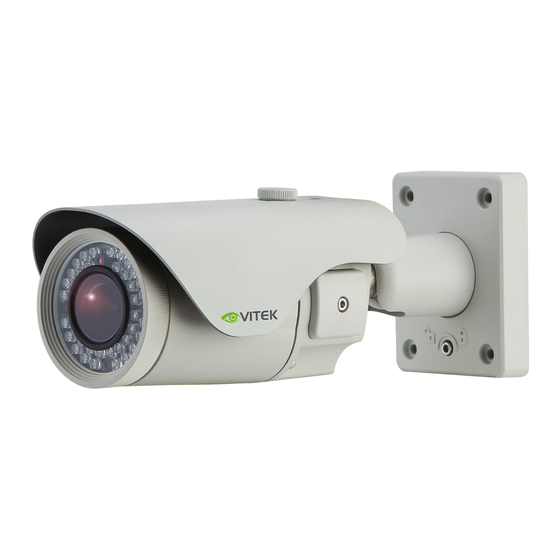

VITEK VIRTUOSO IP CAMERA
MANUAL
VTD-MV8NZ311P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIRTUOSO and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VIRTUOSO

Summary of Contents for Vitek VIRTUOSO

  • Page 1 VITEK IVP, INC. VITEK VIRTUOSO IP CAMERA MANUAL VTD-MV8NZ311P...

  • Page 2: Table Of Contents

    Network VITEK IVP, INC. !"#$ % &'(")* +",-./0* 1$!"/$* MENU CONTROL - CONTENTS Network Menu Control ..... 1~4p Full Menu Setup .
  • Page 3 VITEK IVP, INC. LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.

  • Page 4: Menu Control - Contents

    Menu Control !"#$ % &'(")* +",-./0* 1$!"/$* Setup Menu table Category Menu Configuration Player Control Pause, Snapshot, Speaker(*), Microphone(*), Record(**) Display (Window Fit, Full Screen, Custom) LIVE VIEW Video Stream Stream1, Stream2, Stream3, Stream4 Protocol HTTPS, HTTP, TCP, UDP Zoom, Focus, Direct Zoom(or Push AF) PTZ Control Event Search, Timeline Search, Timeline Bar PLAYBACK(**)

  • Page 5: Network Menu Control

    VITEK IVP, INC. !"#$ % &'(")* +",-./0* 1$!"/$* Menu Control Event Triggers Motion, VCA, Alarm In(*), System, Manual, Network, Timer, Day/Night Actions Record, Alarm Out(*), E-Mail, FTP, Video Boost, Notification Server Rules Event Processing, ONVIF Mapping System Security User, HTTPS, IP Filter, ONVIF, Video Stream, Export/Import Date &...

  • Page 6: Full Menu Setup

    VITEK IVP, INC. Full Menu Setup - MS Internet Explorer (Ver. 9 or higher) - Mozilla Firefox: Windows Only - Google Chrome: Windows Only - Apple Safari: Mac OS X only • Supports only officially released version. * Change IP Address The default IP address of cameras are 192.168.1.10.

  • Page 7: Live View

    VITEK IVP, INC. !"#$ % &'(")* +",-./0* 1$!"/$* Menu Control A - Version: Show the camera F/W version. B - Chane IP: Available to change IP. C - Quick View: Available to have Quick View after Login. D - Login: Available to Login(admin/admin) and then Quick View.
  • Page 8 VITEK IVP, INC. Full Menu Setup * Player Control Pause: Pauses the live view. Snapshot: Captures the image in .jpg format with the current stream resolution. Speaker: (Available only with the built-in Audio feature version) Enables Audio to be outputted to the audio out port.
  • Page 9 VITEK IVP, INC. Full Menu Setup Window Fit: Resizes the live view display to fit the display window size. 7 Full Screen: Resizes the live view display to fit to the monitor resolution. ESC key returns to the previous view.

  • Page 10: Playback

    VITEK IVP, INC. Full Menu Setup • Do not adjust zoom/focus in low light conditions or night mode. It might cause erroneous focusing. • For V/F versions, Zoom/Focus operation is strongly recommended for installation purpose only. Frequent zoom/focus adjustments can reduce the life span of the lens.

  • Page 11: Setup

    VITEK IVP, INC. Full Menu Setup 3. SETUP Enter the setup menu on the Web Viewer. 3-1. Information Shows the overall information about the system such as Model name, MAC address, IP address, Zeroconf, IP address, Firmware version, Server time, Running time, CPU usage,...

  • Page 12: Video & Image

    VITEK IVP, INC. Full Menu Setup 3-2. Video & Image 3-2-1. Source • SIGNAL: Set NTSC/PAL mode depending on TV system. Generally set to NTSC in 60Hz area and PAL in 50Hz area for the electrical power system of your country.
  • Page 13 VITEK IVP, INC. Full Menu Setup Stream1, 2, 3, 4 > COMPRESSION: H.265(+) and H.264(+) are available in all stream but MJPEG is available in Stream 3, 4 only. • H.265+, H.264+: Enables to process video data smartly according to users demand and lowering overall bandwidth, and reduce the storage burden.

  • Page 14: Smart Video Stream

    VITEK IVP, INC. Full Menu Setup 3-2-3. Smart Video Stream ROI (Region Of Interest) > Enables to process video data smartly according to user’s demand. > Available to deliver high quality video on interested region while less quality video on non-interested region.
  • Page 15 VITEK IVP, INC. Full Menu Setup 4) ROI frame rate is available in Settings> Video & Image> Video Stream.5) To delete the selected area, right Click the mouse button on the video viewer, select "Create ROI area" or click “Delete” button.
  • Page 16 VITEK IVP, INC. Full Menu Setup GKFL & FK& KM""KNO L KO HL ; ? 5 F...
  • Page 17 VITEK IVP, INC. Full Menu Setup Basic > BRIGHTNESS: Adjusts the overall brightness of the scene. Increasing the value increases the brightness. > CONTRAST: Adjusts the contrast of the scene. Increasing the value increases contrast. > SATURATION: Adjusts the color richness of the scene. Increasing the value increases the color richness.
  • Page 18 VITEK IVP, INC. Full Menu Setup > MODE: Selects how to control the exposure, AUTOMATIC or MANUAL. > SLOW SHUTTER: Extends the shutter time over the maximum shutter time of value in SLOW SHUTTER. Increasing the value increases brightness but also increases blurriness.
  • Page 19 VITEK IVP, INC. Full Menu Setup (Available with the built-in motor driven V/F lens version only) > MODE: Selects how to control the focus of the built-in Motor driven V/F lens or AF lens. • MANUAL: Focusing works during zoom operation only and stops thereafter.

  • Page 20: Image

    VITEK IVP, INC. Full Menu Setup [ WARNING ] LENS CALIBRATION is not necessary for regular installations. LENS CALIBRATION would only be necessary should you not be able to focus the lens after a zoom operation due to shock during transportation of the camera.
  • Page 21 VITEK IVP, INC. Full Menu Setup > IR LED CONTROL: LEDs can be controlled on the web (VTD-MV5NZ212P Only) [ CAUTION] • The gap between THRESHOLD [D->N] and THRESHOLD [N->D] should be greater than 18. Otherwise, an undesirable transition may occur.
  • Page 22 VITEK IVP, INC. Full Menu Setup > BLC (Back Light Compensation): • MODE: ON enhances the visibility of the back-lit object. • LEVEL: Determines the strength of the brightness. High value gets brighter. > HLC (High Light Compensation): ON cuts out the highlight area with black mask and excludes it from compensation.
  • Page 23 VITEK IVP, INC. Full Menu Setup > MODE: ON compensates for the barrel distortion caused by wide angles. > LEVEL: Determines the amount of the compensation. Higher values expand the shrunken areas in the corners. Vertical View (corridor) > MODE: ON displays the video in vertical view format, 16:9->9:16 for narrow streets, corridors or hallways.

  • Page 24: Privacy Mask

    VITEK IVP, INC. Full Menu Setup 3-2-5. Privacy Mask Mark ENABLE checkbox to activate the privacy masks. > COLOR: Select the color to mask at each privacy area. > NAME: Input the individual name for each privacy mask. To set the privacy mask (up to 8 privacy areas): 1) Mark ENABLE checkbox.

  • Page 25: Digital Zoom

    VITEK IVP, INC. Full Menu Setup 3-2-6. Digital Zoom > Mark ENABLE checkbox to activate the digital zoom. > LEVEL selects the fixed digital zoom ratio. X1.0 is not digital zoomed. 3-2-7. DIS (Digital Image Stabilization) > Mark ENABLE checkbox to reduce and stabilize the shaky image from a camera installed in a vibrating area.

  • Page 26: Record

    VITEK IVP, INC. Full Menu Setup > INPUT VOLUME: Adjusts the volume of the input signal level. -0.5dB reduces the volume about -6%, 0.0dB bypasses the signal without adjusting the volume and 3.0dB increases the volume about +41%. > Mark ENABLE OUTPUT checkbox to activate the audio. Supports full duplex audio.

  • Page 27: Schedule

    VITEK IVP, INC. Full Menu Setup 3-4-1. Record > Mark OVERWRITE WHEN STORAGE IS FULL checkbox to allow the storage to be overwritten. > CONTINUOUS RECORD SETTING: Mark ENABLE checkbox to activate the continuous recording into the storage. > VIDEO STREAM: Selects the stream to be recorded into the storage.

  • Page 28: Recycling

    VITEK IVP, INC. Full Menu Setup 3-4-3. Recycling > Mark ENABLE RECYCLING checkbox to delete recorded video data in storage when certain time is passed. For example, if Recycling Time is set to 2 Months 1Day 0Hour, all the video data that passed 2 Months 1Day 0Hour will be deleted. > Recycling Time Setting: Set the storage period of recorded video data •...

  • Page 29: Event

    VITEK IVP, INC. Full Menu Setup > REMOVE: Helps removing the storage safely. [ NOTE] Common Internet File System (CIFS) is a remote file access protocol that forms the basis for Windows file sharing, network printing, and various other network services.
  • Page 30 VITEK IVP, INC. Full Menu Setup To set the motion detection area (up to 4 include-types and 4 exclude-types): 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor where you would like to make a detection window and click & drag the right button. The following window is then generated.
  • Page 31 VITEK IVP, INC. Full Menu Setup > Mark ENABLE checkbox to create & activate up to 3 VCAs (Line Cross, Field intrusion & Appear/Disappear) > NAME: Input the individual name for each VCA. To set the VCA detection area (up to total 3 VCAs including Line Cross, Field intrusion &...
  • Page 32 VITEK IVP, INC. Full Menu Setup Click the green rotating icon on the top-right of the video window and OBJECT SETTING menu will appear. To hide it, click the icon again. Mark SHOW OBJECT SIZE checkbox and a black rectangle at the top-left corner of the video window will appear.
  • Page 33 VITEK IVP, INC. Full Menu Setup > Mark ENABLE checkbox to enable the manual trigger icons on the live view menu. > DWELL TIME: Sets the time for the event once triggered by the manual trigger on the live view menu.
  • Page 34 VITEK IVP, INC. Full Menu Setup Timer Mark ENABLE checkbox to trigger the event as defined Timer Interval. (Hour/Minute/Second) Day / Night Mark ENABLE checkbox to trigger the event when Day/Night is switched. > MODE: Select the mode, Day->Night or Night->Day.

  • Page 35: Actions

    VITEK IVP, INC. Full Menu Setup 3-5-2. Actions EVENT ACTIONS menu defines and sets the parameters for how to treat the various event sources. Record (Available only with the built-in storage feature version) > Mark ENABLE checkbox to enable recording into the built-in storage when the event occurs.
  • Page 36 VITEK IVP, INC. Full Menu Setup E-mail The camera can send email messages generated by the events via SMTP (Simple Mail Transfer Protocol). > Mark ENABLE checkbox to enable emailing. • SENDER: Enter the email address of the sender. Any virtual email address like sample@sample.com can be used so the recipient can recognize it from the camera.
  • Page 37 VITEK IVP, INC. Full Menu Setup [ NOTE ] If a PLAIN or LOGIN mechanism is negotiated, the camera sends the username and password to the SMTP server. The LOGIN mechanism is supported by Microsoft, as well as some other clients. Most other clients support the PLAIN authentication mechanism.
  • Page 38 VITEK IVP, INC. Full Menu Setup • PORT: Enter the port number used by the FTP server. The port number can be adjusted in the range 1-65535. The default setting is 21. • REMOTE DIRECTORY: Specify the path to the directory where the uploaded images will be stored.
  • Page 39 VITEK IVP, INC. Full Menu Setup • ADDITIONAL SUFFIX: Selects the suffix for JPEG image file names to be added after the file name. Selecting NONE will overwrite the previous file and thus DATE &TIME is most preferable. Video Boost Sets the frame rate and bitrate for H.264 stream and the quality for JPEG stream at...
  • Page 40 VITEK IVP, INC. Full Menu Setup...

  • Page 41: Rules

    VITEK IVP, INC. Full Menu Setup 3-5-3. Rules EVENT RULES menu defines and sets the parameters for what to do for the various event sources. Event Processing Event process lists must be generated and can be edited for what to do when the event occurs.
  • Page 42 VITEK IVP, INC. Full Menu Setup > NOTIFICATION SERVER: Mark the checkbox to use the notification server as set in SETUP>EVENT> ACTIONS> NOTIFICATION SERVER when the selected event occurs. • MESSAGE: Input the message to be sent to the notification server.
  • Page 43 VITEK IVP, INC. Full Menu Setup > FTP: Mark the checkbox to use FTP as set in SETUP>EVENT>ACTIONS>FTP when the selected event occurs. > VIDEO BOOST: Select the video stream to be boosted up. boost is disabled if RECORD is enabled.

  • Page 44: System

    VITEK IVP, INC. Full Menu Setup 3-6. System 3-6-1. Security Users Manages the user accounts by names, groups and authorities. > USERS: Can be added, edited or deleted. HTTPS Selects the CONNECTION MODE.
  • Page 45 VITEK IVP, INC. Full Menu Setup > HTTP: Transfers data without encryption. Supports a URL that only starts with "HTTP: " > HTTPS: Transfer data with encryption by Hypertext Transfer Protocol over SSL protocol. Supports a URL that only starts with "HTTPS: "...

  • Page 46: Date / Time

    VITEK IVP, INC. Full Menu Setup administrator for more detail. If the network camera is accessed via a proxy server, the IP address for the proxy server must be added as an allowed address. ONVIF > Mark ENABLE WS SECURITY to provide the ONVIF compliance.

  • Page 47: Network

    VITEK IVP, INC. Full Menu Setup Current Time Shows the current date and time. Clicking SAVE updates and saves the date and time with the selected time in NEW TIME. New Time Select one of the following server times. > SYNCHRONIZE WITH COMPUTER TIME: Obtains the time from the computer.
  • Page 48 VITEK IVP, INC. Full Menu Setup TCP/IP > IPv4 ADDRESS: • OBTAIN IP ADRESS VIA DHCP: Gets the IP address assigned by the DHCP (Dynamic Host Configuration Protocol) server. • STATUS: ‘Allocated’ shows that the IP address is obtained from the DHCP.
  • Page 49 VITEK IVP, INC. Full Menu Setup > PORT: • HTTP PORT: Use a port number in the range 1024-65535. Default is 80.
  • Page 50 VITEK IVP, INC. Full Menu Setup • HTTPS PORT: Use a port number in the range 1024-65535. Default is 443. • RTSP PORT: Use a port number in the range 1024-65535. Default is 554. DDNS (Dynamic Domain Naming Service) > Mark ENABLE checkbox to use DDNS.
  • Page 51 VITEK IVP, INC. Full Menu Setup • TTL: When IP packets or data fails to be delivered to the destination within TTL (Time To Live), this setting tells the network router when to discard the packet. The value is usually measured in 'hops', i.e. the number of network routers that can be passed before the packet arrives at its destination or is dropped.

  • Page 52: Language

    VITEK IVP, INC. Full Menu Setup Zeroconf ZeroConf (Zero configuration) networking enables the network to establish automatically with the automatic assignment of numeric network addresses (zeroconf IP addresses) without requiring manual operator intervention or special configuration servers when the DHCP server is not available in the network.

  • Page 53: Maintenance

    VITEK IVP, INC. Full Menu Setup 3-6-5. Maintenance Maintain > RESTART: Restarts the camera without changing any settings. > RESET: Restarts and loads the factory settings but does not change IP address and PTZ settings. > DEFAULT: Loads and saves the factory defaults for all parameters including IP address and PTZ settings.
  • Page 54 Full Menu Setup Setup Export Current configurations for the camera can be saved as a file by clicking the EXPORT button. Setup Import The exported configuration file from a reference camera or a backup configuration can be imported and configured/reloaded onto other cameras. [ NOTE] •...
