(Lens not included)
•
700 TVL High Resolution
•
Pixim D8800C Seawolf Digital Imaging System CMOS
•
0.00008 Lux (F1.2@40IRE using sense-up)
•
Designed to fit in Pelco DF5 Housing
•
Supports C/CS Mount DC Drive Lenses
•
Supports NTSC & PAL Standards
•
On Screen Display (OSD) w/optional remote
•
12VDC / 24VAC Dual Voltage Operation

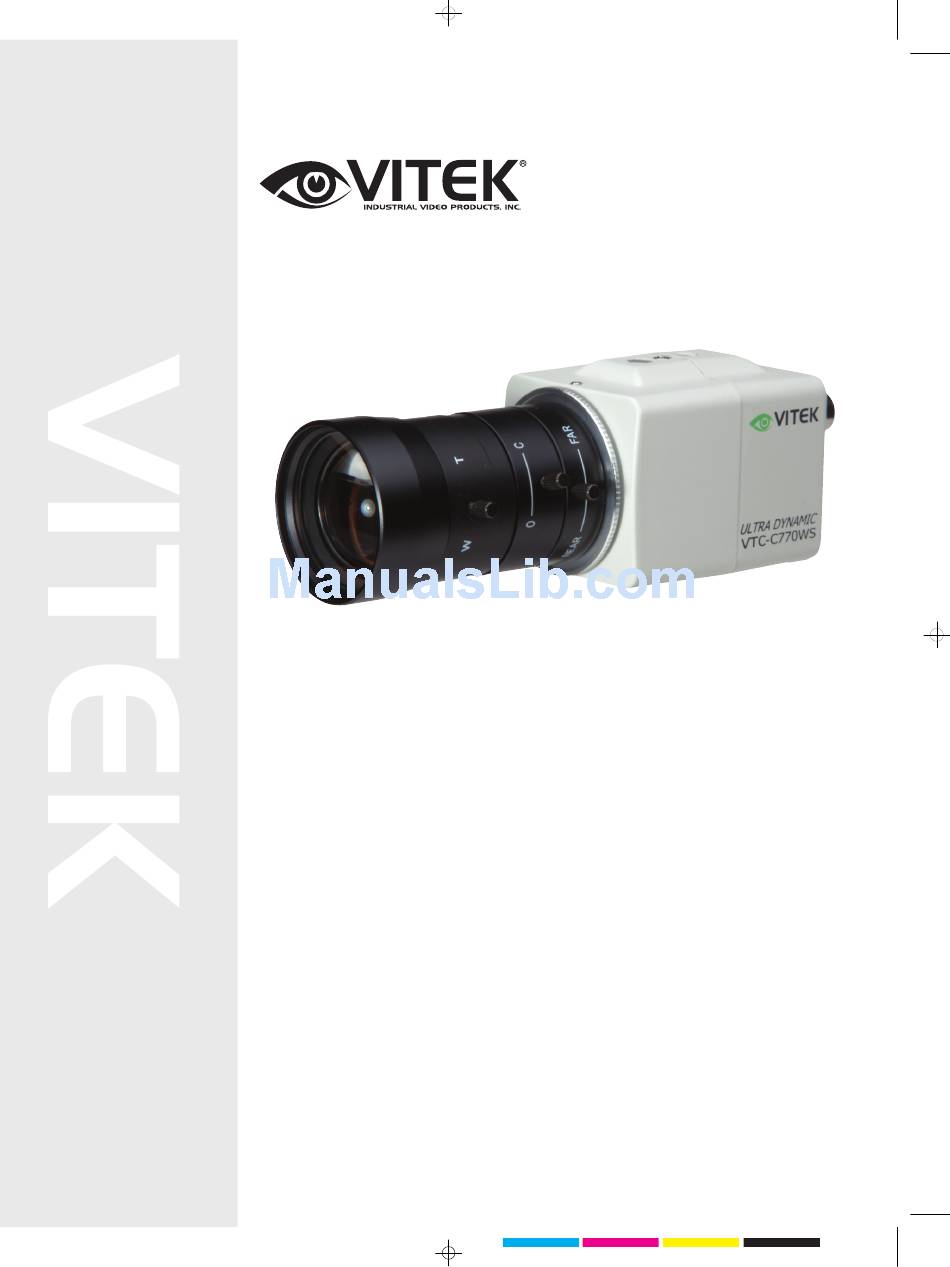

VTC-C770WS
Pixim Powered Ultra Dynamic Range
Color CCD Camera with 700 TVL
CYAN
MAGENTA
YELLOW
Short Body
BLACK
Advertisement
Table of Contents
Related Manuals for Vitek VTC-C770WS
Summary of Contents for Vitek VTC-C770WS
- Page 1 VTC-C770WS Pixim Powered Ultra Dynamic Range Color CCD Camera with 700 TVL Short Body (Lens not included) • 700 TVL High Resolution • Pixim D8800C Seawolf Digital Imaging System CMOS • 0.00008 Lux (F1.2@40IRE using sense-up) • Designed to fit in Pelco DF5 Housing •...
- Page 2 To prevent fire or shock hazard, do not expose the unit to rain or moisture. WARNING The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
-
Page 3: Table Of Contents
Table of contents 1. Safety Instructions and Notes…....................4 2. General Descriptions................……………………………... 5 3. Supplied Items..................…………………………….. 5 4. Part names…………………………….…...........…………………..……….. 6 5. Installation procedure………………………............……………………... 7 6. Start up…………………................……………………...…... 8 7. Setup Menu………………………………………………..............8 8. Specifications……………………………………………..............16 9. Dimensional Drawings…....................... 17... -
Page 4: Safety Instructions And Notes
1. Safety Instructions and Notes • Read instructions carefully before putting the camera into operation. • Keep the operating instructions in a safe place for later use. • The Standard Box Camera is designed for indoor use only and it must not be installed where exposed to rain and moisture. -
Page 5: General Descriptions
2. General Descriptions The VTC-C770WS camera is a superb ultra dynamic range camera that achieves 120dB max (102dB typical) of dynamic range of the image by implementing PIXIM's Seawolf digital imaging system. Seawolf digital imaging system: - Delivers high-resolution, crystal clear images that accurately capture every aspect of any... -
Page 6: Supplied Items
3. Supplied Items 1 x VTC-C770WS Ultra Dynamic Color Camera 1 x Dust protection cap 1 x L-Wrench (1.5mm) 1 x Power Connector 1 x Installation and Operating Instructions 3. Part Names 3.1 Perspective 1. Mount Hole (1/4” UNC) 2. Flange Lock Screw 3. -
Page 7: Installation Procedure
3.2 Rear Side view ⓑ ⓐ ⓒ ⓓ Video Output Connector (BNC) ⓐ OSD Control Joystick (Up/Down/Left/Right/Enter) ⓑ Power Input Terminal ⓒ AUTO IRIS LENS CONTROL (DC LENS ONLY) ⓓ - Lens Connector for Auto-iris lens (DC Drive) PIN 4 PIN 2 PIN No DC Iris... -
Page 8: Start Up
4.3 Power Supply Connections The VTC-C770WS camera works with 24VAC or 12VDC, dual voltage power. It does NOT require matching polar connection for 12VDC supply. Primary and secondary grounds are completely isolated to avoid possible ground-loop problems. Its wide operating voltage range of 10.5V-30V for DC and 12-28.8V for AC gives extra flexibility during installation. - Page 9 MENU Default Descriptions Sets COLOR ROLL COMP. AE PREFERENCE, WDR CONTROL and EXPOSURE SENSE-UP. Sets OFF, AUTO or NIGHT OFF – Day/Night is disabled and camera works as a normal color camera. AUTO – Camera switches DAY from/to NIGHT automatically. DAY/NIGHT AUTO N->D THRES, N<->D DELAY, BURST ON B/W can be set.
- Page 10 EXPOSURE Default Descriptions In NTSC system, the color tone on the monitor may show a red or green hue. EXPOSURE Descriptions COLOR ROLL COMP. - Reduces the color rolling under the fluorescent lighting. (NTSC system only) COLOR ROLL <WDR MID> Medium level of the dynamic range control for each PRESETs.
- Page 11 IMPORTANT!!! DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the final step of installation. Factory Settings have DAY/NIGHT set to OFF. Block the lens for a few seconds for NIGHT mode, then release and let it return to DAY mode. If the camera stays at NIGHT mode more than 10 seconds, increase N-->D THRES and repeat the fore-mentioned steps.
- Page 12 6.6 LENS SELECT To enter LENS SELECT menu, press button at MAIN>LENS SELECT>DC or MANUAL. DC/ MANUAL Default Descriptions Lower values open the lens iris and increases the brightness and vice versa. Too high of a value reduces the amount AI LEVEL of incoming light and may result in the camera not returning to DAY from NIGHT.
- Page 13 PICTURE Factory PICTURE Factory Descriptions Descriptions CONTROL PICTURE Factory Default CONTROL Default Descriptions CONTROL Default Sets ATW to Normal, ATW Desat, ATW Xtnd or MANUAL. Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL. ATW NORMAL – Compensates automatically in range of 2800K- Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL.
- Page 14 SPECIAL Default Descriptions If it is set to ON and motion is detected, MOTION message will MOTION appear on the monitor. See ‘6.8.1 MOTION ’ for settings. PRIVACY If set to ON, up to 6 privacy masks will be available. MASK See ‘6.8.2 PRIVACY menu’...
- Page 15 6.8.2 PRIVACY AREA Up to 6 privacy areas can be programmed in size, position and mask color. Use joystick to change size, position and mask color. After pressing button at ON, the 1st After pressing button again, the 1st zone appears top-left corner...
-
Page 16: Specifications
8. Specifications Model name VTC-C770W S Image Device 1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series) Effective Pixels 768(H) x 540(V) TV system NTSC, 525lines / 2:1interlace PAL, 625lines / 2:1interlace Scan frequency. 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H) Synchronization Internal/Line lock (Default: Internal) H. -
Page 17: Dimensional Drawings
9. Dimensional Drawings... - Page 19 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller.
- Page 20 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
