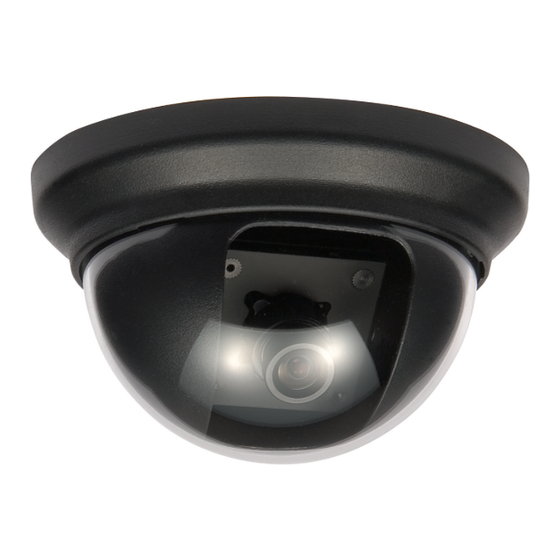

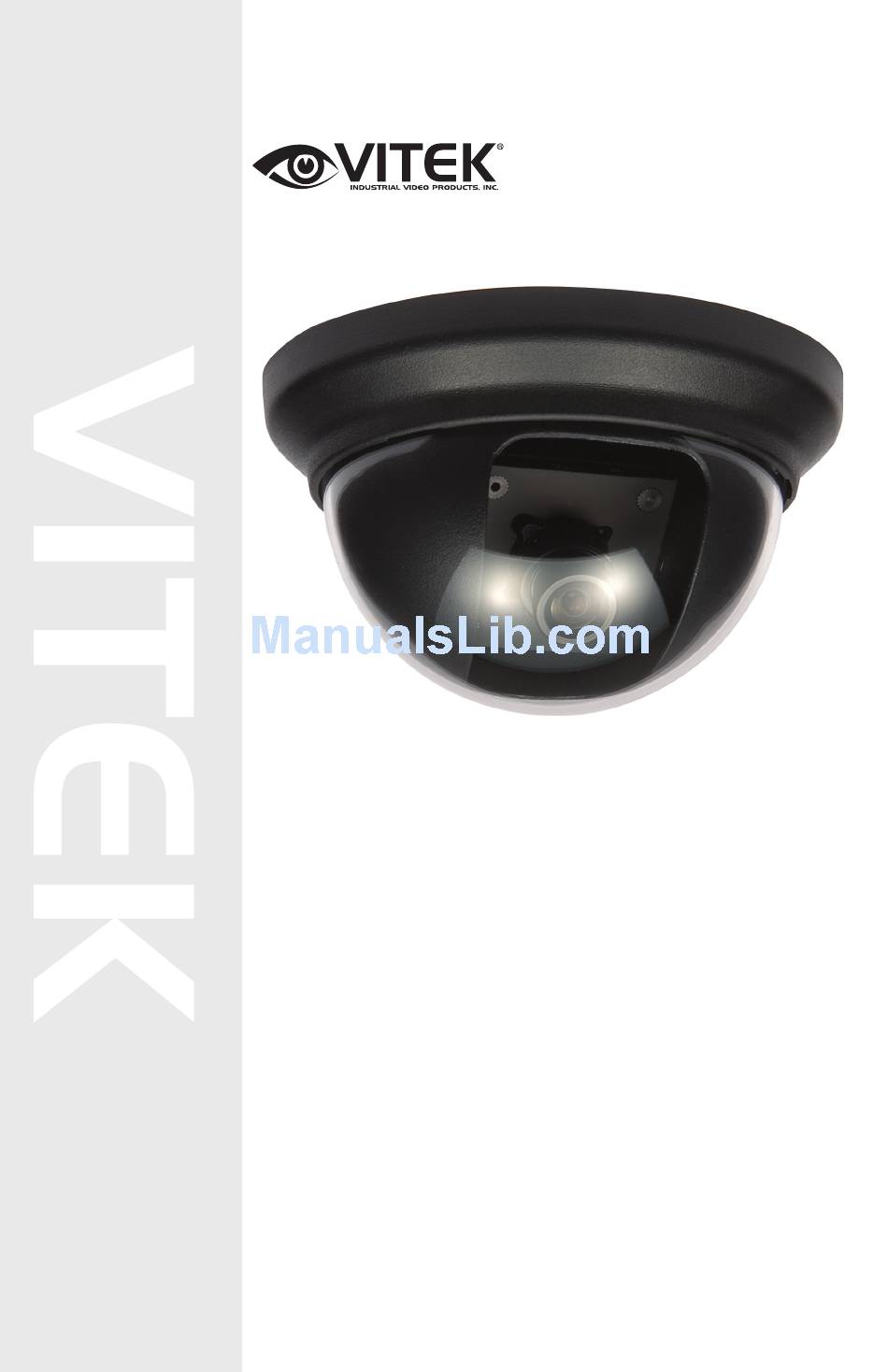

- Page 1 VTD-C13A Alpha Series Indoor Color Dome Camera • 1/3” Color CCD image sensor w/420 TV Lines • Minimun Illumination of 0.5 Lux / F2.0 • 3.6mm / f2.0 Standard Lens • 12VDC Operation...
- Page 2 2. Only use DC Power Supply 11. Only use attachment/accessories specified by VITEK. 3. Read & Keep these instructions. 12. Use only with cart, stand, tripod, 4. Heed to all warnings and follow all bracket, or table specified by the instructions carefully.
-
Page 3: Installation
INSTALLATION 1. Turn “Dome Cover” (as shown in Figure 1) counterclockwise to the end and take it off. 2. Mark the positions of one “power and video line hole” and four “screw holes” on the ceiling. (as shown in Figure 2 & Figure 3). Drill a hole on the proper position of the ceiling for the power and video line to pass through. -
Page 4: Specifications
1/60 (1/50) to 1/100,000 sec. Lens f3.6mm / F2.0 Lens Angle 70 Degrees IRIS Mode Gain Control Auto White Balance Video Output 1.0Vp-p composite, 75 Ohms Power Source 12VDC Current Consumption 100mA Dimensions Diameter x Height: 3.94” x 2.36” (100mm x 60mm) VTD-C13A Inside... - Page 5 OThEr GrEAT PrOduCTS BY VT-H Series 4, 8, and 16 Channel Digital Video Recorders with H.264 Compression The Alpha Series VT-H Series Digital Recorders combine the latest H.264 Compression technology with stability and simple operation. H.264 Compression is the next generation of MPEG4 allowing up to 50% smaller file sizes for increased storage capability and/or resolution as well as a more fluid internet transmission speed.
- Page 6 VTM-LCDP Series 15”, 17“, and 19” Professional LCD Monitors with Looping BNC Inputs • 15”, 17“, and 19” Professional LCD Display Panels • Designed for continuous 24/7 operation • VGA, Looping BNC Composite, and S-Video Video Inputs. DVI & HDMI Inputs on 17“ & 19” Versions •...
- Page 7 NOTES...
- Page 8 VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as oth- erwise stated above, from the date of purchase by the end user.
