FEATURES:
• 1/2.9" Sony® Progressive Scan CMOS (IMX222)
• 2.1 MegaPixel with Full 1080p/720p HD-SDI (SMPTE292M) /
EX-SDI Output
• Six (6) High Power 850nm IR LEDs with up to 160' foot range
• MegaPixel IR Corrected 2.8-12mm Varifocal Lens Included
• Mechanical IR Cut Filter (True Day/Night)
• 16:9 Video Format
• Advanced OSD Functions: Motion Detection, Sharpness, Gamma,
Mirror, Flip, DSS, Freeze, D-Zoom, ACE, WDR, 3D-DNR, Defog,
Privacy, HLM
• 100% Pure Digital Transmission of video data
• Up to 1000' HD Transmission Range (Depending on cable
characteristics and integrity)
• IP68 Weather Resistance
• 12VDC/24VAC Dual Voltage Operation
• Available in Ivory or Black

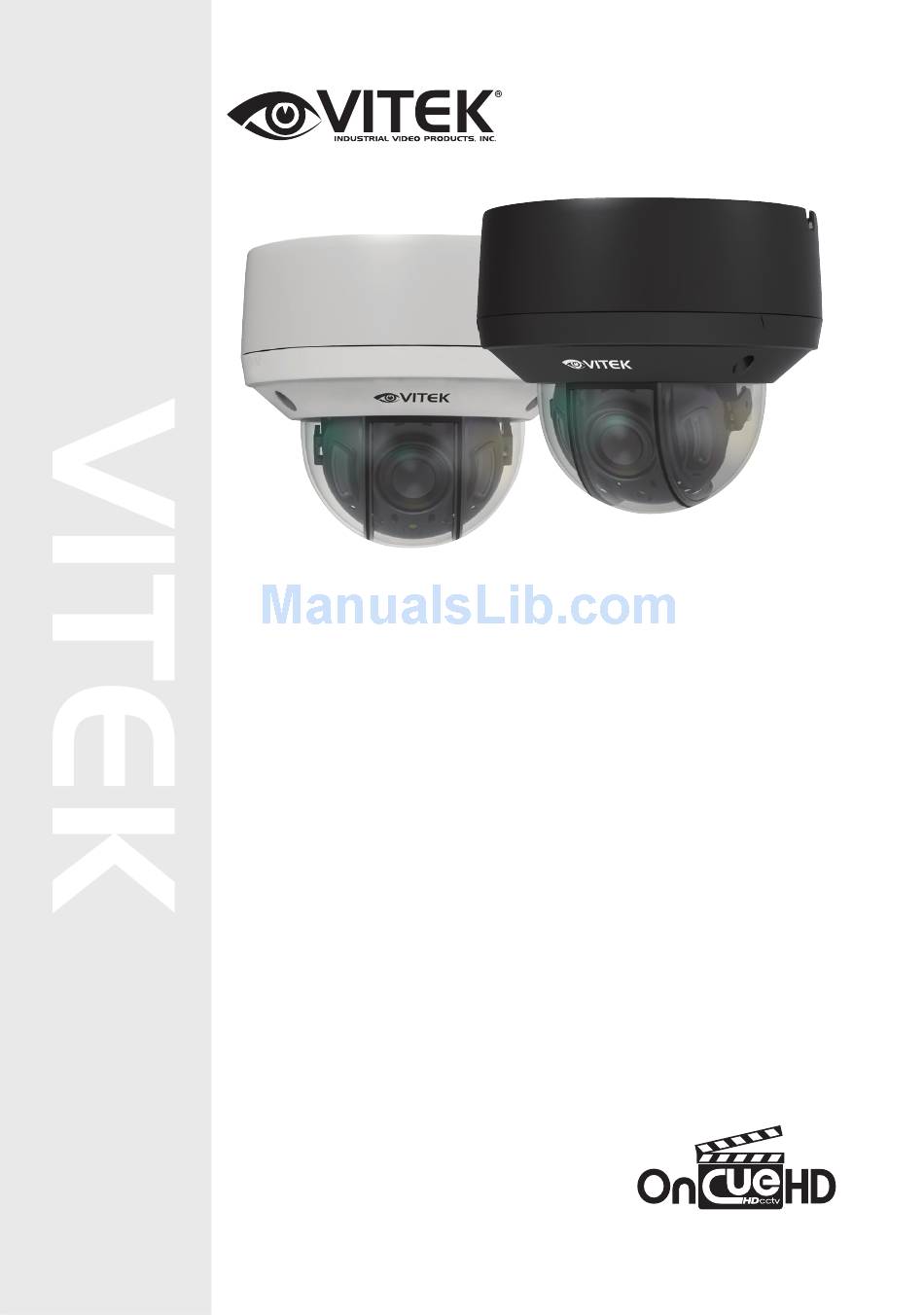

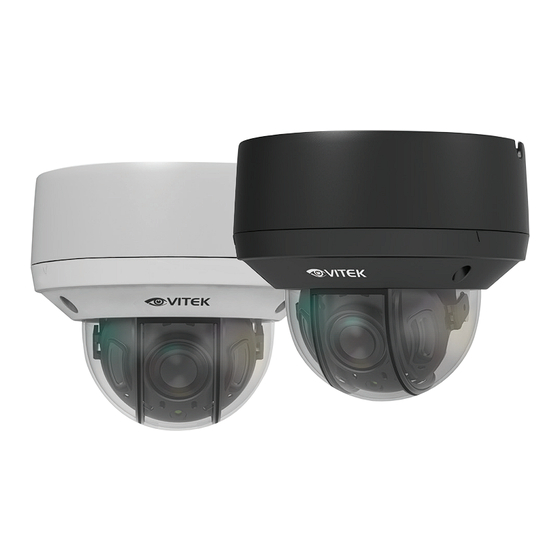

VTD-HOCR6E2812-V
2.1MP HD-SDI / EX-SDI IP68 Vandal
Resistant WDR IR Varifocal Dome Camera
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-HOCR6E2812-V
Summary of Contents for Vitek VTD-HOCR6E2812-V
- Page 1 VTD-HOCR6E2812-V 2.1MP HD-SDI / EX-SDI IP68 Vandal Resistant WDR IR Varifocal Dome Camera FEATURES: • 1/2.9” Sony® Progressive Scan CMOS (IMX222) • 2.1 MegaPixel with Full 1080p/720p HD-SDI (SMPTE292M) / EX-SDI Output • Six (6) High Power 850nm IR LEDs with up to 160’ foot range •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. - Page 3 Safety Precaution NOTICE • The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. • Avoid installing in areas where shock or vibration may occur. • Pay attention to safety when running the connection cables and make sure that the cables are not subject to heavy loads, kinks, moisture or damage.
-
Page 4: Table Of Contents
Contents p. 2~3 Safety Precaution p. 4 Contents p. 5 Dimensions p. 6 Installation Instructions p. 7 Zoom & Focus Pan & Tilt p. 8 Attaching the Dome p. 9 Using the OSD Controller p. 10 Menu Set Up p. 10-24 Operating Instructions p. -
Page 5: Dimensions
Dimensions (unit : inches) 3.94” 5.79” 4.75” 2.89”... -
Page 6: Installation Instructions
Installation Instructions The Installation method is the same for the Varifocal and Fixed lens camera. The product dimensions are the same for either camera. 1. Place the mounting template at the installation position and drill the ceiling or wall if needed. 2. -
Page 7: Zoom & Focus
Installation Instructions Zoom & Focus (Varifocal) 1. While the camera is open using a phillips screw driver loosen the screw to adjust the Zoom & Focus as shown in the images below. 2. Tighten the screw to hold desired Zoom & Focus position. Lock &... -
Page 8: Attaching The Dome
Installaton Instructions Attaching the Dome There are 2 locations of the Hemisphere Guide in the IR dome cover. 1. To attach the dome cover line up the Hemisphere Guides as shown below. 2. Attach the dome cover to the dome base unit and tighten the assembly screws using the torque wrench. -
Page 9: Using The Osd Controller
Operating Instructions Using OSD controller • Setup menu can be accessed and controlled by OSD control joy stick on the inside of camera unit. • EX-SDI / HD-SDI switch is located on the inside of camera unit. OSD control EX-SDi / HD-SDI Switch... -
Page 25: Specifications
Detailed Specifications 1/2.9” Sony® Progressive Scan CMOS (IMX222) Sensor 2.1 MegaPixel (1080p / 720p) Resolution More than 52 dB (AGC Off) Video Output Selectable: 1x HD-SDI (BNC) / EX-SDI (BNC) and 1x SD CVBS (BNC) IR Illuminators 6 High Power IR LEDs IR Color Temp. - Page 26 CONSIDER THESE OTHER GREAT PRODUCTS FROM VT-HDOCE Series On Cue Series 4, 8, and 16 Channel Real Time 1080p EX-SDI Digital Video Recorders • 4, 8 OR 16 CH EX-SDI / Analog Inputs (hybrid) with Full 1080p Camera Support • Now Supporting Cable distance of up to 1000’ using RG59!* •...
-
Page 27: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning. - Page 28 Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 June 2015 WWW.VITEKCCTV.COM...
