Installation
5.2.3 Mounting the measuring device
‣

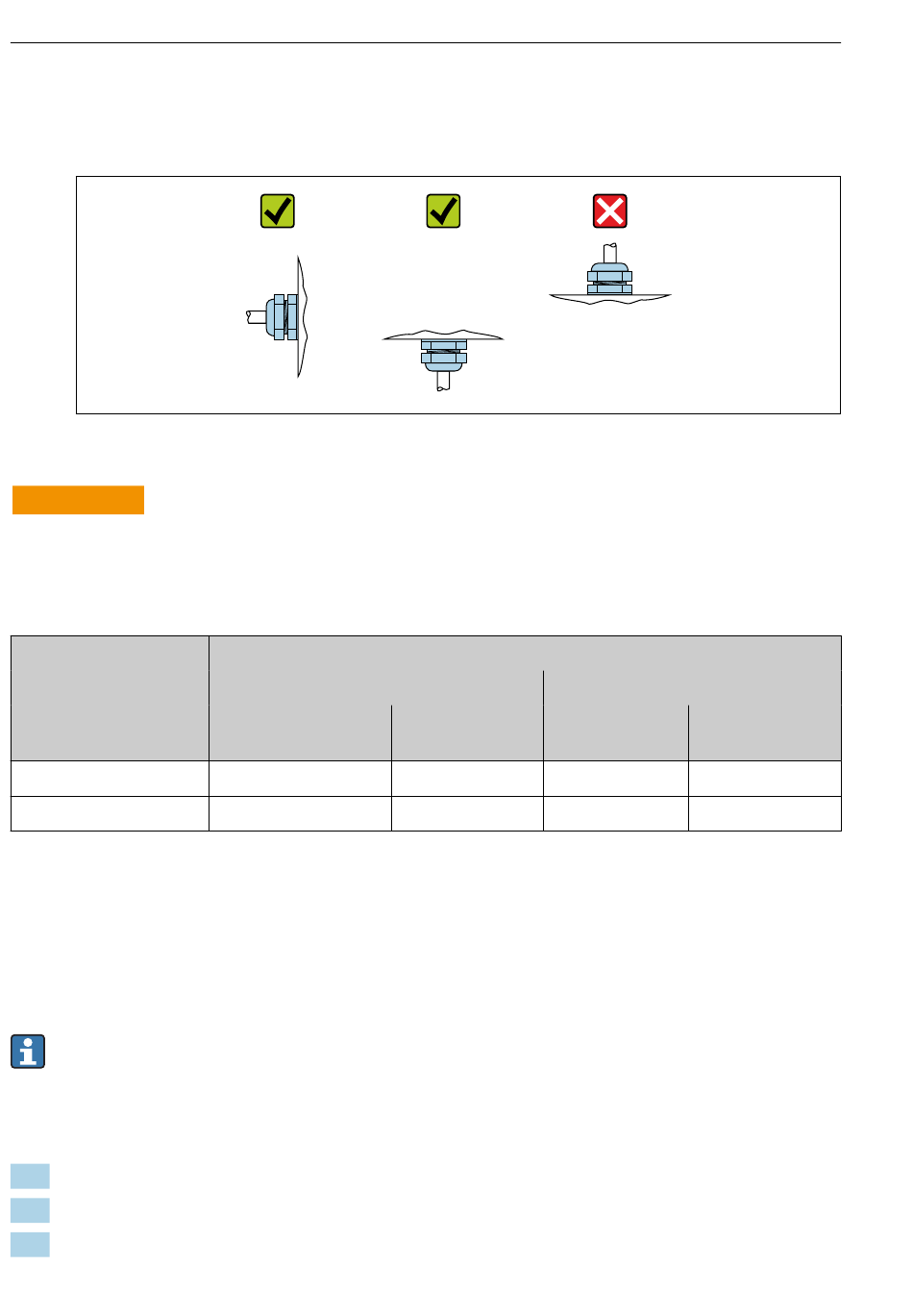

Install the measuring device or turn the transmitter housing so that the cable entries do
not point upwards.

5.2.4 Mounting the sensor
WARNING
L
Risk of injury when mounting the sensors and strapping bands!
‣
Due to the increased risk of cuts, wear suitable gloves and protective goggles.
Sensor configuration and settings
DN 15 to 65 (½ to 2½")
Strapping band
2 traverses
[mm (in)]
1)
Sensor distance
–
1) Depends on the conditions at the measuring point (measuring pipe, medium etc.). The dimension can be
determined via FieldCare or Applicator. See also the Result sensor distance / measuring aid parameter in the
Measuring point submenu
2) Only up to DN 600 (24")
Mounting types
Sensor holder with U-shaped screws
Can be used for
• Measuring devices with measuring range DN 15 to 65 (½ to 2½")
• Mounting on pipes DN 15 to 32 (½ to 1¼")
Procedure:
1. Disconnect the sensor from the sensor holder.
2. Position the sensor holder on the measuring pipe.
3. Fit the U-shaped screws through the sensor holder and lightly grease the thread.
16
Strapping band
1 traverse
[mm (in)]
1)
Sensor distance
Wire length →  27
DN 50 to 4000 (2 to 160")
2 traverses
[mm (in)]
1)
Sensor distance Sensor distance
1) 2)
Measuring rail Wire length
Proline Prosonic Flow P
Welded bolt
1 traverse 2 traverses
[mm (in)] [mm (in)]
1)
Sensor distance
Measuring rail
Endress+Hauser
A0029263
1)
