5.6. Searching for Zones (If Applicable)

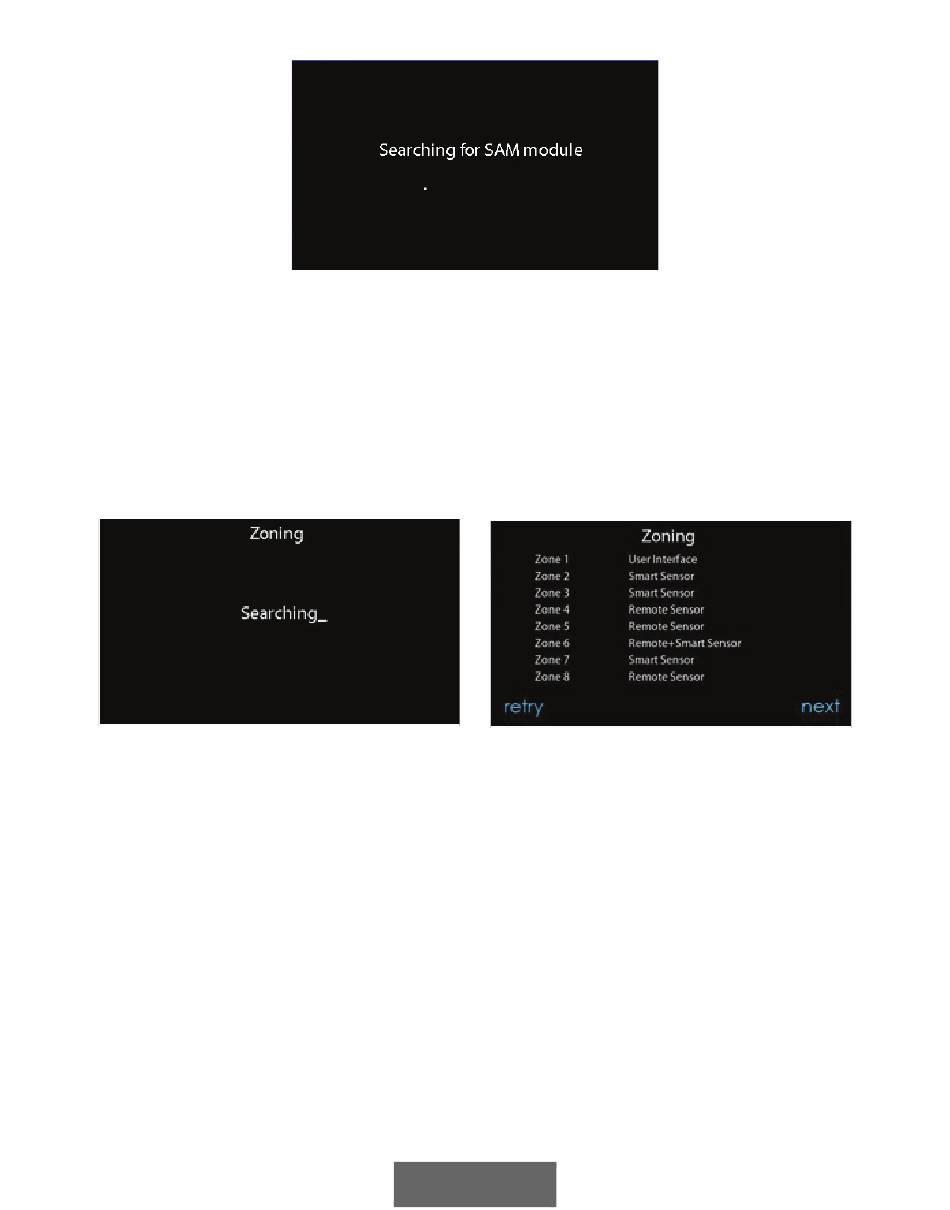

"Zoning - Searching" will appear on the screen to determine if any zones are present. The
screen will show Zone 1, Zone 2, etc. and indicate all zones having either a Remote Room
Sensor, or smart sensors associated with them. If the system contains smart sensors, they must
be assigned a zone number before continuing. See the Smart Sensor Installation Instructions on
how to assign Smart Sensors to their respective zones. After each zone has been identified,
touch NEXT.
A12185

5.7. Filter Type Selection

The installer will next be prompted to select the air filter type installed with the Evolution
System. After the selection is made, touch NEXT.
• Air Filter: 1-in. to 4-in. media filter
• EAC: high voltage electronic air cleaner
• Air Purifier: Evolution Series or Preferred™

5.8. Humidifier Installation

Next, the installer will be prompted to select whether a humidifier is installed in the system.
Select YES or NO, then touch NEXT.
