5.6. Searching for Zones (If Applicable)

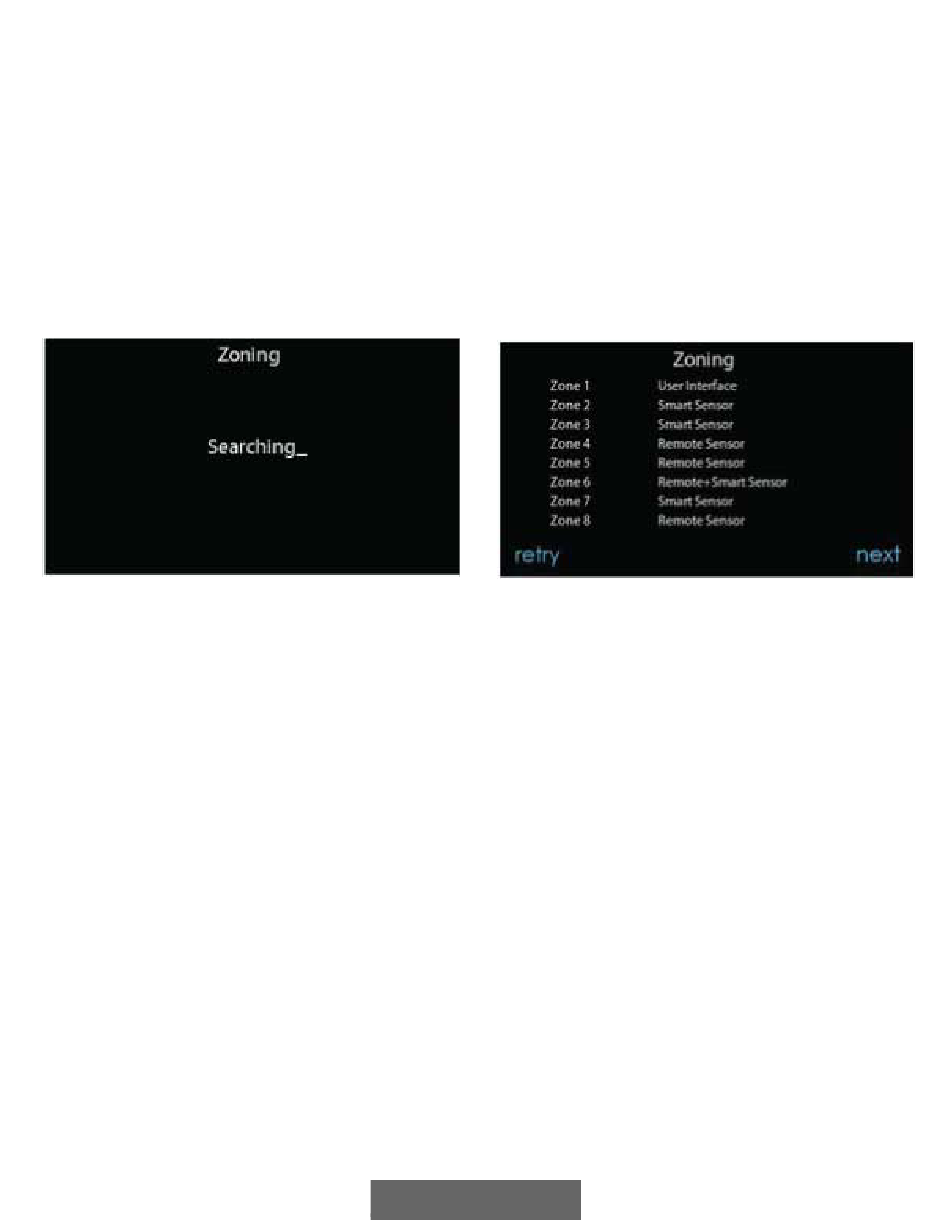

"Zoning - Searching" will appear on the screen to determine if any zones

are present. The screen will show Zone 1, Zone 2, etc. and indicate all

zones having either a Remote Room Sensor, or smart sensors associated

with them. If the system contains smart sensors, they must be assigned a

zone number before continuing. See the Smart Sensor Installation

Instructions on how to assign Smart Sensors to their respective zones.

After each zone has been identified, touch NEXT.

A12185

The installer will next be prompted to select the air filter type installed

with the Evolution System. After the selection is made, touch NEXT.

• Air Filter: 1-in. to 4-in. media filter

• EAC: high voltage electronic air cleaner

• Air Purifier: Evolution Series or Preferred™

Next, the installer will be prompted to select whether a humidifier is

installed in the system. Select YES or NO, then touch NEXT.
