6.6.3. Evacuation

Because this system has an EXV for the heating expansion device, additional steps must be
taken to open the EXV if the heat pump unit must be evacuated for service reasons. If the EXV
is not open when pulling a vacuum or recovering refrigerant from the heat pump unit, extended
evacuation time may be required and/or inadequate vacuum obtained. The control has
provisions to open the EXV for refrigerant recovery and/or evacuation.
• Set desired time period. Default time period for procedure is 120 minutes.
• Touch START on Evolution System Control or service tool to open the valve.
• Begin evacuation or refrigerant recovery as required for the procedure after control indicates
the EXV is open. Power may be removed from heat pump after the control indicates
"READY TO EVACUATE."

6.6.4. EXV Position

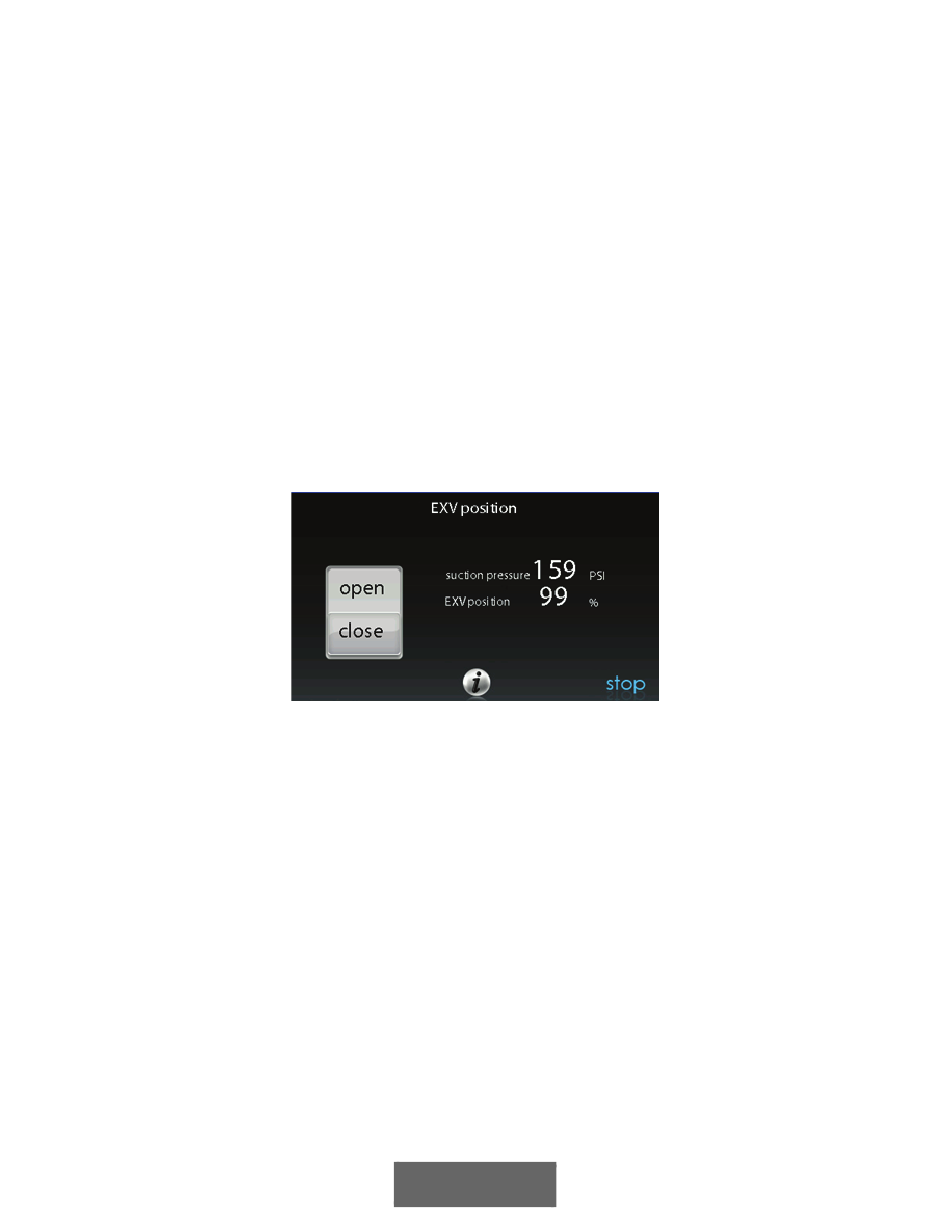

This screen allows the installer to set the EXV position and monitor the suction pressure.
NOTE: Screen data will vary based on unit installed.

6.7. Dealer Logo

NOTE: More detailed information can be found on HVACPartners.com under: Products and
Dashboards > Product Catalog > Residential Controls < Systems
SYSTXBBECC01-B > Documents > Marketing > Miscellaneous > Evolution Connex Control
Dealer Logo Application - Instructions.
Touch DEALER LOGO to upload the dealer logo and contact information from a micro SD
card connected to the Evolution Connex Control. The "Dealer Logo Application" PC/MAC
Desktop
www.MyEvolutionConnex.Bryant.com/Evolution/downloads is required to properly format the
dealer logo and contact information for use on the wall control.
Along with the dealer logo (if any), three lines of dealer information are provided on the wall
control:
Dealer name (50 characters, max)
application download
50
A14233
Controls >
available at
