5.9. Ultraviolet Lights Installation

Next, the installer will be prompted to select whether ultraviolet lights are installed in the
system. Select YES or NO, then touch NEXT.

5.10. Equipment Summary

The equipment summary screen will appear after accessories have been selected. This screen
will give a summary of all equipment automatically found or manually selected. If an incorrect
selection was made, touch RE-INSTALL to restart the installation process. See the Evolution
System HVAC equipment Installation Instructions for more details, as provided.

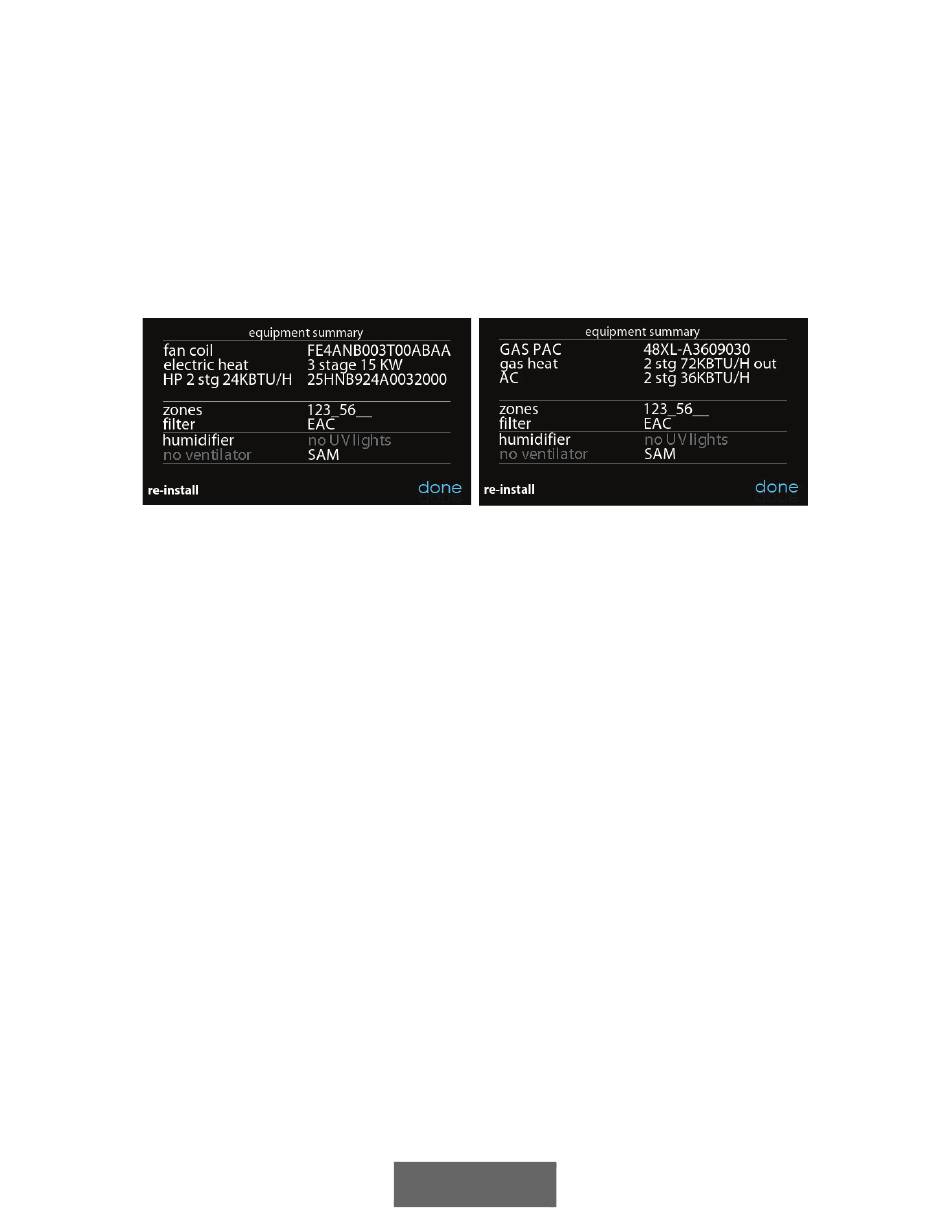

Example: SPP Equipment Summary Screen
A13120

5.11. Airflow Verification Check

The airflow verification check screen will appear next, as the system performs this operation.
This process will take about 1-1/2 minutes to complete. When completed, a screen will appear
displaying the results of the check.
If the system has an indoor unit equipped with a previous-version CFM-controlled blower
system the screen will display the static pressure (in inches of water) across the equipment at the
expected highest delivered airflow. If the blower RPM is greater than 1200, a warning will
appear, but equipment operation and the TrueSense™ dirty filter detection operation will not be
affected. Press NEXT when the airflow verification check is complete.
If the system has an indoor unit equipped with an updated-version CFM-controlled blower
system (typically found in equipment manufactured after November 2017), the screen will
display the static pressure (in inches) across the equipment at a pre-determined target airflow
CFM. If the achieved (actual) CFM is unacceptably below the target CFM, a yellow notice will
appear to invite the user to see the associated information screen; equipment operation and the
TrueSense™ dirty filter detection operation will not be affected. Press NEXT when the airflow
verification check is complete.
NOTE: The airflow verification check occurs at initial installation, or when FULL
INSTALLATION or AIRFLOW VERIFICATION TEST are selected in the
INSTALLATION & SERVICE menu.
