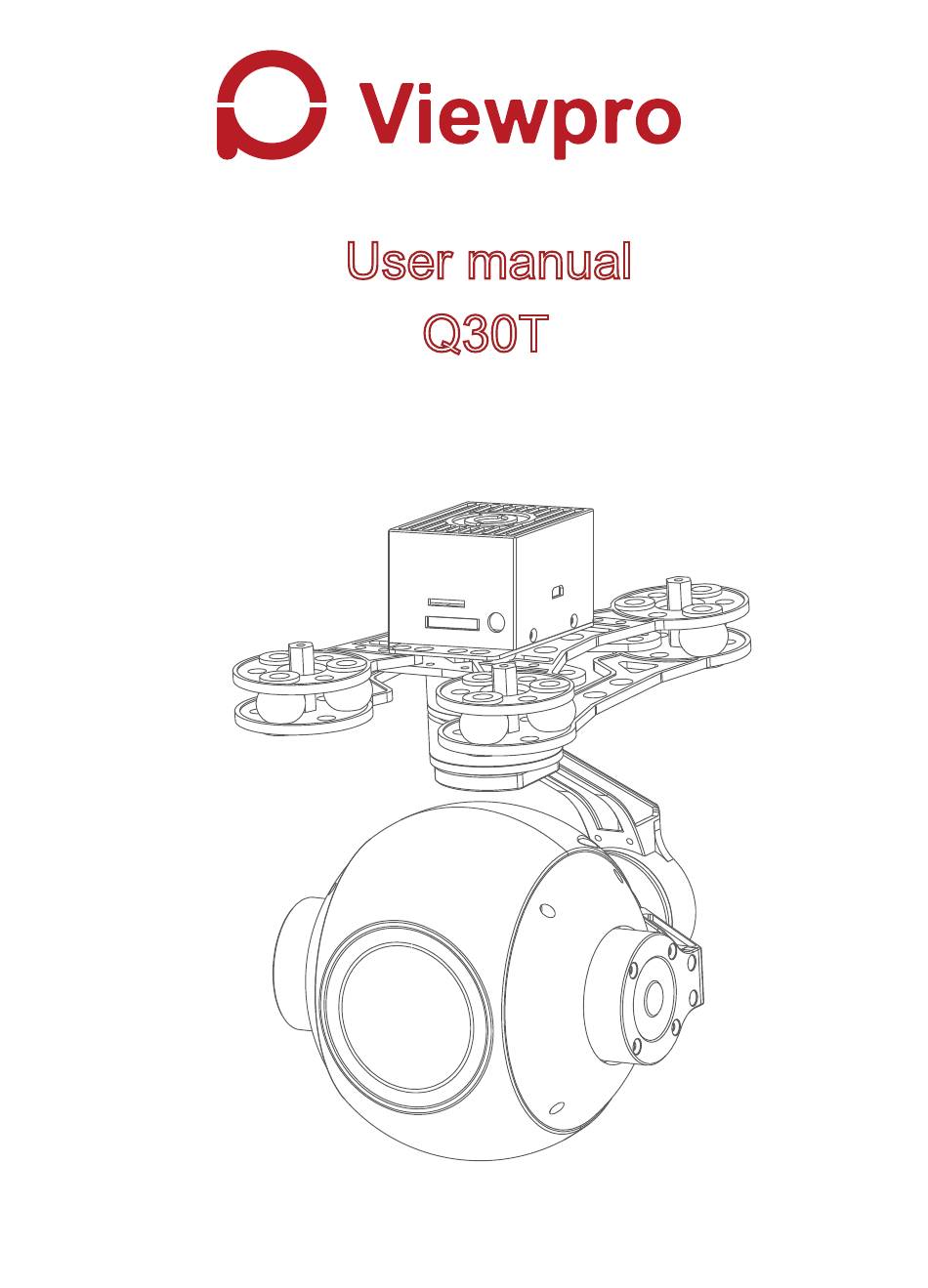

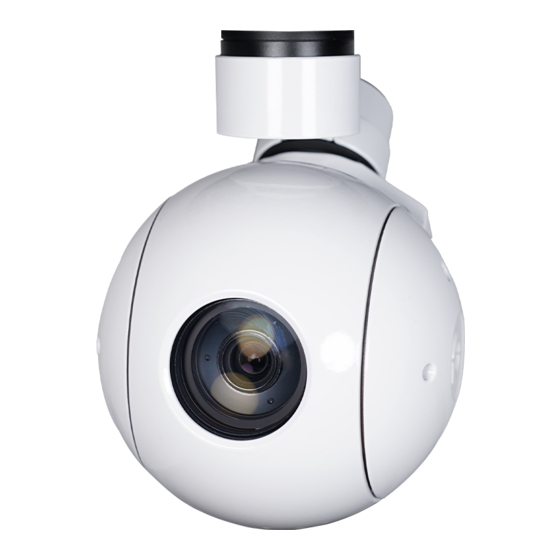

- Page 1 User manual Q30T 30x Optical Zoom Object Tracking Camera Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Q30T Pinpoint-precision Gimbal 1.Gimbal introduction..................2 2.Object tracking function ................2 3.Gimbal description ..................3 4.Packing list ....................4 5.Gimbal dimension..................4 6.Installing....................5 7.Mechanics@Electronic characteristics............5 8.Working characteristics................5 9.Gimbal’s signal wire box ...............6 10.Gimbal’s connection of control box and wiring instructions.......7 30x Starlight Camera 1.30x starlight camera introduction .............11 GPS Information Display and Serial Port Control Wiring Diagram 1.GPS and Connection of control box ............13... -
Page 3: Gimbal Introduction
FOC motor control technology, adopts pinpoint-precision encoder in each motor. The speed of Q30T gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Gimbal Description
Gimbal Description [1]Gimbal fixed copper cylinder [5] YAW axis motorr [2] Damping ball [6] Roll axis motor [3] Upper damping board [7] Pitch axis motor [4] Lower damping board [8] HD zoom camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 M3*5mm button head hexagon screw*12 ( fixed copper cylinder and damping plate) Copper cylindersr*4 Damping balls*12 Gimbal Dimension Unit ：mm Z-3T... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S 330mA@12V Input voltage Idle current Working Dynamic current 450mA@12V -20℃ ~ +80℃ environment temp 720g Size L147 *W 121*H154.8mm Weight Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±150°... -
Page 7: Gimbal's Signal Wire Box
Gimbal’s Signal Wire Box... -
Page 8: Gimbal's Connection Of Control Box And Wiring Instructions
Connection of Control Box and Wiring Instruction Z-3T controller box HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 32G, class10 FAT 32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N... - Page 9 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1 pitch up 2 pitch stop We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down...
- Page 10 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 11 Pic/ Rec picture / Start record, stop record 1 Switch 2 to 1: Start record / stop record. Start record, the OSD display rec hh:mm:ss ; 2 Stop record, the OSD display STBY. 3 Switch 2 to 3: Take a picture. OSD display ’REC IMG’...
-
Page 12: 30X Starlight Camera Introduction
30x Starlight Camera Introduction FCB-EV7520 Imager sensor 1/2.8-typeExmor R CMOS Lens Picture quality Full HD 1080p (1920 x 1080) Colour: 0.01 lx(F1.6, AGC on, Minimum 1/30 s) illumination* Digital zoom 12x (360x with optical zoom) ● Defog Image sensor 1/2.8-type Exmor R CMOS Image sensor(Number Approx.2.13 Megapixels of effective pixels) - Page 13 FCB-EV7520 Shutter speed 1/1 s to 1/10,000 s, 22 steps Sync system Internal Auto, Manual, Priority mode Exposure control (shutter priority & iris priority), Bright, EV compensation, Slow AE Backlight compensation Aperture control 16 steps Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto), One-push, Manual...
-
Page 14: Gps Information Display And Serial Port Control Wiring Diagram
GPS Information Display and Serial Port Control Wiring Diagram S.bus/Rx To use the serial port function, please use the jumper cap to connect RX1 and RX2, TX1 and TX2. External serial port TX connect with TX3. External serial port RX connect with RX3.
