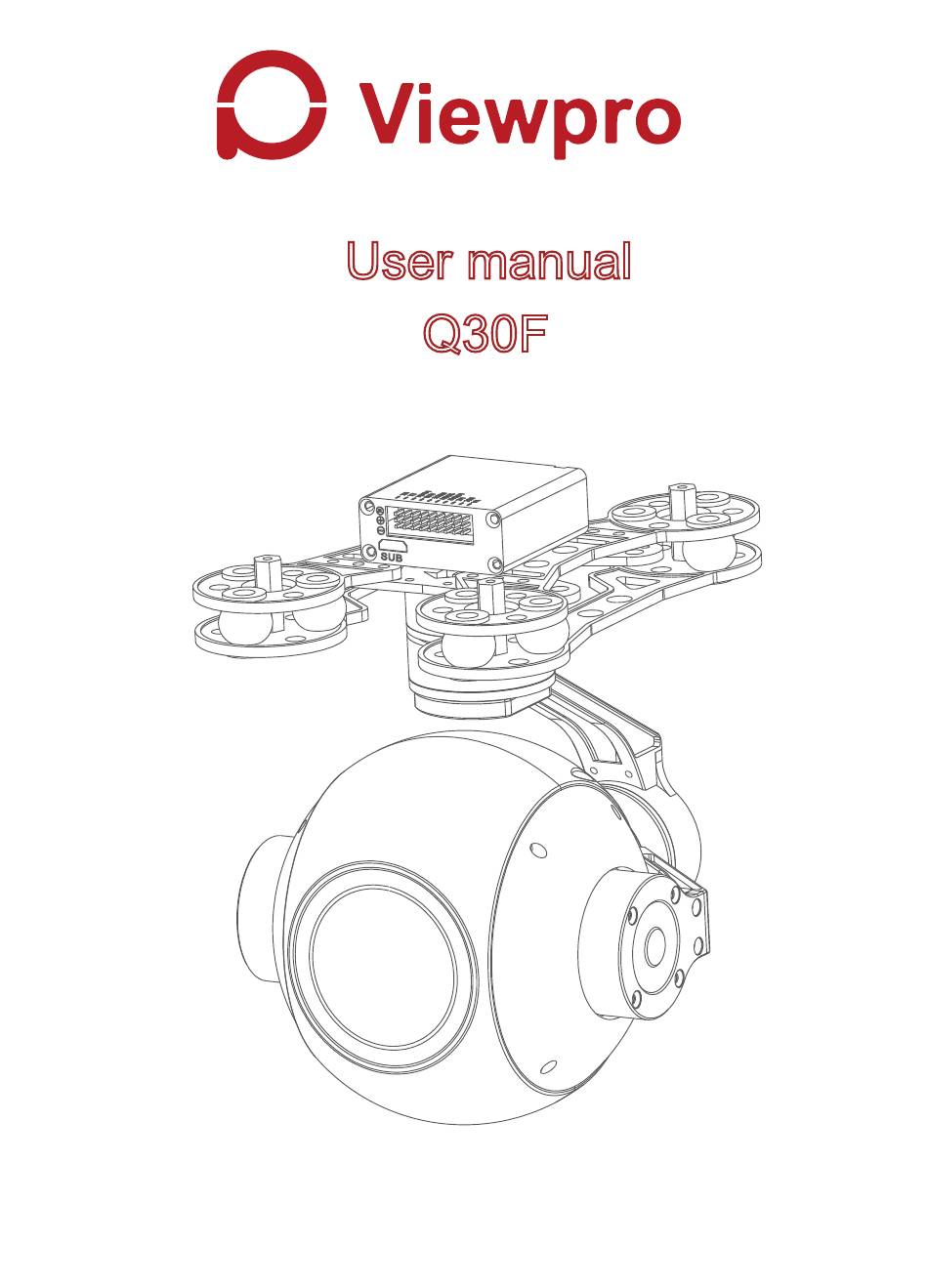

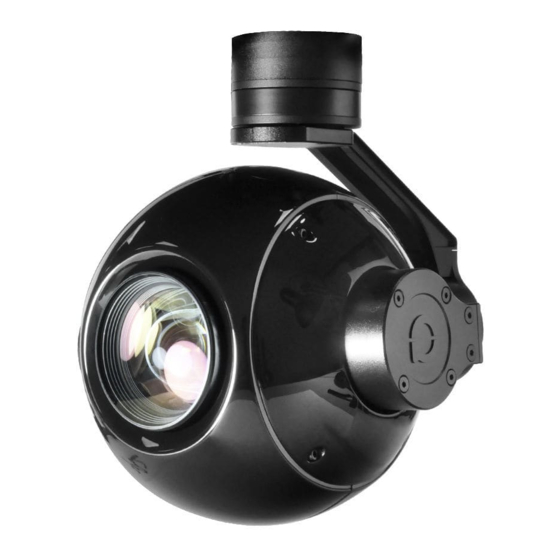

- Page 1 User manual Q30F 30x Optical Zoom Camera Gimbal S U B Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Q30F Pinpoint-precision Gimbal 1.Gimbal introduction ……………………………………………………………2 2.Object tracking function (Optional)……………………………………………2 3.Gimbal description …………………………………………………………… 3 4.Packing list………………………………………………………………………4 5.Gimbal dimension………………………………………………………………4 6.Installing…………………………………………………………………………5 7.Mechanics@Electronic characteristics………………………………………5 8.Working characteristics ………………………………………………………5 9.Connection of control box and wiring instructions…………………………6 Q30F Camera 1.Camera introduction ..................10 2.Parameter index ..................10... -
Page 3: Gimbal Introduction
FOC motor control technology, adopts pinpoint-precision encoder in each motor. The speed of Q30F gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Gimbal Description
Gimbal Description S U B [1]Gimbal fixed copper cylinder [5] YAW axis motorr [2] Damping ball [6] Roll axis motor [3] Upper damping board [7] Pitch axis motor [4] Lower damping board [8] HD zoom camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 SU B M3*5mm button head hexagon screw*12 ( fixed copper cylinder and damping plate) Copper cylindersr*4 Damping balls*12 Gimbal Dimension Unit ：mm... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S 330mA@12V Input voltage Idle current Working Dynamic current 450mA@12V -20℃ ~ +80℃ environment temp 670g Size L147*W121*H154.8mm Weight Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±150°... -
Page 7: Connection Of Control Box And Wiring Instructions
Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SU B SD card: max 32G, class10 FAT 32 or exFAT format PWM in 5V output USER BOARD TTL 9600/8/1/N... - Page 8 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1 pitch up 2 pitch stop We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down...
- Page 9 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 10 Pic/Rec ： picture / start record， stop record Switch 2 to 1 camera mode change. Picture mode:the number is quantity of SD card can storage; Record mode:the time is recording time from start record. Switch 2 to 3: A) take a picture. B) Start record / stop record Multi：...
-
Page 11: Camera Introduction
Camera Introduction Q30F has 4mega effective pixel, supports 30x optical autofocus, possess HD 1080P video.There are two video streams in camera, one is 1080P 30FPS, local H.264 compression, stored in the device SD card, another video output 1080p 60FPS HDMI HD... -
Page 12: Functional Characteristics
Functional Characteristics Zoom Range Zoom focal length f=4.5~135mm, zoom ranges up to 30 times, exhibiting image detail Perfectly. The Speed of Focusing Design for UAV aerial photography , according to aerial characteristics, using fast focus algorithm, focus time <1s. Wide Dynamic Adopt 105 dB wide dynamic range, in the presence of backlight or strong light, the view of the over bright and over dark regions can still be captured at the same time.
