- Page 1 QUICK INSTALLATION GUIDE 2000620 Rev A | Release Date - June 2016...

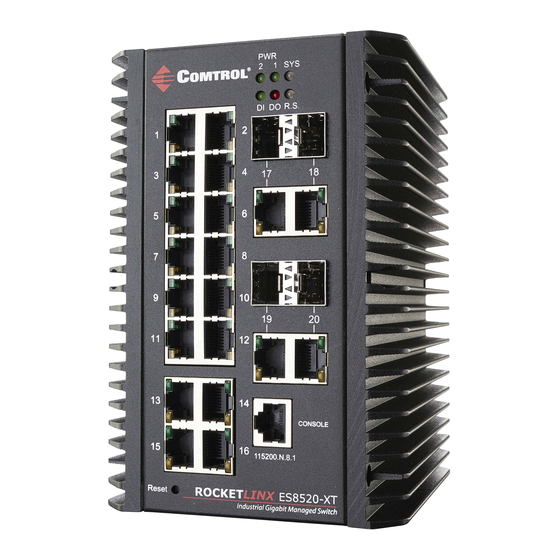

- Page 2 INTRODUCTION The RocketLinx ES8520-XT is a 20 port managed industrial switch that provides: • Sixteen 10/100BASE-TX ports • Four Gigabit RJ45/SFP combo ports. The SFP ports support 100BASE-FX and Gigabit fiber. The ES8520-XT provides features needed for network control in an industrial network environment.
- Page 3 The relay contact supports up to 1A at 24VDC. The relay output (DO) is controlled by the pre-defined operating rules. To activate relay output function, refer to the RocketLinx ES8520-XT User Guide. Wiring the Digital Input (DI) The Digital Input (DI) contacts are on the terminal block connector on the bottom of the ES8520-XT.
- Page 4 The DI accepts DC type signal and supports isolated input circuit with digital high level input 11VDC to 30VDC and digital low level input 0VDC to 10VDC. . Make sure that you remove the ground screw before insulation/Hi-pot testing. Mounting the ES8520-XT You can mount the ES8520-XT to a DIN rail.
- Page 5 Digital Diagnostic Monitoring, which can assist you in monitoring the quality of the optical signal, and diagnose the transmission. This function is only available for Comtrol certified DDM SFP transceivers, and does not support third party transceivers. Cross-connect the transmit channel at each end to the receive channel at the opposite end as illustrated in the figure.
- Page 6 PROGRAMMING THE IP ADDRESS Configure the IP address using one of the following methods: • PortVision DX automatically detects Comtrol Ethernet attached products physically attached to the local network segment so that you can configure the network address, upload firmware, and manage.
- Page 7 Start PortVision DX. PortVision DX can be started from Start --> All Programs --> Comtrol --> PortVision DX. Click the Scan button. Select the Comtrol product families that you want to locate and click the Scan button. Right-click the ES8520-XT in the Device List pane (lower) that you want to configure and click Properties.
- Page 8 Enter admin for both the user name and the password when prompted. Use the web interface to configure your device as needed for your network. COMTROL CUSTOMER SERVICE You can use one of the following methods to contact Comtrol. Contact Method Web Address or Phone Number Support http://www.comtrol.com/support...
