Comtrol ROCKETLINX ES8108 Series Quick Installation Manual
Industrial
Hide thumbs
Also See for ROCKETLINX ES8108 Series:
- User manual (20 pages) ,
- Quick installation manual (8 pages) ,
- Quick installation manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Comtrol ROCKETLINX ES8108 Series
Summary of Contents for Comtrol ROCKETLINX ES8108 Series
- Page 1 ROCKETLINX ES8108 Industrial Ethernet Switch Quick Installation Guide ES8108 | ES8108F www.comtrol.com 2000517 Rev. C...

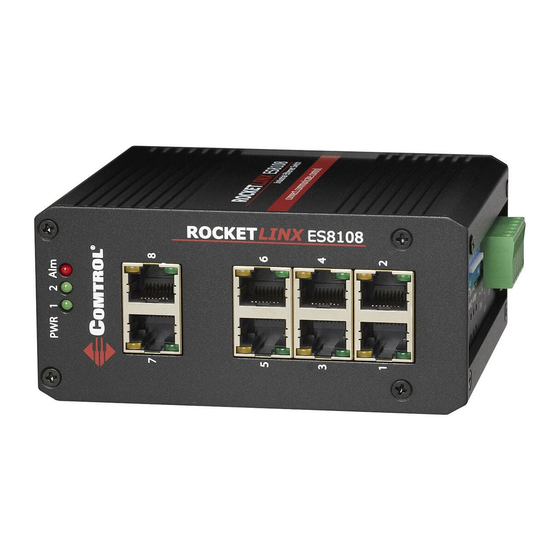

- Page 2 Introduction The RocketLinx ES8108 and ES8108F series of industrial Ethernet switches conform to IEE802.3 and 802.3u standards, which includes the following models: ES8108 supports eight 10/100BASE-TX ports ES8108F-M (multi-mode) supports six 10/100BASE-TX and two 100BASE-FX fiber ports ES8108F-S (single-mode) supports six 10/100BASE-TX and two 100BASE-FX fiber ports The RocketLinx ES8108/ES8108F features an IP30 rated rugged metal housing for operation in harsh environments (-25...
- Page 3 Grounding RocketLinx ES8108/ES8108F There is an earth ground screw on the Earth Ground Screw bottom side of the RocketLinx Alarm Control ES8108/ES8108F. Connect the port 1~8 power earth ground screw of the switch to a Earth Ground grounding surface to ensure safety Warning: Do not connect to AC line –...
- Page 4 Wiring the Relay Output Alarm System The relay alarm output contacts are Maximum 1A current / DC 24V in the middle of the terminal block connector. By inserting the wires Extra Power and setting the DIP switch of System the respective Port Alarm to “ON”, Alarm Control port 1~8 power...
- Page 5 TX A RX B RX A TX B ATTENTION This is a Class 1 Laser/LED product. ！ Don't stare into the Laser/LED Beam. Comtrol Customer Service Contact Method Web Address or Phone Number Support http://www.comtrol.com/pub/en/support Downloads ftp://ftp.comtrol.com/html/ES8108.htm Web Site http://www.comtrol.com Phone 763.957.6000...
- Page 6 Comtrol Corporation +1 763.957.6000 sales@comtrol.com www.comtrol.com...
