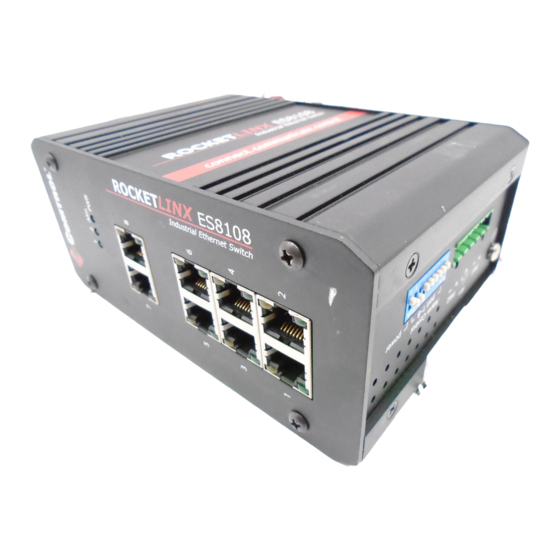

Comtrol ROCKETLINX ES8108 Quick Installation Manual
Hide thumbs
Also See for ROCKETLINX ES8108:
- User manual (20 pages) ,
- Quick installation manual (6 pages) ,
- Quick installation manual (8 pages)
Subscribe to Our Youtube Channel
Related Manuals for Comtrol ROCKETLINX ES8108
Summary of Contents for Comtrol ROCKETLINX ES8108
- Page 1 ROCKETLINX ES8108 Industrial Ethernet Switch Quick Installation Guide ES8108 | ES8108F www.comtrol.com 2000578 Rev. A...
- Page 2 Introduction The RocketLinx ES8108 and ES8108F series of industrial Ethernet switches conform to IEE802.3 and 802.3u standards. This series includes the following models: • ES8108 supports eight 10/100BASE-TX ports • ES8108F-M (Multi-Mode) supports six 10/100BASE-TX and two 100BASE-FX fiber ports •...
- Page 3 AC Power Input Power Supply 10-60VDC (UL Listed) DC Power Output 10-60VDC Dry Relay Output PWR 1 PWR 2 Verify the Power Input requirements on the product label. AC Power Input 12-24AWG Power Supply 10-60VDC (UL Listed) DC Power Output 12-24AWG 10-60VDC If this is a Restricted Access Location installation, make sure that the power...
- Page 4 Wiring the Alarm Relay Output The alarm relay output contacts are in the middle of the terminal block connector. By inserting the wires and setting the DIP switch of the respective Port Alarm to “ON”, the alarm relay output detects any port failures and forms a short circuit. The alarm relay output is “Normal Open.”...
- Page 5 Connecting to the Network Connecting the Ethernet Ports Connect one end of an Ethernet cable into the Ethernet port of the ES8108/ES8108F and the other end to the attached device. All Ethernet ports support auto MDI/MDIX functionality. Switch Router or PC Switch Switch 3 RD+...
- Page 6 Fiber Transceiver Min. Launch Transmit Transmit Receive Receive Power –Max. Mode Cable Type Wavelength Power Power Sensi vity Sensi vity Distance (km) Receive (Min.) (Max.) (Max.) (Min.) Sensi vity 50/125um 1310nm -20dBm -14dBm -31dBm 0dBm 11dBm 62.5/125um Note (below) Single 8-10/125um 1310nm -15dBm...
- Page 7 Optical Fiber Cable Attenuation Fiber Type Wavelength A enua on/km * A enua on/km ** Connector Loss Splice loss Mul -Mode 850nm 3.5dBm 2.5dBm 0.75dBm 0.1dBm 50/125um 1310mm 1.5dBm 0.8dBm Mul -Mode 850nm 3.5dBm 3.0dBm 0.75dBm 0.1dBm 62.5/125um 1310nm 1.5dBm 0.7dBm Single-Mode 1310nm...
- Page 8 8:1. After 8 high priority packets are processed, then 1 low priority packet is processed. Both the ES8108 and ES8108F can examine the specific bits of VLAN Tag and TCP/IP TOS of IPv4 and IPv6. Comtrol Customer Service Contact Method Web Address or Phone Number Support http://www.comtrol.com/pub/en/support...
