- Page 1 ROCKETLINX ES7206-XT Industrial PoE Plus Switch QUICK INSTALLATION GUIDE 2000584 Rev E | Release Date - March 2014...
-
Page 2: Installation Overview

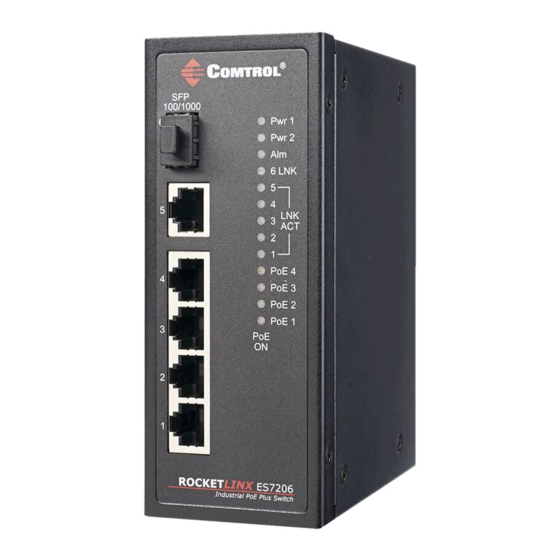

INTRODUCTION The RocketLinx ES7206-XT is an industrial 6-port Gigabit 802.3af/at PoE Voltage Boost Switch. S eetheComtrolwebsiteforproductspecifications. INSTALLATION OVERVIEW YoucanusethefollowinginformationtoinstalltheES7206-XT.TheES7206-XT istobeconnectedtoPoEnetworkswithoutroutingtooutsidetheplant. Wiring the Power Inputs TheES7206-XTprovidesredundantpower,reversepolarityprotection,over- currentprotectionandacceptsapositiveornegativepowersourcebutPWR1 andPWR2mustbeappliedwithpowersourcesofthesamepolarity. Theterminalblockaccepts12-24AWGwire.UseaULlistedpowersupply withtherequiredoutputvoltageof12-36VDCtodeliverIEEE802.3atPoEPlus onallPoEports(Ports1-4).Thepowersupplymustberatedasfollows: • 802.3af-96Watts(Minimum) • 802.3at-168Watts(Minimum) Power Supply AC Power Input... - Page 3 Powershouldbedisconnectedfromthepowersupplybeforeconnectingitto the switch. Otherwise, your screwdriver blade can inadvertently short your terminalconnectionstothegroundedenclosure. 1. InsertthepositiveandnegativewiresintoPWR+andPWR-contacts (PWR1andPWR2).Youcanconnectasinglepowersupplyortwopower supplies depending on your requirements. Ifbothpowerinputsareconnected,theES7206-XTwillbepowered fromthehighestconnectedvoltage.Theunitcanbeconfiguredto signalanalarmforlossofpowerineitherPWR1orPWR2. Tighten the wire-clamp screws to prevent the wires from being loosened. Note: When the ES7206-XT is in operation, caution must be taken to not touch the hot surface of the product enclosure.
- Page 4 Electrical Specifications Value Total PoE Power VIN=12VDC • 60W@-40°to70°C Budget • 55W@70°to75°C VIN=24VDC • 110W@-40°to65°C • 100W@65°to75°C VIN=36VDC • 110W@-40°to65°C • 100W@65°to75°C Operating Temperature -40°to75°C Storage Temperature -40°to85°C Note: Exceeding the recommended power and operating temperatures may result in failures or damage. Wiring the Alarm Relay Output Thealarmrelayoutputordigitaloutput(DO)contactsareontheterminal block connector.
- Page 5 Setting the DIP Switch TheES7206-XThasan8-pinDIPswitchlocatedonthebottompanelto configurethePortLinkAlarmfortheEthernetports.Thefollowingtable showstheDIPswitchnumbermappingtothecorrespondingoptions. Port Port Port Port Port Port DIP1 DIP2 DIP3 DIP4 DIP5 DIP6 DIP7 DIP8 ThistableshowstherelationshipbetweentheDIPswitchnumber,position, andfunction. Switch Position Function Enables port failure alarm for corresponding port OFF(Default) Disablesportfailurealarmforcorrespondingport Enables power event alarm OFF(Default) Disablespowereventalarm EnablesSFPportfor100BASE-FX OFF(Default) Supports Gigabit SFP in SFP port Note: After connecting the SFP or changing the speed through DIP 8, cycle the...
- Page 6 Mounting the ES7206-XT TheDINrailclipisattachedtotheES7206-XT. 1. InserttheupperendofDINrailclipintothebackofDINrailtrackfrom its upper side. LightlypushthebottomofDINrailclipintothetrack. VerifythattheDINrailclipistightlyattachedonthetrack. Note: When the ES7206-XT is in operation, caution must be taken to not touch the hot surface of the product enclosure. Connecting the RJ45 Ethernet Ports Connect one end of an Ethernet cable into the Ethernet port of the ES7206-XTandtheotherendtotheattachednetworkingdevice: •...
-
Page 7: Led Indicators
(forexample,switch,hub,orworkstation)arelessthan100meters(328 feet).YoushoulduseCategory5cableorhigher. Connecting the SFP Port You can connect an SFP transceiver to Port 6. Comtrol recommends using Comtrol-approved SFP transceivers. Cross-connect the transmit channel at each end to the receive channel at the opposite end as illustrated in the figure. - Page 8 Theportlinkisnotactive Green Anetworkdeviceisattached Blinks ThereisavalidEthernettransmit/receiveactivity to/from the connected network device. Theportlinkisnotactive COMTROL CUSTOMER SERVICE You can use one of the following methods to contact Comtrol. Contact Method Web Address or Phone Number Support http://www.comtrol.com/support Downloads ftp://ftp.comtrol.com/html/default.htm Website http://www.comtrol.com Phone +1763.957.6000...
