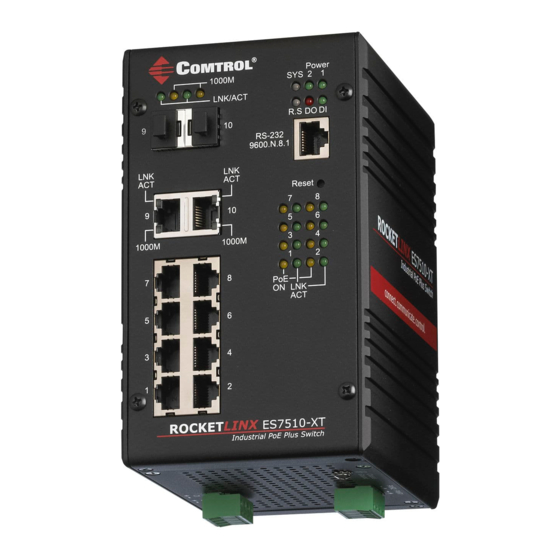

- Page 1 ROCKETLINX ES7510-XT Industrial 10-Port Managed PoE Plus Switch QUICK INSTALLATION GUIDE 2000569 Rev D | Release Date - June 2016...
-
Page 2: Installation Overview
INTRODUCTION The RocketLinx ES7510-XT is a ten port managed PoE Plus switch that provides: • Eight 10/100BASE-TX PoE Plus ports that are IEEE 802.3af (15.4W) and IEEE 802.3at two-event and IEEE 802.3at LLDP (30W) compliant. The product also supports a forced powering feature to support non- standard Power Devices (PDs). - Page 3 The relay output (DO) is controlled by the pre-defined operating rules. To activate relay output function, refer to Trigger Digital Input the RocketLinx ES7510-XT User Guide. Switch 24VDC 1 = High Output: 11-30VDC 0 = Low Output: 0-10VDC...
- Page 4 external DC type signal input and can be configured to send alert message through Ethernet when the signal is changed. The DI accepts DC type signal and supports isolated input circuit with digital high level input 11VDC to 30VDC and digital low level input 0VDC to 10VDC. Do not apply a higher voltage than the specification;...
- Page 5 Comtrol-approved SFP mini GBIC transceivers. The SFP ports also provide Digital Diagnostic Monitoring, which can assist you in monitoring the quality of the optical signal, and diagnose the transmission. This function is only available for Comtrol certified DDM SFP transceivers, and does not support...
-
Page 6: Led Indicators
PoE is disabled for that port PROGRAMMING THE IP ADDRESS Configure the IP address using one of the following methods: • PortVision DX can be downloaded from http://downloads.comtrol.com/ rocketlinx/portvision_dx • Web browser • Telnet... - Page 7 Start PortVision DX. PortVision DX can be started from Start --> All Programs --> Comtrol --> PortVision DX. Click the Scan button. Select the Comtrol product families that you want to locate and click the Scan button. Right-click the ES7510-XT in the Device List pane (lower) that you want to configure and click Properties.
-
Page 8: Feature Configuration
Enter admin for both the user name and the password when prompted. Use the web interface to configure your device as needed for your network. COMTROL CUSTOMER SERVICE You can use one of the following methods to contact Comtrol. Contact Method Web Address or Phone Number Support http://www.comtrol.com/support...
