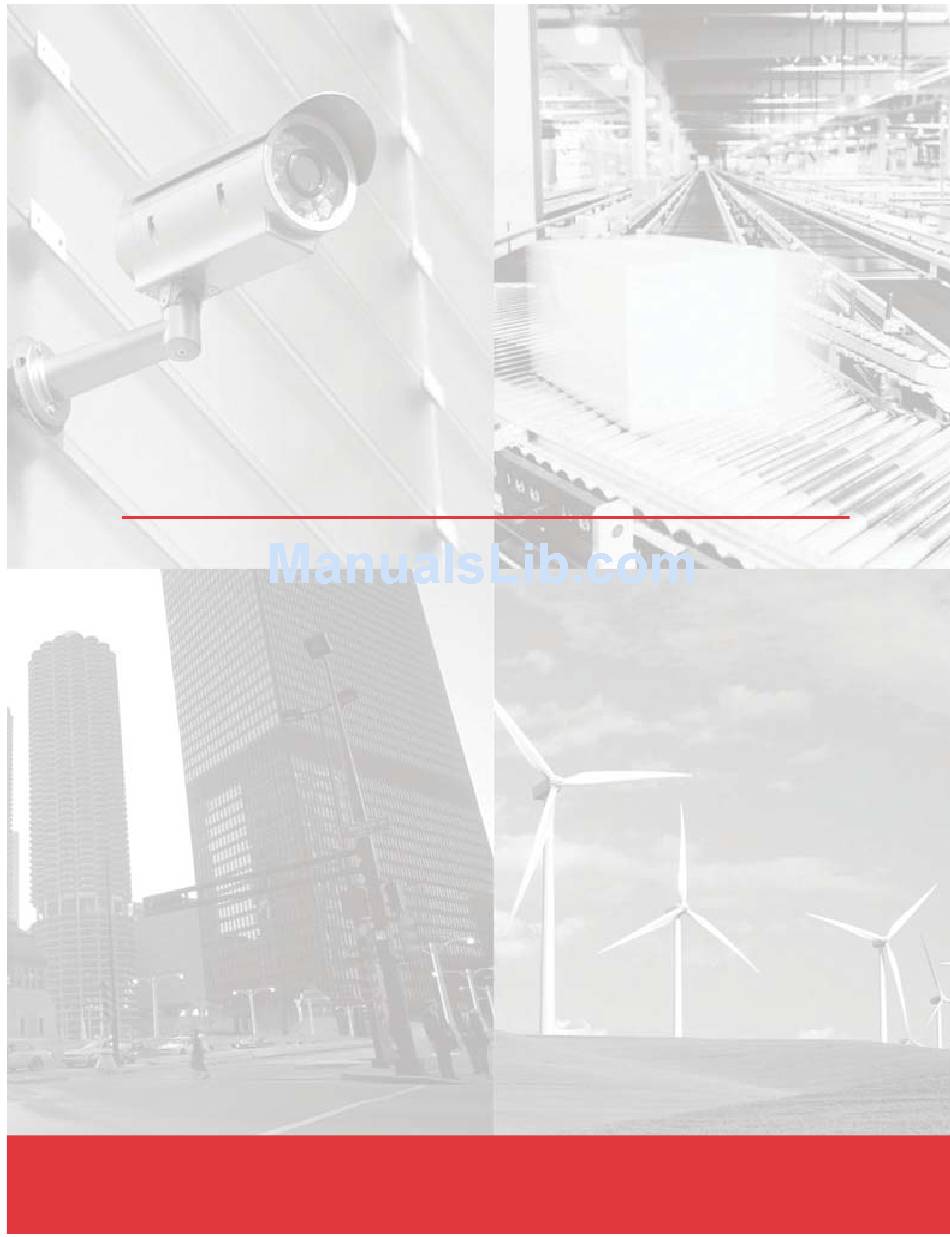

- Page 1 ROCKETLINX ES7105 Industrial PoE Switch Quick Installation Guide www.comtrol.com 2000538 Rev C...
-
Page 2: Mounting The Unit

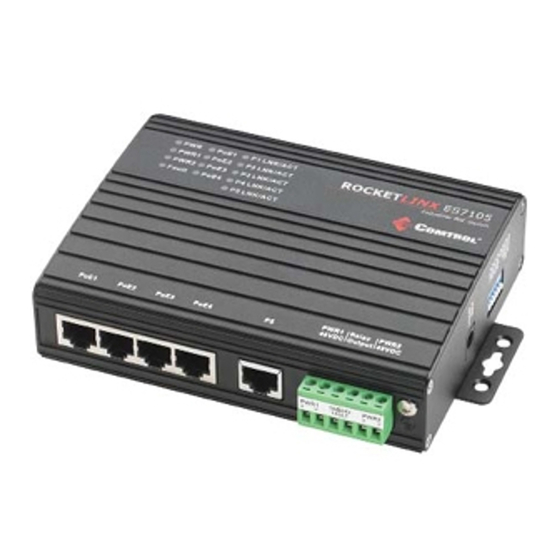

Introduction The RocketLinx ES7105 is an Industrial PoE Power switch that conforms to the IEEE 802.3af Power over Ethernet standard. The RocketLinx ES7105 provides four 10/100BASE-TX PoE ports with one standard 10/100BASE-TX Ethernet port. For detailed information, refer to the RocketLinx ES7105 User Guide, which is available on the RocketLinx CD or you can download the latest version. -
Page 3: Wiring The Power Inputs
Wiring the Power Inputs Use the following procedure to wire the power inputs. The working voltage is 48VDC or -48VDC. 1. Insert the positive and negative wires into the V+ and V- contact on the terminal block connector. 2. Tighten the wire-clamp screws to prevent the DC wires from becoming loose. PWR1 1A@24V PWR2... -
Page 4: Connecting Ethernet Ports
Connecting Ethernet Ports All Ethernet ports support auto MDI/MDIX. Connect an Ethernet cable into the PoE port of RocketLinx ES7105 switch and the appropriate network device. The LNK / ACT LED will turn Yellow for 10M Ethernet or Green for 100M Ethernet. The four PoE ports ( PoE 1 to PoE 4) support PoE OUT. If the PoE port LED is lit, it indicates that the RJ45 connector has been successfully connected to a IEEE 802.3af enabled Power Device. - Page 5 Comtrol Customer Service You can contact Comtrol using one of the following methods. Contact Method Web Address or Phone Number Support http://www.comtrol.com/pub/en/support Downloads ftp://ftp.comtrol.com/html/ES7105.htm Web Site http://www.comtrol.com Phone 763.957.6000...
