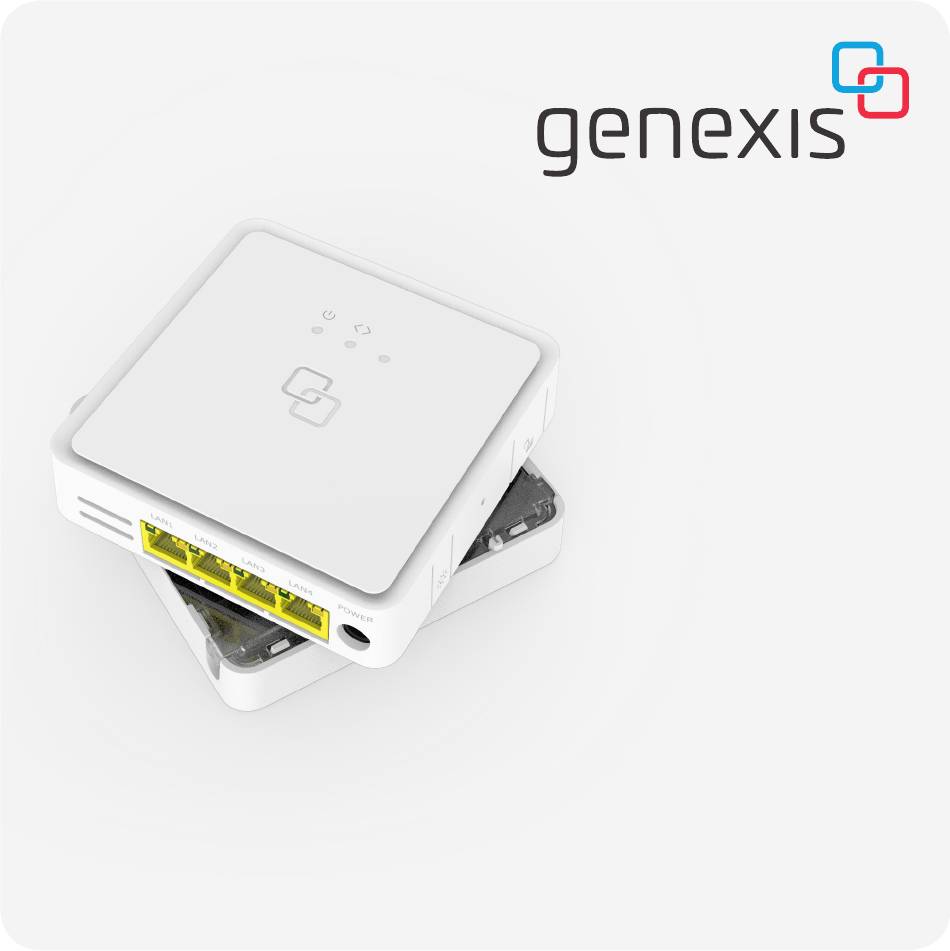

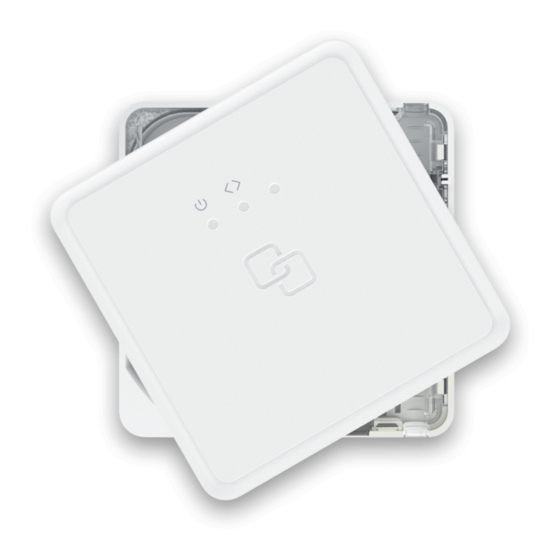

- Page 1 P3410 P3411 FiberTwist–Series Installation Guide...
-
Page 2: Button Overview
Button overview Port overview Power port LAN ports Unlock button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset – press and release Factory reset – press and hold 5 seconds LED dim button Dim LEDs –... -
Page 3: Led Overview
LED overview System Green – system ok Green (blinking) – booting – system error Red (blinking) – insufficient optical signal – power off Uplink Green – link ok Green (blinking) – link ok, no remote management – no link... - Page 4 • Rotate the Blind Cover counterclockwise till it blocks. Box contents Important: These instructions • Remove the Blind Cover from the baseplate (FTU) by pulling • Genexis FiberTwist (active device) need to be followed precisely and it towards yourself. • Power adapter uninterrupted.
- Page 5 Remove dust cap Twist! • Take the FiberTwist out of the box. • Place the FiberTwist on the FTU as shown in the picture below, • The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. •...
-
Page 6: Eu Declaration Of Conformity
• Connect LAN cable(s) as required. • Connect the supplied power adapter to the FiberTwist and plug the adapter into Hereby, Genexis B. V . declares that the products FiberTwist-P3410 and a power socket. FiberTwist-P3411 are in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU and Delegated Directive 2015/863. - Page 7 Revision 1.0 October 2019, Copyright © 2019 Genexis B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
