MEAT MINCERS
CONTENTS
Page
2
Page
3
Page
4
Page
5
Page
5
Page
5
Page
6
Page
7
Page
9
Page
10
Page
11
Page
25
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM.01 and is the answer not in the manual?

Questions and answers

Related Manuals for EMPERO EM.01

Summary of Contents for EMPERO EM.01

  • Page 1: Table Of Contents

    MEAT MINCERS CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...

  • Page 2: Ageneral Information

    MEAT MINCERS GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

  • Page 3: A1 Product Description

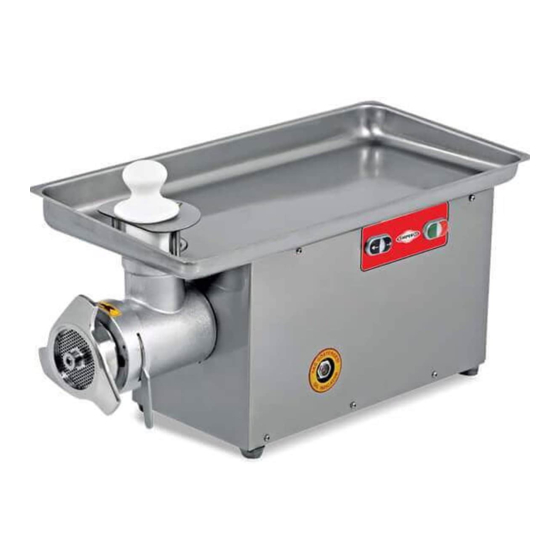

    MEAT MINCERS PRODUCT DESCRIPTION *The Professional Meat Mincers,that provides high efficiency has been designed to be used in industrial kitchens. Product Code Dimensions (mm) Weight (kg) Packaging Dimensions (mm) EM.01 360x850x395 375x865x430 EM.02 360x850x395 375x865x430 EM.09 320x790x400 335x805x430 EM.10 320x790x400 335x805x430 EM.01.P...

  • Page 4: A2 Technical Information

    MEAT MINCERS TECHNICAL INFORMATION Operating Capacity Power Cable Fuse Product Code Voltage (mm²) (kg/h) (Kw) EM.01 3x2,5 EM.02 4x1,5 EM.09 3x2,5 EM.10 4x1,5 EM.01.P 3x2,5 EM.02.P 4x1,5 EM.09.P 3x2,5 EM.10.P 4x1,5 EM.22.09 3x2,5 EM.22.10 4x1,5 EM.32.09 3x2,5 EM.32.10 4x1,5 *Volume Level: max.65 dB...

  • Page 5: A3 Transportation

    MEAT MINCERS TRANSPORTATION *This appliance can be moved by hand from area to area.Do not crash and drop the appliance while transporting. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.

  • Page 6: Csafety Instructions

    MEAT MINCERS SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates.  *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. *Do not load so less or more than appliance’s capacity.

  • Page 7: Doperation

    *Control Panel; A : Urgent stop button B : Start button C : Stop button D : Operation to forward-back EM.01-02-09-10 / EM.01.P-02.P-09.P-10.P *Operating; • Before operating,clean the spiral,disk,blade and inside of meat tube with a hot water and dry.
  • Page 8 MEAT MINCERS * Control Panel: A : Start button B : Stop button C : Operation to back D : Operation to forward E : Urgent stop button EM.22.09-10 / EM.32.09-10 * Operating: • Before operating,clean the spiral,disk,blade and inside of meat tube with a hot water and dry.

  • Page 9: Ecleaning & Maintenance

    MEAT MINCERS CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Clean the meat tube,spiral,disk and blade after every meat mincing process. • Clean the outer surface of appliance with a wet cloth and then dry. • Always turn off the appliance and disconnect from the power supply before cleaning. •...

  • Page 10: Ftroubleshooting

    MEAT MINCERS TROUBLESHOOTING Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check the urgent stop button. There may remain bone pieces in the meat.In thıs situation stop the appliance THE APPLIANCE IS NOISY check the meat and blade.

  • Page 11: Gspare Part List-Exploding Drawing

    MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING...
  • Page 12 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE : EM.01 PRODUCT NAME P.CODE BASE FRAME Y.EM.01.1001 BRACKET Y.EM.01.1002 SPILLAGE TRAY Y.EM.01.1003 PESTLE Y.EM.01.1004 SAFETY GUARD Y.EM.01.1005 FEET Y.EM.01.1006 SWITCH Y.EM.01.1007 MEAT TUBE Y.EM.01.1008 SPIRAL Y.EM.01.1009 MEAT TUBE NUT Y.EM.01.1010 DISC Y.EM.01.1011...
  • Page 13 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EM.02 PRODUCT NAME P.CODE BASE FRAME Y.EM.02.1001 BRACKET Y.EM.02.1002 SPILLAGE TRAY Y.EM.02.1003 PESTLE Y.EM.02.1004 SAFETY GUARD Y.EM.02.1005 FEET Y.EM.02.1006 SWITCH Y.EM.02.1007 MEAT TUBE Y.EM.02.1008 SPIRAL Y.EM.02.1009 MEAT TUBE NUT Y.EM.02.1010 DISC Y.EM.02.1011 BLADE Y.EM.02.1012 SPIRAL SCREW Y.EM.02.1013...
  • Page 14 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EM.09 PRODUCT NAME P.CODE BASE FRAME Y.EM.09.1001 BRACKET Y.EM.09.1002 SPILLAGE TRAY Y.EM.09.1003 PESTLE Y.EM.09.1004 SAFETY GUARD Y.EM.09.1005 FEET Y.EM.09.1006 SWITCH Y.EM.09.1007 MEAT TUBE Y.EM.09.1008 SPIRAL Y.EM.09.1009 MEAT TUBE NUT Y.EM.09.1010 DISC Y.EM.09.1011 BLADE Y.EM.09.1012 SPIRAL SCREW Y.EM.09.1013...
  • Page 15 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EM.10 PRODUCT NAME P.CODE BASE FRAME Y.EM.10.1001 BRACKET Y.EM.10.1002 SPILLAGE TRAY Y.EM.10.1003 PESTLE Y.EM.10.1004 SAFETY GUARD Y.EM.10.1005 FEET Y.EM.10.1006 SWITCH Y.EM.10.1007 MEAT TUBE Y.EM.10.1008 SPIRAL Y.EM.10.1009 MEAT TUBE NUT Y.EM.10.1010 DISC Y.EM.10.1011 BLADE Y.EM.10.1012 SPIRAL SCREW Y.EM.10.1013...
  • Page 16 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EM.01.P PRODUCT NAME P.CODE BASE FRAME Y.EM.01.P.1001 BRACKET Y.EM.01.P.1002 SPILLAGE TRAY Y.EM.01.P.1003 PESTLE Y.EM.01.P.1004 SAFETY GUARD Y.EM.01.P.1005 FEET Y.EM.01.P.1006 SWITCH Y.EM.01.P.1007 MEAT TUBE Y.EM.01.P.1008 SPIRAL Y.EM.01.P.1009 MEAT TUBE NUT Y.EM.01.P.1010 DISC Y.EM.01.P.1011 BLADE Y.EM.01.P.1012...
  • Page 17 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE : EM.02.P PRODUCT NAME P.CODE BASE FRAME Y.EM.02.P.1001 BRACKET Y.EM.02.P.1002 SPILLAGE TRAY Y.EM.02.P.1003 PESTLE Y.EM.02.P.1004 SAFETY GUARD Y.EM.02.P.1005 FEET Y.EM.02.P.1006 SWITCH Y.EM.02.P.1007 MEAT TUBE Y.EM.02.P.1008 SPIRAL Y.EM.02.P.1009 MEAT TUBE NUT Y.EM.02.P.1010 DISC Y.EM.02.P.1011 BLADE Y.EM.02.P.1012...
  • Page 18 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EM.09.P PRODUCT NAME P.CODE BASE FRAME Y.EM.09.P.1001 BRACKET Y.EM.09.P.1002 SPILLAGE TRAY Y.EM.09.P.1003 PESTLE Y.EM.09.P.1004 SAFETY GUARD Y.EM.09.P.1005 FEET Y.EM.09.P.1006 SWITCH Y.EM.09.P.1007 MEAT TUBE Y.EM.09.P.1008 SPIRAL Y.EM.09.P.1009 MEAT TUBE NUT Y.EM.09.P.1010 DISC Y.EM.09.P.1011 BLADE Y.EM.09.P.1012 SPIRAL SCREW Y.EM.09.P.1013...
  • Page 19 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EM.10.P PRODUCT NAME P.CODE BASE FRAME Y.EM.10.P.1001 BRACKET Y.EM.10.P.1002 SPILLAGE TRAY Y.EM.10.P.1003 PESTLE Y.EM.10.P.1004 SAFETY GUARD Y.EM.10.P.1005 FEET Y.EM.10.P.1006 SWITCH Y.EM.10.P.1007 MEAT TUBE Y.EM.10.P.1008 SPIRAL Y.EM.10.P.1009 MEAT TUBE NUT Y.EM.10.P.1010 DISC Y.EM.10.P.1011 BLADE Y.EM.10.P.1012 SPIRAL SCREW Y.EM.10.P.1013...
  • Page 20 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING EM.22.09-EM.22.10 / EM.32.09-EM.32.10...
  • Page 21 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EM.22.09 PRODUCT NAME P.CODE BASE FRAME Y.EM.22.09.001 FEET Y.EM.22.09.002 URGENT STOP Y.EM.22.09.003 BUTTON (FORWARD-BACKWARD) Y.EM.22.09.004 BUTTON (START-STOP) Y.EM.22.09.005 Y.EM.22.09.006 CONTACTOR (DİLEM10) Y.EM.22.09.007 AUXILIARY CONTACTOR Y.EM.22.09.008 MICA SHEET METAL Y.EM.22.09.009 SPILLAGE TRAY Y.EM.22.09.010 PESTLE Y.EM.22.09.011 HINGE...
  • Page 22 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EM.22.10 PRODUCT NAME P.CODE BASE FRAME Y.EM.22.10.001 FEET Y.EM.22.10.002 URGENT STOP Y.EM.22.10.003 BUTTON (FORWARD-BACKWARD) Y.EM.22.10.004 BUTTON (START-STOP) Y.EM.22.10.005 Y.EM.22.10.006 CONTACTOR (DİLEM10) Y.EM.22.10.007 AUXILIARY CONTACTOR Y.EM.22.10.008 MICA SHEET METAL Y.EM.22.10.009 SPILLAGE TRAY Y.EM.22.10.010 PESTLE Y.EM.22.10.011 HINGE...
  • Page 23 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EM.32.09 PRODUCT NAME P.CODE BASE FRAME Y.EM.32.09.001 FEET Y.EM.32.09.002 URGENT STOP Y.EM.32.09.003 BUTTON (FORWARD-BACKWARD) Y.EM.32.09.004 BUTTON (START-STOP) Y.EM.32.09.005 Y.EM.32.09.006 CONTACTOR (DİLEM10) Y.EM.32.09.007 AUXILIARY CONTACTOR Y.EM.32.09.008 MICA SHEET METAL Y.EM.32.09.009 SPILLAGE TRAY Y.EM.32.09.010 PESTLE Y.EM.32.09.011 HINGE...
  • Page 24 MEAT MINCERS SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EM.32.10 PRODUCT NAME P.CODE BASE FRAME Y.EM.32.10.001 FEET Y.EM.32.10.002 URGENT STOP Y.EM.32.10.003 BUTTON (FORWARD-BACKWARD) Y.EM.32.10.004 BUTTON (START-STOP) Y.EM.32.10.005 Y.EM.32.10.006 CONTACTOR (DİLEM10) Y.EM.32.10.007 AUXILIARY CONTACTOR Y.EM.32.10.008 MICA SHEET METAL Y.EM.32.10.009 SPILLAGE TRAY Y.EM.32.10.010 PESTLE Y.EM.32.10.011 HINGE...

  • Page 25: Helectric Circuit Schema

    MEAT MINCERS ELECTRIC CIRCUIT SCHEMA EM.01 – EM.01.P / EM.09 – EM.09.P CONTACTOR 220V. 16A. SWITCH MOTOR 1400 D/DK 220V. RIGHT START LAMP...
  • Page 26 MEAT MINCERS ELECTRIC CIRCUIT SCHEMA EM.02 – EM.02.P / EM.10 – EM.10.P CONTACTOR 220V. MOTOR 1400 D/DK 380 V. RIGHT START LAMP 16A. SWITCH...
  • Page 27 MEAT MINCERS ELECTRIC CIRCUIT SCHEMA EM.22.09 / EM.32.09 START1 RIGHT START BUTTON START2 LEFT START BUTTON SET CONTACTOR 220V MOTOR RIGHT ARROW CONTACTOR MOTOR LEFT ARROW CONTACTOR MOTOR 1500 D/DK CONDENSATOR COOLER FAN 220V START LAMP RIGHT-LEFT START LAMP...
  • Page 28 MEAT MINCERS ELECTRIC CIRCUIT SCHEMA EM.22.10 / EM.32.10 START1 RIGHT START BUTTON START2 LEFT START BUTTON SET CONTACTOR MOTOR RIGHT ARROW CONTACTOR MOTOR LEFT ARROW CONTACTOR MOTOR 1500 D/DK START LAMP RIGHT-LEFT START LAMP COOLER FAN 220V...

This manual is also suitable for:

Em.02Em.09Em.10Em.01.pEm.02.pEm.09.p ... Show all
