Summary of Contents for EMPERO EMP.SPO.02
-
Page 1: Table Of Contents
ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page... -
Page 2: Ageneral Information
ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

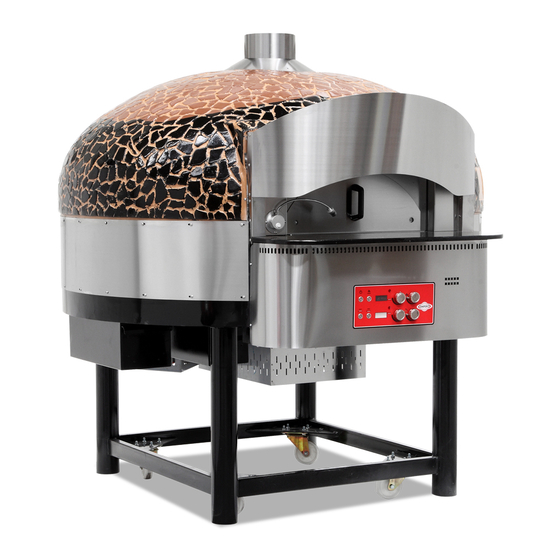

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Pizza Ovens (Gas) ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.SPO.02 1965x2127x2113 1500 2050x2210x2230 EMP.SPO.03 1480x1724x1855 1550x1820x2040 EMP.SPO.04 1480x1724x1855 1550x1820x2040 EMP.SPO.05... -
Page 4: A3 Transportation
ROTATING AND NON ROTATING GAS PIZZA OVEN TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. -
Page 6: Doperation
ROTATING AND NON ROTATING GAS PIZZA OVEN OPERATION Kasap Tip Dik Buzdolapları * Control Panel: SPO.02-SPO.03-SPO.05 A: ON-OFF B: LAMP C: TOP DIGITAL D: TOP DIGITAL SIGNAL LAMP E: SUB DIGITAL F: SUB DIGITAL SIGNAL LAMP G: TANBUR SPEED ADJUSTMENT H: TOP DIGITAL HEAT ADJUSTMENT I: SUB DIGITAL HEAT ADJUSTMENT J: TOP BURNER RESET... - Page 7 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları OPERATION *Kontrol Panosu: SPO.04 A: ON-OFF B: LAMP C: DIGITAL INDICATOR D: DIGITAL SIGNAL LAMP E: DIGITAL HEAT ADJUSTMENT F: FLAME ADJUSTMENT G: BURNER RESET...
- Page 8 ROTATING AND NON ROTATING GAS PIZZA OVEN *Operating: Kasap Tip Dik Buzdolapları Before you operate the engine , clean inside off oven with a wet cloth or fabric and dry it.Cihazı çalıştırmadan önce fırın iç yüzeyini ılık nemli bir bez ile temizleyiniz ve kurulayınız. ...
-
Page 9: Ecleaning & Maintenance
ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Be sure that gas and electric connections are off before cleaning. Clean the inside of the oven with soft cloth by using oil solvent spray,before the appliance gets cooled exactly. -
Page 10: Ftroubleshooting
ROTATING AND NON ROTATING GAS PIZZA OVEN TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the gas connection is done or not. If the hoses that have gas entrance lose gas due to THE APPLIANCE slit,hole.etc.,the appliance is not operated. DOESN’T OPERATE Check the electrical connections and voltage. -
Page 11: Ginjector Change And Gas Setting
ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları INJECTOR CHANGE AND GAS SETTING PIZZA OVENS (GAS ) BURNER-INJECTOR CHANGE CHART EMP.SPO.02 EMP.SPO.04 Gas Group Gas&Pressure Injector Injector mm NG Ø 2,50 2.Group G20 – 21 mbar BOTTOM NG Ø... -
Page 12: Hgas Connection Images
ROTATING AND NON ROTATING GAS PIZZA OVEN GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları FIRING SPARKING PLUG SPARKING PLUG CABLE BURNER GAS BLOCK GAS FLEX FIRING SPARKING PLUG SPARKING PLUG CABLE GAS ENTRANCE GAS BLOCK GAS FLEX... -
Page 13: Ispare Part List-Exploding Drawing
ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.SPO.02-... - Page 14 ROTATING AND NON ROTATING GAS PIZZA OVEN SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE:EMP.SPO.02 PRODUCT NAME P.CODE BURNER M.GAZ-BRL-INX-004 230V-50HZ 80W FAN M.GAZ-BLK-HNW-019 GAS VALVE VK4115V2012B M.GAZ-BLK-HNW-016 IGNITION BOARD S4565A2019B M.GAZ-BLK-HNW-002 8A 230 V AC RELAY JP.M.ELK-KNT-ROL-001 DRAWER ARA-KNX.SPOE-0014...
- Page 15 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları J TYPE TERMOHANDLE 15 CM M.ELK-EDM-JKT-017 DIGITAL THERMOSTAT JP.M.ELK-EDM-DGT-001 SIGNAL LAMP M.ELK-LMB-SNY-002 BUTTON JP.M.AKS-DGM-MUH-005 BUTTON SOCKET M.AKS-DGM-SKT-004 GREASE SUPPORT M.MUH-034 TICKET M.AKS-ETK-LKS-086 MANIFOLD M.GAZ-BLK-HNW-017 FRONT PANEL SHEET YSC-KNX.SPO-LZ-0075 PLUG M.PLS-OZL-004 IGNITION BOARD S4965V3075B M.GAZ-BLK-HNW-014...
- Page 16 ROTATING AND NON ROTATING GAS PIZZA OVEN SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.SPO.03...
- Page 17 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EMP.SPO.03 PRODUCT NAME P.CODE CHIMNEY OUTLET SHEET YSC-KNX.SPO-PN-0056 CHIMNEY FLANGE YSC-KNX.SPO-LZ-0048 FIBER CUPOLA M.AKS-FBR-SPO-008 FRONT PANEL YSC-KNX.SPO-LZ-0076 BURNER M.GAZ-BRL-INX-004 230V-50HZ 80W FAN M.GAZ-BLK-HNW-019 IGNITION BOARD S4965V3075B M.GAZ-BLK-HNW-014 GAS VALVE VK4115V2012B M.GAZ-BLK-HNW-016...
- Page 18 ROTATING AND NON ROTATING GAS PIZZA OVEN SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.SPO.04...
- Page 19 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.SPO.04 PRODUCT NAME P.CODE EZ9F43110 10A FUSE JP.M.ELK-SGR-013 SHEET METAL YSC-KNX.SPO-LZ-0193 YSC-KNX.SPOE-LZ-0090 THERMOSTAT CONNECTION SHEET METAL 10K POTANSİYOMETER M.ELK-PTM-SPO-002 DIGITAL THERMOSTAT JP.M.ELK-EDM-DGT-001 M.AKS-DGM-SKT-004 BUTTON SOCKET JP.M.AKS-DGM-MUH-005 BUTTON...
- Page 20 ROTATING AND NON ROTATING GAS PIZZA OVEN JP.M.MEK-TES-SRI-014 CONNECTION 1/2 1/2-3/4-1/2 T PIPE M.GAZ-TES-SYH-001 Kasap Tip Dik Buzdolapları JP.M.GAZ-TES-GLV-002 BRACKET DRAWER ARA-KNX.SPOE-0015 YSC-KNX.SPO-LZ-0081 DRAWERSHEET M.ELK-EDM-JKT-016 J TYPE THERMOCOUPLE 10 CM LIGHTING LAMP M.ELK-LMB-SPR-001 M.CAM-TMP-032 25MM *2MM GLASS M.GAZ-TES-SPR-003 1/2-1/2 40 CM GAS FLEX LAMBA CONEXION SHEET YSC-KNX.SPO-LZ-0051 MANIFOLD...
- Page 21 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.SPO.05...
- Page 22 ROTATING AND NON ROTATING GAS PIZZA OVEN SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.SPO.05 Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE YSC-KNX.SPO-LZ-0204 TOP CHIMNEY SHEET YSC-KNX.SPOE-LZ-0082 CHIMNEY FLANGE TOP CLOSING SHEET YSC-KNX.SPO-LZ-0184 498*160 CASTING INTERMEDIATE M.AKS-DKM-SPO-001 975*487*12+3 MM PIZZA STONE M.TAS-FRN-PZ-004 BURNER M.GAZ-BRL-INX-004...
- Page 23 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları M.AKS-ETK-LKS-086 TICKET THERMOSTAT CONNECTION SHEET METAL YSC-KNX.SPOE-LZ-0090 AVK4 TERMINAL JP.M.ELK-KLM-001 AVK4 TERMINAL JP.M.ELK-KLM-021 JP.M.ELK-KLM-027 TERMINAL ARA-KNX.SPOE-0016 DRAWER YSC-KNX.SPO-PN-0090 DRAWEROUTER SHEET M.ELK-RKR-PLS-003 PG-11 CABLE FITTING M.MUH-034 GREASE SUPPORT JP.M.ELK-KLM-028 TERMINAL TERMINAL JP.M.ELK-KLM-033 TERMINAL...
-
Page 24: Jelectric Circuit Schema
ROTATING AND NON ROTATING GAS PIZZA OVEN ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.SPO.02- SPO.04-SPO.05... - Page 25 ROTATING AND NON ROTATING GAS PIZZA OVEN Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.SPO.03 INNER LIGHTING LAMP 220 VAC TOP THERMOCOUPLE (TC.M06-L50-K01K) COOLING FAN 220 VAC CONTROL CIRCUIT AND SPEED CONTROL DEVICE FUSE 16 A TOP HEATER BURNER RELAY 220 VAC...
