Page 1: Table Of Contents
PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page SPARE PART LIST- EXPLODING DRAWING... -
Page 2: Ageneral Information
PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

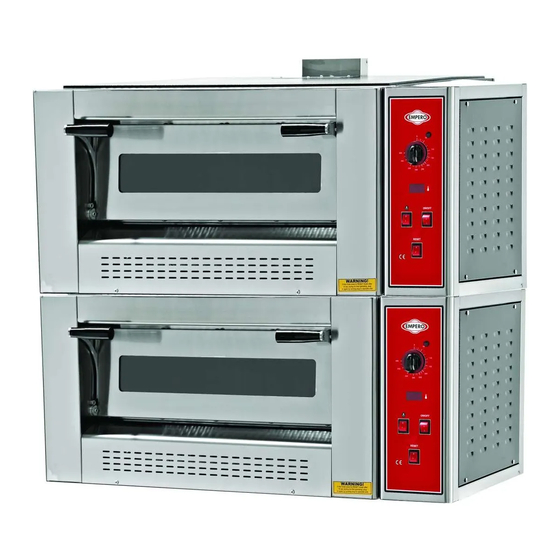

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Pizza Ovens (Gas) ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.4+4G 1100x950x990 1200x1050x1130 EMP.6+6G 1400x950x990 1470x1040x1130 EMP.8+8G EMP.9+9G 1400x1250x990... -
Page 4: A3 Transportation
PIZZA OVEN (GAS) TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. -
Page 6: Doperation
PIZZA OVEN (GAS) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Indicator lamp B : Heat setting button C : Analog indicator D : ON/OFF button E : Inner lighting button F : Reset button... - Page 7 PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları OPERATION *Operating; • Clean the inner and outer surface of the appliance with warm moist cloth and then dry before operating. • Plug in the appliance and turn on the gas valve. • Switch ON.
-
Page 8: Cleaning And Maintenance
PIZZA OVEN (GAS) CLEANING & MAINTENANCE Kasap Tip Dik Buzdolapları ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Be sure that gas and electric connections are off before cleaning. • Clean the inside of the oven with soft cloth by using oil solvent spray,before the appliance gets cooled exactly. -
Page 9: Ftroubleshooting
PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları TROUBLESHOOTING Check if the gas connection is done or not. If the hoses that have gas entrance lose gas due to THE APPLIANCE DOESN’T slit,hole.etc.,the appliance is not operated. OPERATE Check the electrical connections and voltage. Check if the fuse is on or off. -
Page 10: Ginjector Change And Gas Setting
PIZZA OVEN (GAS) INJECTOR CHANGE AND GAS SETTING Kasap Tip Dik Buzdolapları PIZZA OVENS (GAS ) BURNER-INJECTOR CHANGE CHART EMP.4+4G EMP.6+6G EMP.8+8G EMP.9+9G NG / LPG mm mm mm mm 30 mbar 50 mbar 37 mbar... -
Page 11: Hgas Connection Images
PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları GAS CONNECTION IMAGES Image 1... -
Page 12: Ispare Part List-Exploding Drawing
PIZZA OVEN (GAS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.4+4G... - Page 13 PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.4+4G PRODUCT NAME P.CODE COVER SHEET YSC-KNX.GPZ-PN-0068 3*1.00 CABLE JP.M.ELK-PWR-PBK-001 PG-11 CABLE FITTING M.ELK-RKR-PLS-003 CONNECTION 1/2 JP.M.MEK-TES-SRI-014 GAS BLOCK VK4105A1001B M.GAZ-BLK-HNW-001 1/2 FLANGE 45900400-102B M.GAZ-BLK-HNW-003 IGNITION BOARD S4565A2019B M.GAZ-BLK-HNW-002...
- Page 14 PIZZA OVEN (GAS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.6+6G...
- Page 15 PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.6+6G PRODUCT NAME P.CODE COVER SHEET YSC-KNX.GPZ-PN-0068 3*1.00 CABLE JP.M.ELK-PWR-PBK-001 PG-11 CABLE FITTING M.ELK-RKR-PLS-003 CONNECTION 1/2 JP.M.MEK-TES-SRI-014 GAS BLOCK VK4105A1001B M.GAZ-BLK-HNW-001 1/2 FLANGE 45900400-102B M.GAZ-BLK-HNW-003 IGNITION BOARD S4565A2019B M.GAZ-BLK-HNW-002 GAS BLOCK INLET FITTING YTL-KNX.GPZ-KS-0001...
- Page 16 PIZZA OVEN (GAS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.9+9G...
- Page 17 PIZZA OVEN (GAS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.9+9G PRODUCT NAME P.CODE COVER SHEET YSC-KNX.GPZ-PN-0068 3*1.00 CABLE JP.M.ELK-PWR-PBK-001 PG-11 CABLE FITTING M.ELK-RKR-PLS-003 CONNECTION 1/2 JP.M.MEK-TES-SRI-014 GAS BLOCK VK4105A1001B M.GAZ-BLK-HNW-001 1/2 FLANGE 45900400-102B M.GAZ-BLK-HNW-003 IGNITION BOARD S4565A2019B M.GAZ-BLK-HNW-002 GAS BLOCK INLET FITTING YTL-KNX.GPZ-KS-0001...
-
Page 18: Jelectric Circuit Schema
PIZZA OVEN (GAS) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları Inner lighting switch Digital indicator switch HONEYWEL card reset switch Thermostat signal lamp Thermostat (50-400 ºC) Thermocouple (TC-M06-L080-K01.J) Digital Indicator (EMKO ESM-3710)
