EMPERO EMP.DTG.50 Manual

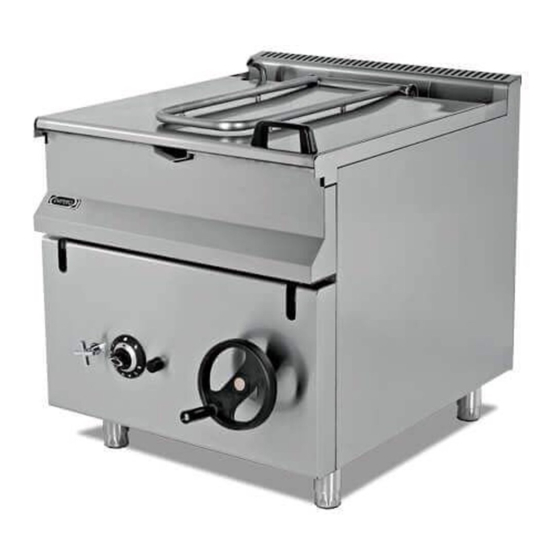

Tilting pan (gas)
Hide thumbs
Table of Contents

Advertisement

Quick Links

TILTING PAN (GAS)
Kasap Tip Dik Buzdolapları
CONTENTS
Page
2
Page
3
Page
3
Page
3
Page
4
Page
4
Page
5
Page
6
Page
7
Page
8
Page
9
Page
10
Page
12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMP.DTG.50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMPERO EMP.DTG.50

Summary of Contents for EMPERO EMP.DTG.50

  • Page 1: Table Of Contents

    TILTING PAN (GAS) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page SPARE PART LIST- EXPLODING DRAWING...

  • Page 2: Ageneral Information

    TILTING PAN (GAS) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

  • Page 3: A1 Product Description

    Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Tilting Pans ,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.DTG.50 800x730x850 900x960x1150 EMP.DTG.80 800x900x850 820X1020X1040 EMP.DTG.120 1200x900x850 1330x1170x1150...

  • Page 4: A4 Unpacking

    TILTING PAN (GAS) UNPACKING Kasap Tip Dik Buzdolapları *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. *Please check that all the parts of appliance had come completely and if they are damaged or not during the shipping.

  • Page 5: Csafety Instructions

    TILTING PAN (GAS) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty.

  • Page 6: Doperation

    TILTING PAN (GAS) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : OFF position B : Lighter position C : Heat setting button D : Lighter E : Flame observing hole F : Water valve G : Lifting Ring *Operating; •...

  • Page 7: Ecleaning & Maintenance

    TILTING PAN (GAS) Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Turn off the gas connection before cleaning. • Clean the outer surface of the appliance,cooking pan and lid with a moist cloth. •...

  • Page 8: Ftroubleshooting

    TILTING PAN (GAS) TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the gas connection is done or not. If there is no gas entrance to pilot,the appliance is not operated. THE APPLIANCE DOESN’T OPERATE Check if the injector holes are opened or not.

  • Page 9: Ginjector Change And Gas Setting

    TILTING PAN (GAS) Kasap Tip Dik Buzdolapları INJECTOR CHANGE AND GAS SETTING GAS TILTING PANS BURNER-INJECTOR CHANGE CHART DTG.50 DTG.80 DTG.120 Gas Group Injector  mm Injector  mm Injector  mm 30 mbar 1,40 50 mbar 1,40 37 mbar 1,40 50 mbar 1,40...

  • Page 10: Hgas Connection Images

    TILTING PAN (GAS) GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları Image 2 Image 1...
  • Page 11 TILTING PAN (GAS) Kasap Tip Dik Buzdolapları GAS CONNECTION IMAGES Image 3...

  • Page 12: Ispare Part List-Exploding Drawing

    TILTING PAN (GAS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları...
  • Page 13 TILTING PAN (GAS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DTG.50 PRODUCT NAME P.CODE BASE FRAME Y.EMP.DTG.50.001 FEET Y.EMP.DTG.50.002 Y.EMP.DTG.50.003 HANDLE Y.EMP.DTG.50.004 LID LIFTING MECHANISM Y.EMP.DTG.50.005 Y.EMP.DTG.50.006 LIGHTER Y.EMP.DTG.50.007 BUTTON Y.EMP.DTG.50.008 GAS TAP Y.EMP.DTG.50.009 ADJUSTMENT HANDLE Y.EMP.DTG.50.010 BURNER Y.EMP.DTG.50.011...
  • Page 14 TILTING PAN (GAS) SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.DTG.80 PRODUCT NAME P.CODE BASE FRAME Y.EMP.DTG.80.001 FEET Y.EMP.DTG.80.002 Y.EMP.DTG.80.003 HANDLE Y.EMP.DTG.80.004 LID LIFTING MECHANISM Y.EMP.DTG.80.005 Y.EMP.DTG.80.006 LIGHTER Y.EMP.DTG.80.007 BUTTON Y.EMP.DTG.80.008 GAS TAP Y.EMP.DTG.80.009 ADJUSTMENT HANDLE Y.EMP.DTG.80.010 BURNER Y.EMP.DTG.80.011 SPARKING PLUG+CABLE...
  • Page 15 TILTING PAN (GAS) Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.DTG.120 PRODUCT NAME P.CODE BASE FRAME Y.EMP.DTG.120.001 FEET Y.EMP.DTG.120.002 Y.EMP.DTG.120.003 HANDLE Y.EMP.DTG.120.004 LID LIFTING MECHANISM Y.EMP.DTG.120.005 Y.EMP.DTG.120.006 LIGHTER Y.EMP.DTG.120.007 BUTTON Y.EMP.DTG.120.008 GAS TAP Y.EMP.DTG.120.009 ADJUSTMENT HANDLE Y.EMP.DTG.120.010 BURNER Y.EMP.DTG.120.011 SPARKING PLUG+CABLE...

This manual is also suitable for:

Emp.dtg.80Emp.dtg.120
