Page 1: Table Of Contents
GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

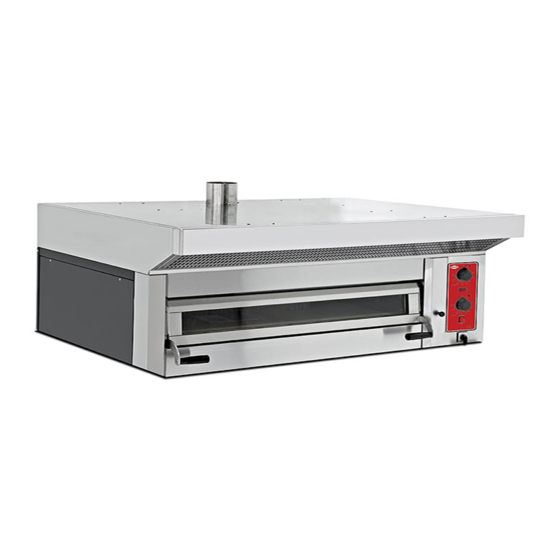

GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Gold Maxi Pizza Ovens ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) 1134x1091x710 1160x1180x850 EMP.GF.01-S 1486x1091x710... -
Page 4: A3 Transportation
GOLD MAXI PIZZA OVENS (ELECTRICAL) TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials.The ... -
Page 6: Doperation
GOLD MAXI PIZZA OVENS (ELECTRICAL) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Inner Temperature Indicator B : Thermostat Control Lamp C : Thermostat Button (0-400ºC) D : Inner Lighting Button E : Switch OFF Position F : Switch ON Position... -
Page 7: Product Code
GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları *Operating; • Clean the inner and outer surface of the appliance with warm moist cloth and dry before the operation. • Plug in the appliance and switch the thermostat to desired heat. •... -
Page 8: Ecleaning & Maintenance
GOLD MAXI PIZZA OVENS (ELECTRICAL) CLEANING & MAINTENANCE Kasap Tip Dik Buzdolapları ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the inside of the oven with soft cloth by using oil solvent spray,before the appliance gets cooled exactly. -
Page 9: Ftroubleshooting
GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları TROUBLESHOOTING Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check if the fuse is on or off. Check the resistances. Check the heat settings. THE APPLIANCE DOESN’T COOK WELL Do not overload the oven. -
Page 10: Gspare Part List- Exploding Drawing
GOLD MAXI PIZZA OVENS (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.GF.01-S... - Page 11 GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.GF.01-S PRODUCT NAME P.CODE HOOD SHEET YSC-KNX.EPZ-PN-0405 HOOD SHEET YSC-KNX.EPZ-PN-0444 CHASSIS GLASS WICK HCN-ELY-KZ-001 CONNECTION SCREW YTL-KNX.KFR-KS-0023 LAMP JP.M.ELK-LMB-AMP-002 COVER SPRING M.YAY-GLD-001 PIPE Ø 25 - 735 MM YBR-KNX.EPZ-KS-0008 BEARING 6005 ZZ M.RLM-ISI-001...
- Page 12 GOLD MAXI PIZZA OVENS (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.GF.02-S...
-
Page 13: Product Name
GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE:EMP.GF.02-S PRODUCT NAME P.CODE YSC-KNX.EPZ-PN-0405 HOOD SHEET HOOD SHEET YSC-KNX.EPZ-PN-0403 CHASSIS M.TAS-FRN-PZ-009 525*700*13+3 MM PIZZA STONE M.YAY-GLD-001 COVER SPRING JP.M.ELK-LMB-AMP-002 LAMP M.ELK-RZS-BRU-GF3-001 113725 220V 650W RESISTORS YBR-KNX.EPZ-KS-0007 BORING Ø... - Page 14 GOLD MAXI PIZZA OVENS (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.GF.01-D...
- Page 15 GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE:EMP.GF.01-D PRODUCT NAME P.CODE HOOD SHEET YSC-KNX.EPZ-PN-0405 HOOD SHEET YSC-KNX.EPZ-PN-0444 CHASSIS LAMP JP.M.ELK-LMB-AMP-002 COVER SPRING M.YAY-GLD-001 PIPE Ø 25 - 735 MM YBR-KNX.EPZ-KS-0008 COVER BEARING LOCATION YTL-KNX.EPZ-KS-0017 BEARING 6005 ZZ M.RLM-ISI-001...
- Page 16 GOLD MAXI PIZZA OVENS (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.GF.02-D...
- Page 17 GOLD MAXI PIZZA OVENS (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE :EMP.GF.02-D PRODUCT NAME P.CODE HOOD SHEET YSC-KNX.EPZ-PN-0405 HOOD SHEET YSC-KNX.EPZ-PN-0403 CHASSIS COVER SPRING M.YAY-GLD-001 LAMP JP.M.ELK-LMB-AMP-002 525*700*13+3 MM PIZZA STONE M.TAS-FRN-PZ-009 113725 220V 650W RESISTORS M.ELK-RZS-BRU-GF3-001 BORING Ø...
-
Page 18: Helectric Circuit Schema
GOLD MAXI PIZZA OVENS (ELECTRICAL) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları TERMİNAL A1.A2 INNER LIGHTING SWITCH ON/OFF SWITCH (0-1) 3 PHASES THERMOCOUPLE (TC-M06-L080-K01.J) DIGITAL INDICATOR EMKO ESM -3710 STAGE 2 UPPER HEATER CONTACTOR 20A. 220V STAGE 2 LOWER HEATER CONTACTOR 20A. 220V STAGE 1 UPPER HEATER CONTACTOR 20A.
