PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

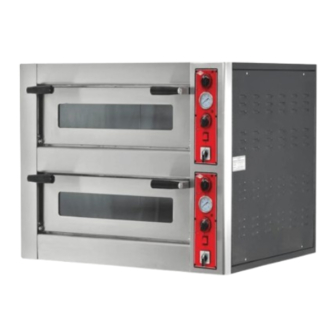

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Pizza Ovens (Electric) ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.4+4 825x710x670 930x820x820 EMP.5+5 890x810x760 1000x930x940 EMP.6+6 1190x810x760 1250x930x920 EMP.8+8... -
Page 4: A3 Transportation
PIZZA OVEN (ELECTRICAL) TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials.The ... -
Page 6: Doperation
PIZZA OVEN (ELECTRICAL) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Inner Temperature Indicator B : Thermostat Control Lamp C : Thermostat Button (0-400ºC) D : Inner Lighting Button E : Switch OFF Position F : Switch ON Position... -
Page 7: Product Code
PITTA AND TURKISH PRODUCT CODE PIZZA PIZZA 1. ALTERNATIVE Lower Thermostat : 280ºC Upper Thermostat : 300ºC Lower Thermostat : 260ºC EMP.4+4 Cooking Time : 7-8 min Upper Thermostat : 280ºC EMP.5+5 EMP.6+6 Cooking Time : 3-4 min EMP.8+8 2. -
Page 8: Ecleaning & Maintenance
PIZZA OVEN (ELECTRICAL) CLEANING & MAINTENANCE Kasap Tip Dik Buzdolapları ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the inside of the oven with soft cloth by using oil solvent spray,before the appliance gets cooled exactly. -
Page 9: Ftroubleshooting
PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları TROUBLESHOOTING Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check if the fuse is on or off. Check the resistances. Check the heat settings. THE APPLIANCE DOESN’T COOK WELL Do not overload the oven. -
Page 10: Gspare Part List- Exploding Drawing
PIZZA OVEN (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları... -
Page 11: Product Name
PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.4+4 PRODUCT NAME P.CODE PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 CHASSIS LC1K0901M7 CONTACTOR JP.M.ELK-KNT-KNT-020 515*507*18 MM PIZZA STONE M.TAS-FRN-PC-002 COVER SHEET YSC-KNX.EPZ-PN-0218 875W RESISTANCE M.ELK-RZS-BRU-PZ4-001 LAMP JP.M.ELK-LMB-AMP-002 85-450 °C THERMOSTAT M.ELK-MEK-TRM1-002... - Page 12 PIZZA OVEN (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları...
- Page 13 PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.5+5 PRODUCT NAME P.CODE PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 CHASSIS YSC-KNX.EPZ-PN-0218 COVER SHEET JP.M.ELK-LMB-AMP-002 LAMP JP.M.ELK-KNT-KNT-020 LC1K0901M7 CONTACTOR 85-450 °C THERMOSTAT M.ELK-MEK-TRM1-002 M.AKS-ETK-ALM-013 TICKET BUTTON SOCKET M.AKS-DGM-SKT-004 BUTTON JP.M.AKS-DGM-MUH-005 JP.M.ELK-SLT-PKO-003...
- Page 14 PIZZA OVEN (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları...
- Page 15 PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.6+6 PRODUCT NAME P.CODE JP.M.ELK-RKR-PLS-001 PG-16 CABLE FITTING CHASSIS YSC-KNX.EPZ-PN-0218 COVER SHEET LAMP JP.M.ELK-LMB-AMP-002 JP.M.ELK-KNT-KNT-020 LC1K0901M7 CONTACTOR M.ELK-MEK-TRM1-002 85-450 °C THERMOSTAT TICKET M.AKS-ETK-ALM-013 BUTTON SOCKET M.AKS-DGM-SKT-004 JP.M.AKS-DGM-MUH-005 BUTTON 3LF0122-4AC00 0-1 3*20A SWITCH...
- Page 16 PIZZA OVEN (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları...
- Page 17 PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.8+8 PRODUCT NAME P.CODE PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 CHASSIS COVER SHEET YSC-KNX.EPZ-PN-0218 LAMP JP.M.ELK-LMB-AMP-002 LC1K0901M7 CONTACTOR JP.M.ELK-KNT-KNT-020 85-450 °C THERMOSTAT M.ELK-MEK-TRM1-002 TICKET M.AKS-ETK-ALM-013 BUTTON SOCKET M.AKS-DGM-SKT-004 BUTTON JP.M.AKS-DGM-MUH-005...
- Page 18 PIZZA OVEN (ELECTRICAL) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları...
- Page 19 PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.9+9 PRODUCT NAME P.CODE PG-16 CABLE FITTING JP.M.ELK-RKR-PLS-001 CHASSIS YSC-KNX.EPZ-PN-0218 COVER SHEET LAMP JP.M.ELK-LMB-AMP-002 LC1K0901M7 CONTACTOR JP.M.ELK-KNT-KNT-020 M.ELK-MEK-TRM1-002 85-450 °C THERMOSTAT TICKET M.AKS-ETK-ALM-013 M.AKS-DGM-SKT-004 BUTTON SOCKET JP.M.AKS-DGM-MUH-005 BUTTON 3LF0122-4AC00 0-1 3*20A SWITCH...
-
Page 20: Helectric Circuit Schema
PIZZA OVEN (ELECTRICAL) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları... - Page 21 PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları...
- Page 22 PIZZA OVEN (ELECTRICAL) Kasap Tip Dik Buzdolapları...
