 Over Voltage Configuration

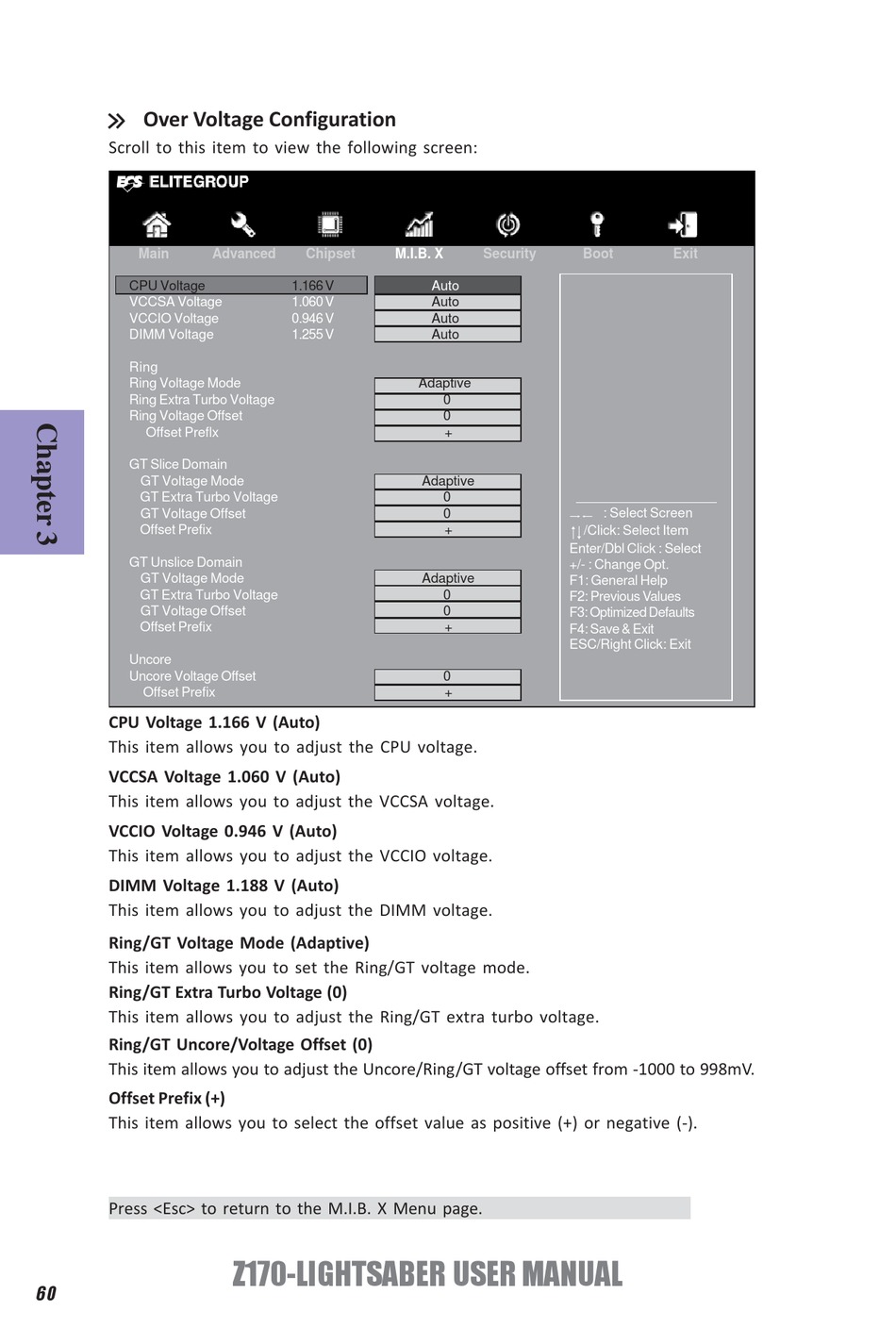

Scroll to this item to view the following screen:
Main
CPU Voltage
VCCSA Voltage
VCCIO Voltage
DIMM Voltage
Ring
Ring Voltage Mode
Ring Extra Turbo Voltage
Ring Voltage Offset
Offset Preflx
GT Slice Domain
GT Voltage Mode
GT Extra Turbo Voltage
GT Voltage Offset
Offset Prefix
GT Unslice Domain
GT Voltage Mode
GT Extra Turbo Voltage
GT Voltage Offset
Offset Prefix
Uncore
Uncore Voltage Offset
Offset Prefix
CPU Voltage 1.166 V (Auto)
This item allows you to adjust the CPU voltage.
VCCSA Voltage 1.060 V (Auto)
This item allows you to adjust the VCCSA voltage.
VCCIO Voltage 0.946 V (Auto)
This item allows you to adjust the VCCIO voltage.
DIMM Voltage 1.188 V (Auto)
This item allows you to adjust the DIMM voltage.
Ring/GT Voltage Mode (Adaptive)
This item allows you to set the Ring/GT voltage mode.
Ring/GT Extra Turbo Voltage (0)
This item allows you to adjust the Ring/GT extra turbo voltage.
Ring/GT Uncore/Voltage Offset (0)
This item allows you to adjust the Uncore/Ring/GT voltage offset from -1000 to 998mV.
Offset Prefix (+)
This item allows you to select the offset value as positive (+) or negative (-).
Press <Esc> to return to the M.I.B. X Menu page.
