Mb Intelligent Bios X) Menu - Elitegroup Computer Systems Z170-LIGHTSABER User Manual

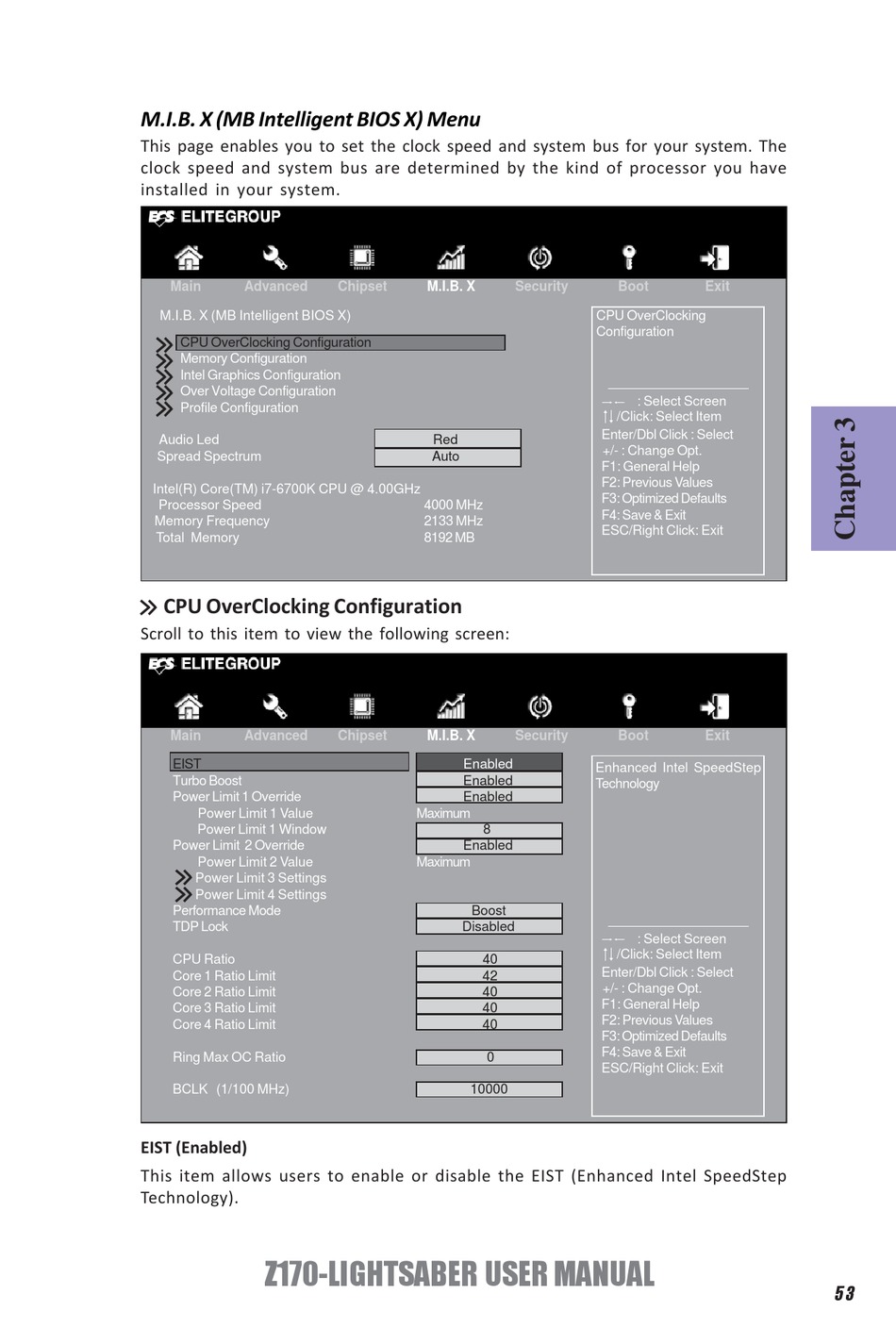

M.I.B. X (MB Intelligent BIOS X) Menu
This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.
Main Advanced
M.I.B. X (MB Intelligent BIOS X)
CPU OverClocking Configuration
Memory Configuration
Intel Graphics Configuration
Over Voltage Configuration
Profile Configuration
Audio Led
Spread Spectrum
Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz
Processor Speed
Memory Frequency
Total Memory
 CPU OverClocking Configuration
Scroll to this item to view the following screen:
Main Advanced
EIST
Turbo Boost
Power Limit 1 Override
Power Limit 1 Value
Power Limit 1 Window
Power Limit 2 Override
Power Limit 2 Value
Power Limit 3 Settings
Power Limit 4 Settings
Performance Mode
TDP Lock
CPU Ratio
Core 1 Ratio Limit
Core 2 Ratio Limit
Core 3 Ratio Limit
Core 4 Ratio Limit
Ring Max OC Ratio
BCLK (1/100 MHz)
EIST (Enabled)
This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep
Technology).
