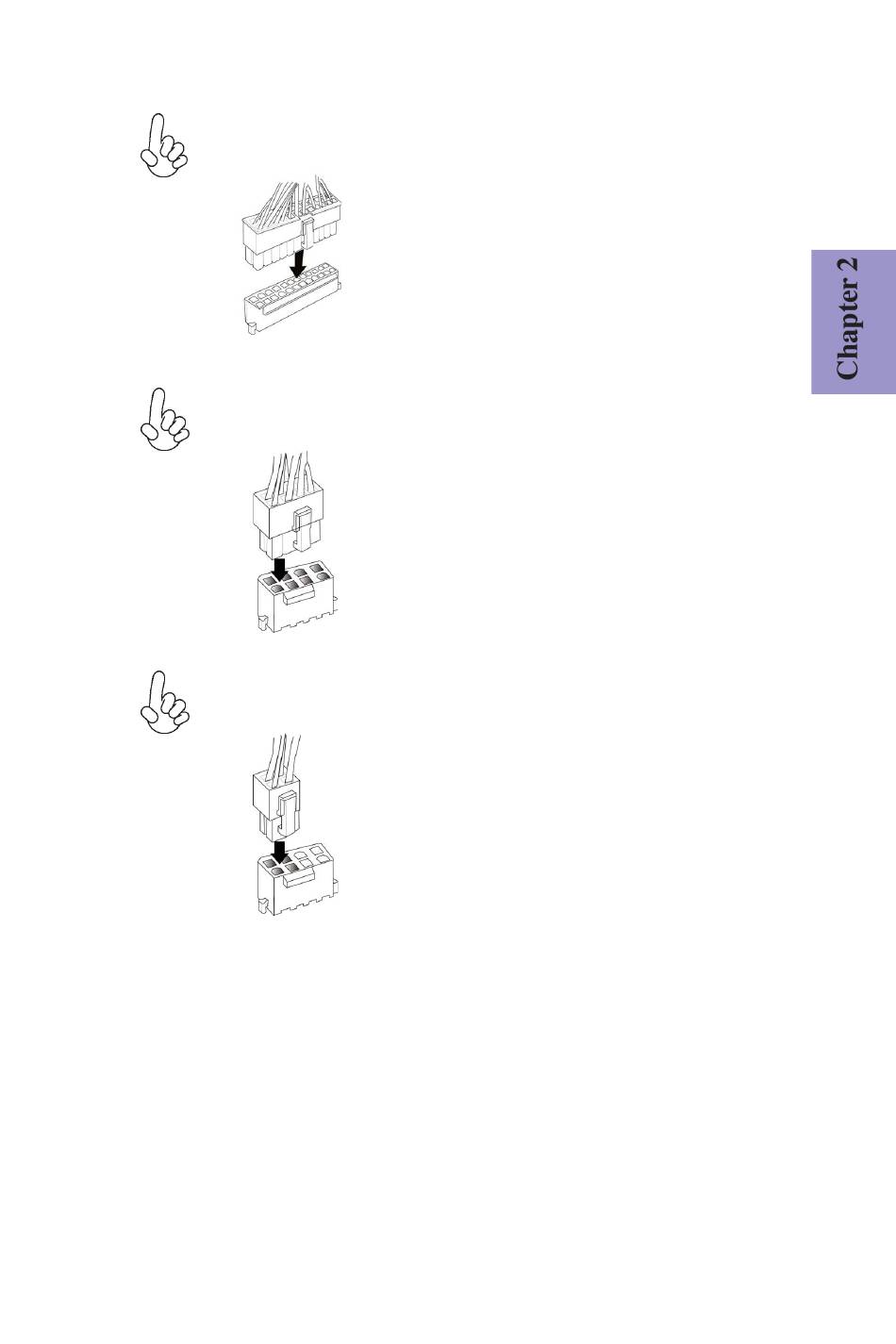

Connecting 24-pin power cable
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
24-pin power cable
Connecting 8-pin power cable
The ATX_12V power connector is used to provide power to the CPU.
8-pin power cable
Connecting 4-pin power cable
The ATX_12V power connector is used to provide power to the CPU.
4-pin power cable
Z170-LIGHTSABER USER MANUAL
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX match perfectly.
When installing 8-pin power cable, the
latches of power cable and the ATX_12V
match perfectly.
When installing 4-pin power cable, the
latches of power cable and the ATX_12V
match perfectly.
