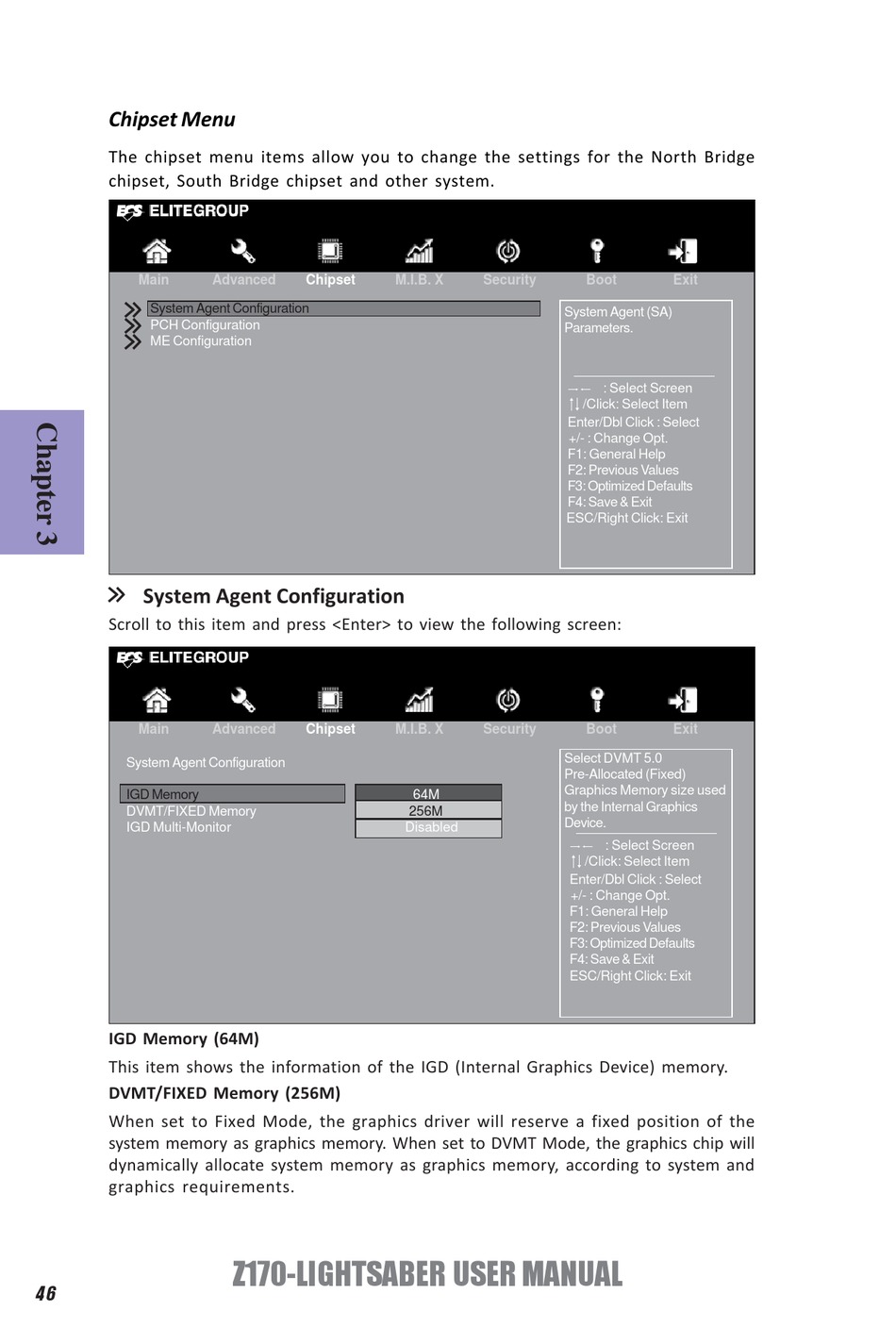

Chipset Menu - Elitegroup Computer Systems Z170-LIGHTSABER User Manual

Chipset Menu

The chipset menu items allow you to change the settings for the North Bridge
chipset, South Bridge chipset and other system.
Main
System Agent Configuration
PCH Configuration
ME Configuration
 System Agent Configuration
Scroll to this item and press <Enter> to view the following screen:
Main
System Agent Configuration
IGD Memory
DVMT/FIXED Memory
IGD Multi-Monitor
IGD Memory (64M)
This item shows the information of the IGD (Internal Graphics Device) memory.
DVMT/FIXED Memory (256M)
When set to Fixed Mode, the graphics driver will reserve a fixed position of the
system memory as graphics memory. When set to DVMT Mode, the graphics chip will
dynamically allocate system memory as graphics memory, according to system and
graphics requirements.
46
Advanced Chipset
Advanced Chipset
Z170-LIGHTSABER USER MANUAL
M.I.B. X Security
System Agent (SA)
Parameters.
M.I.B. X Security
Select DVMT 5.0
Pre-Allocated (Fixed)
Graphics Memory size used
64M
by the Internal Graphics
256M
Device.
Disabled
Boot Exit

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Boot Exit

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
