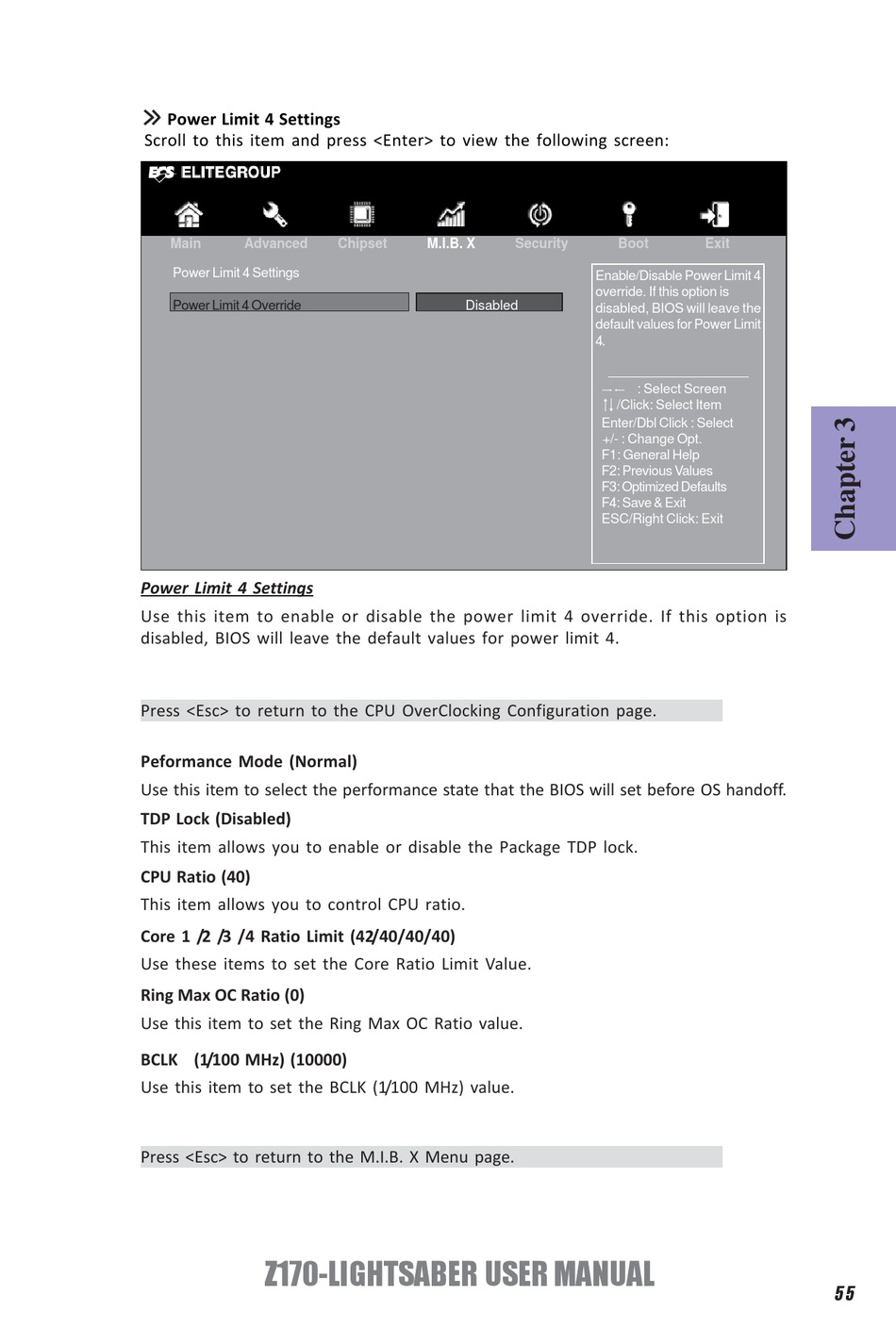

 Power Limit 4 Settings
Scroll to this item and press <Enter> to view the following screen:
Main Advanced
Power Limit 4 Settings
Power Limit 4 Override
Power Limit 4 Settings
Use this item to enable or disable the power limit 4 override. If this option is
disabled, BIOS will leave the default values for power limit 4.
Press <Esc> to return to the CPU OverClocking Configuration page.
Peformance Mode (Normal)
Use this item to select the performance state that the BIOS will set before OS handoff.
TDP Lock (Disabled)
This item allows you to enable or disable the Package TDP lock.
CPU Ratio (40)
This item allows you to control CPU ratio.
Core 1 /2 /3 /4 Ratio Limit (42/40/40/40)
Use these items to set the Core Ratio Limit Value.
Ring Max OC Ratio (0)
Use this item to set the Ring Max OC Ratio value.
BCLK (1/100 MHz) (10000)
Use this item to set the BCLK (1/100 MHz) value.
Press <Esc> to return to the M.I.B. X Menu page.
