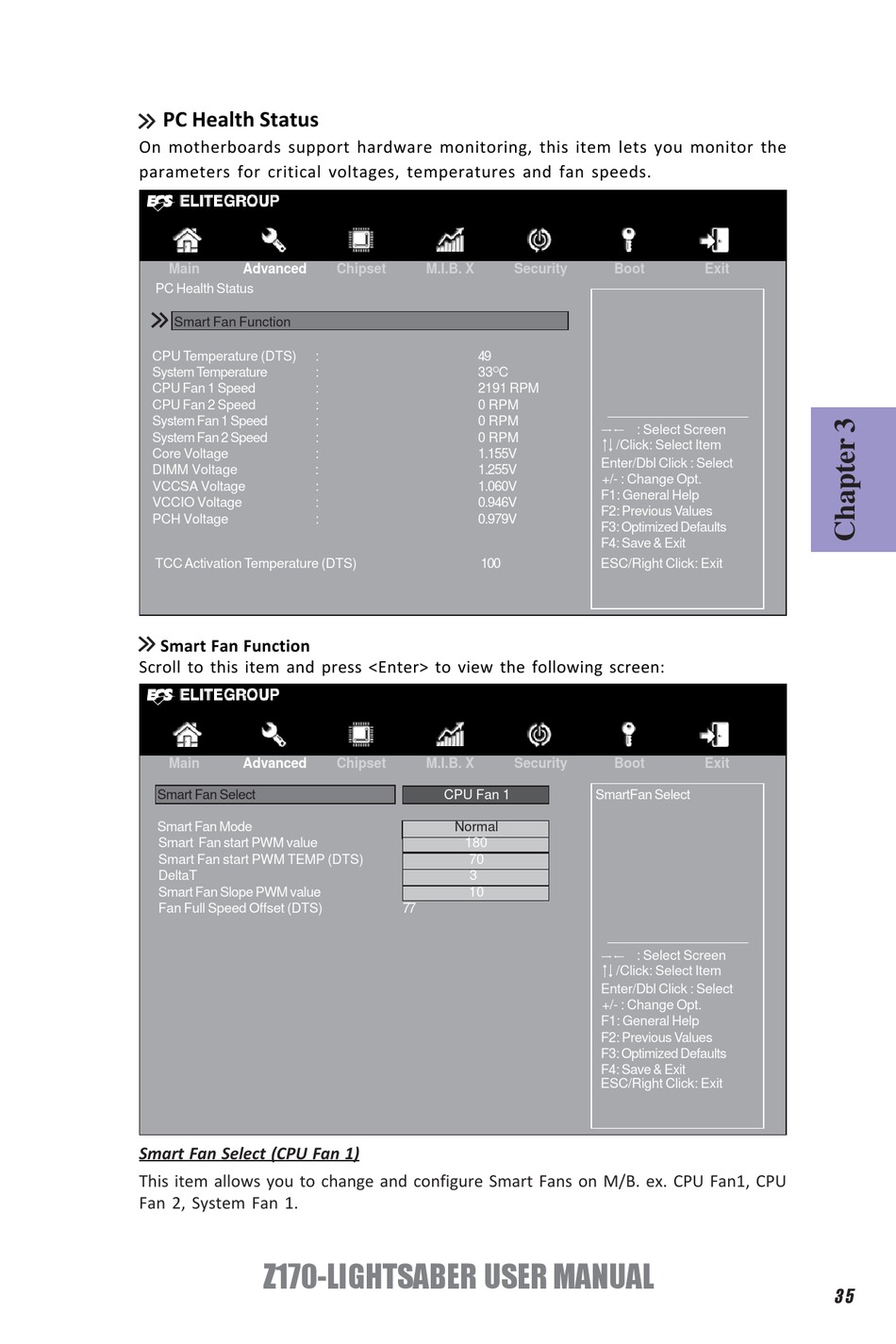

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Main Advanced
PC Health Status
Smart Fan Function
CPU Temperature (DTS)
System Temperature
CPU Fan 1 Speed
CPU Fan 2 Speed
System Fan 1 Speed
System Fan 2 Speed
Core Voltage
DIMM Voltage
VCCSA Voltage
VCCIO Voltage
PCH Voltage
TCC Activation Temperature (DTS)
 Smart Fan Function
Scroll to this item and press <Enter> to view the following screen:
Main Advanced
Smart Fan Select
Smart Fan Mode
Smart Fan start PWM value
Smart Fan start PWM TEMP (DTS)
DeltaT
Smart Fan Slope PWM value
Fan Full Speed Offset (DTS)
Smart Fan Select (CPU Fan 1)
This item allows you to change and configure Smart Fans on M/B. ex. CPU Fan1, CPU
Fan 2, System Fan 1.
Z170-LIGHTSABER USER MANUAL
Chipset M.I.B. X
: 49
: 33
: 2191 RPM
: 0 RPM
: 0 RPM
: 0 RPM
: 1.155V
: 1.255V
: 1.060V
: 0.946V
: 0.979V
100
Chipset M.I.B. X
CPU Fan 1
Normal
180
70
3
10
77
Security Boot
O C

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Security Boot
SmartFan Select

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Exit
Exit
35
