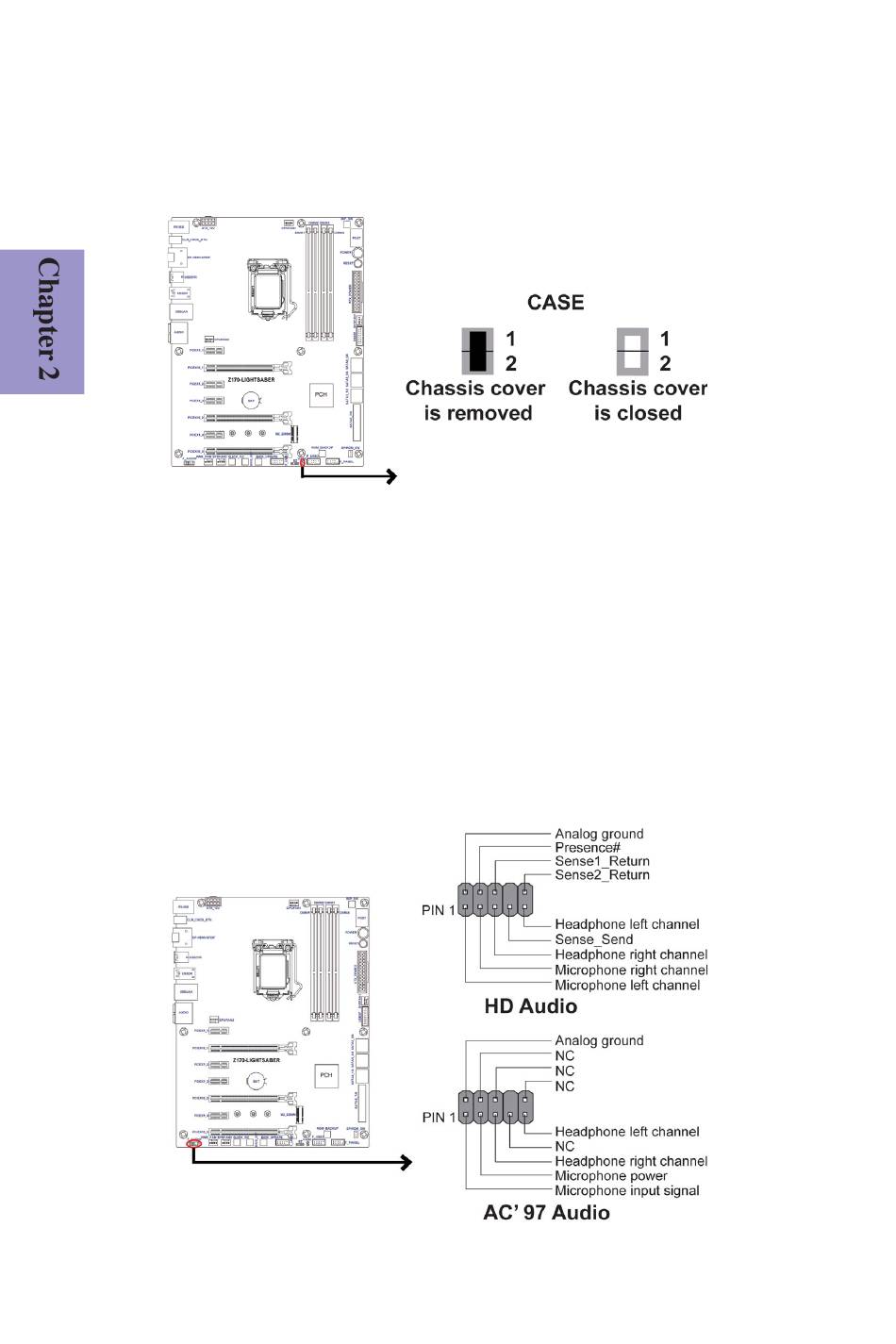

5. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
6. F_AUDIO: Front Panel Audio Header
The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an
AC'
97 front panel audio to HD onboard headers,
please set as below picture.
Z170-LIGHTSABER USER MANUAL
20
