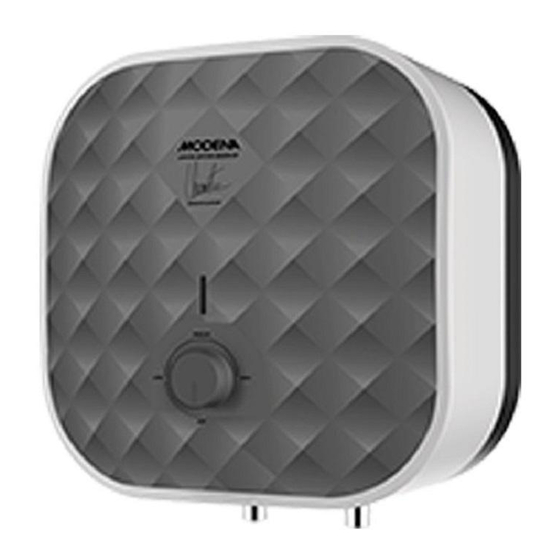

- Page 1 User Manual Book Electric Storage Water Heater Sano Series ES 10 CS, ES 15 CS, ES 30 CS...
-
Page 2: Table Of Contents
Part 6: Troubleshooting Part 7: Disposal of Used Product Part 8: Specification Appendix: Wiring Diagram This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 3: Part 1: Important Safety Information
If the flexible power cord is damaged, a special power cord that is provided by manufacturer must be selected, and replaced by professional maintenance personnel. Contact MODENA Customer Care for help. For the correct operation of the appliance, it is necessary to pay attention that the maximum inlet water pressure is 0.75 MPa, and... - Page 4 If there is a large amount of water leak, please contact MODENA Customer Care for repair. The pressure relief valve needs to be checked and cleaned regularly, so as to make sure it will not be blocked.
-
Page 5: Part 2: Product Introduction
PART 2: PRODUCT INTRODUCTION Knob Indicator Light Hot Water Cold Water Outlet Inlet ES 10 CS ES 15 CS ES 30 CS 324 mm 368 mm 440 mm 324 mm 368 mm 440 mm 315 mm 340 mm 388 mm 66 mm 66 mm 66 mm... - Page 6 After selecting a proper location, determine the position of two holes that are used for the installation of the expansion bolts with hook. Make two holes on the wall by using a chopping bit with the depth matching to the size of the expansion bolts that attached with the water heater.
-
Page 7: Plumbing Connection
Plumbing Connection The dimension of inlet and outlet water pipe is G1/2. Connect the pressure relief valve with the inlet water of the water heater. In order to avoid the leakage when connecting the pipelines, the provided rubber seal must be installed by the end of the threads to ensure the connections are leak proof. - Page 8 If the user wants to make a multi-ways supply system, refer to the method shown in figure below for connection of the plumbing. Power Cord Pressure Relief Valve Water Inlet Valve Triple Joint Cold Water Hot Water Shower Head Joint Inlet Outlet...
-
Page 9: Part 4: How To Use
PART 4: HOW TO USE First, open the outlet valve, and then open the inlet valve. The water heater gets filled with the water. When the water flows out of the outlet pipe, it implies that the water heater has been filled fully with water. -
Page 10: Part 5: Maintenance
Tank cleaning frequency depends on the hardness of the water in each location where this water heater is applied. Cleaning must be performed by MODENA or special maintenance services. Contact MODENA Customer Care if necessary. The water heater is equipped with a thermal switch, which cuts off the power supply of the heating element upon overheating water or the absence of water in the water heater. -
Page 11: Part 6: Troubleshooting
Manual Reset Button Manual Reset Button WARNING! Non-professionals are not allowed to disassemble the thermal switch to do reset. Please contact professionals of MODENA to maintain this water heater. Otherwise, MODENA will not take responsibility of any accidents. PART 6: TROUBLESHOOTING... -
Page 12: Part 7: Disposal Of Used Product
PART 7: DISPOSAL OF USED PRODUCT This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help preventing the potential negative consequences for the environment and human health, that otherwise could be caused by the inappropriate... -
Page 13: Appendix: Wiring Diagram
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this manual are schematic and may not match your product exactly. Values stated on the machine labels or in the documentation accompanying it are obtained in laboratory in accordance with the relevant standards. - Page 14 12/20...
