Summary of Contents for Modena Sano Series

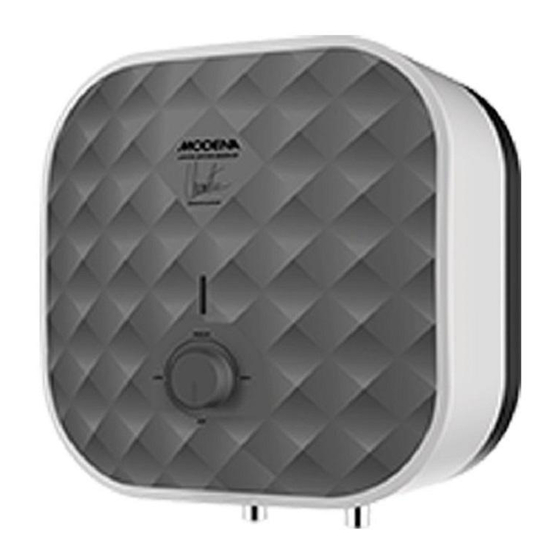

- Page 1 User Manual Book (Electric Storage Water Heater) Sano Series ES 10 CS, ES 15 CS, ES 30 CS...
-
Page 2: Introduction
Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. -
Page 3: Table Of Contents
CONTENTS PAGE. Introduction Part 1 : Product Introduction Part 2 : Important Safety Information Part 3 : Installation Part 4 : How to Use Part 5 : Maintenance Part 6 : Troubleshooting Part 7 : Disposal of Used Product ... -
Page 4: Part 1: Product Introduction
If the flexible power cord is damaged, a special supply cord provided by manufacturer must be selected, and replaced by professional maintenance personnel. Contact MODENA Call Center for help. For the correct operation of the appliance, it is necessary to pay attention that the maximum inlet water pressure is 0.75 MPa, and the minimum inlet water pressure is 0.1 MPa... -
Page 5: Part 3: Installation
The pressure relief hole shall not be blocked under any circumstances; otherwise, the water heater may get damaged, even resulting on accidents. If there is a large amount of water leak, please contact MODENA Call Center for repair. - Page 6 Install the power socket in the wall. The requirements for the power socket are as follows: 250V/10A, single phase, three electrodes. It is recommended to place the power socket on the top right of the water heater. The height of the socket to the ground shall not be less than 1.8m. L (Brown) E (Yellow/Green) ≥1.8 m...
-
Page 7: Part 4: How To Use
Part 4: How to Use First, open the outlet valve, and then open the inlet valve. The water heater gets filled with the water. When the water flows out of the outlet pipe, it implies that the water heater has been filled fully with water. -
Page 8: Part 5: Maintenance
Tank cleaning frequency depends on the hardness of the water in each location where this water heater is applied. Cleaning must be performed by MODENA or special maintenance services. Contact MODENA Call Center if necessary. -
Page 9: Part 6 : Troubleshooting
Warning: Non-professionals are not allowed to disassemble the thermal switch to do the reset. Please contact professionals of MODENA to maintain this electric storage water heater. Otherwise, MODENA will not take responsibility of any accidents. Part 6: Troubleshooting Problem Possible Cause... -
Page 10: Part 9 : Internal Wiring Diagram
Magnesium Anode Waterproof Grade IPX4 IPX4 IPX4 Type of Installation Vertical Vertical Vertical Dimension 324 x 324 x 315 mm 368 x 368 x 340 mm 440 x 440 x 420 mm 13.0 kg Net Weight 7.5 kg 9.6 kg Specifications of this appliance may change without notice to improve the quality of the product. - Page 11 11/20...
