CyberData 011539 Installation Quick Reference page 2

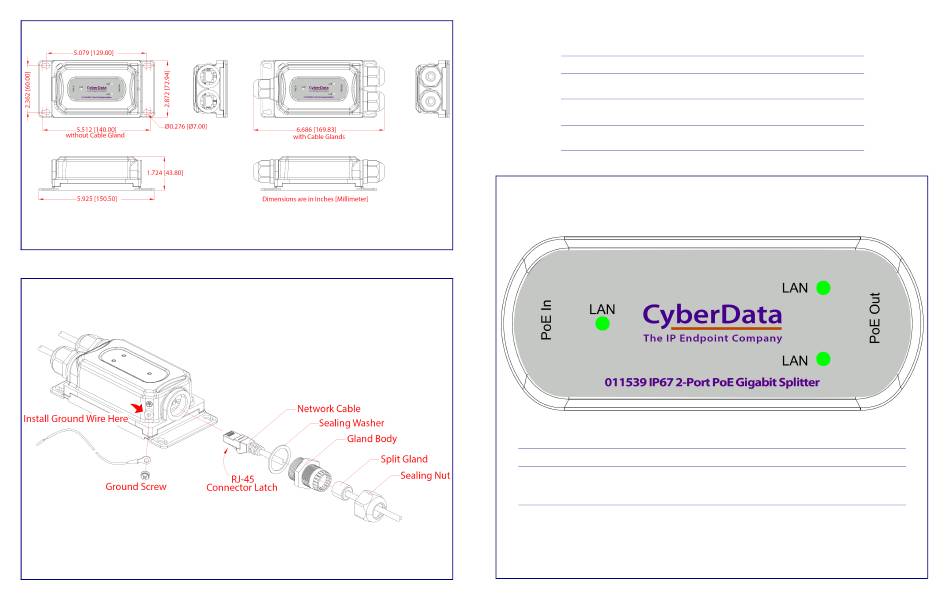

Dimensions
IP67 Cable Gland Detail
© 2021, CyberData Corporation, ALL RIGHTS RESERVED 931843A Quick Reference
Powering on the IP67
The switch is powered by an 802.3bt or 802.3at network switch or Injector. Below is a chart that describe the input and output details.
Input
802.3bt Type 4 (90W)
802.3bt Type 3 (60W)
802.3at (25.5W)
LED Function
LED Color
LAN Green
Quick Reference
Power Chart
Corresponding Output
each 802.3at output port supports up to 29.5W
802.3at output port 1 supports 29.5W and
802.3at output port 2 supports 25W
each 802.3at output port supports 10W
Function
Off: No device is connected to the corresponding port.
Light: Indicates the link through that port is successfully established.
Blink: Transmitting data and power.
931843A © 2021, CyberData Corporation, ALL RIGHTS RESERVED
