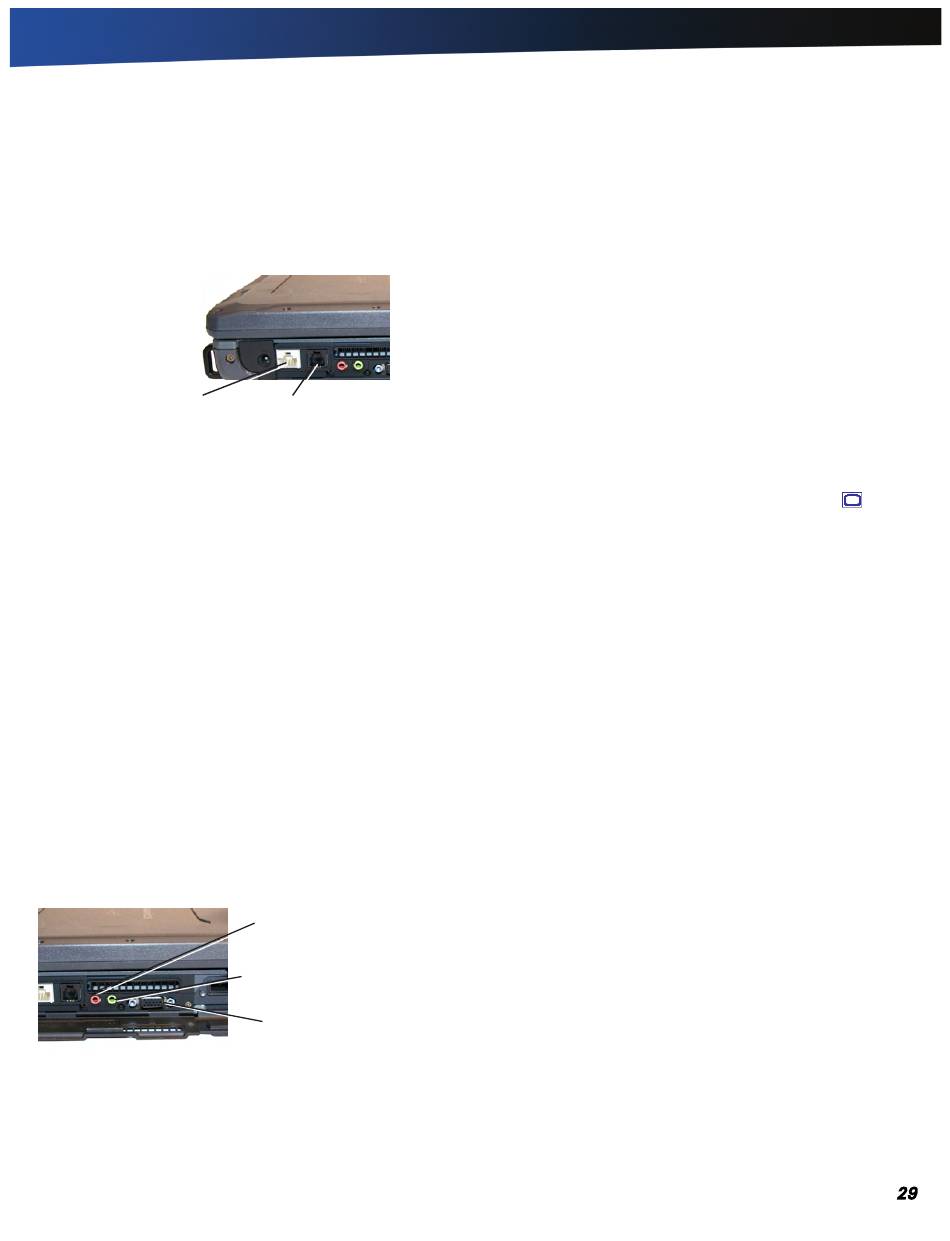

Ethernet (LAN)
With the built-in Ethernet LAN, you can make LAN connections
with 10/100/1000 Mbps connection speed. To use the network
feature, connect an Ethernet cable from the network jack on
the left side of the computer to a network jack or hub on your
network.
Ethernet Port (RJ45)
Fax/Data Modem
You can use the fax/modem to connect to the Internet to send
and receive data using the 56 Kbps V.92 protocol. When used
with fax software, it can be used as a fax at 14.4 Kbps. In some
countries, local regulations may not permit the use of the fax/
modem designed for this system. In this case, you may use a
PC Card modem. To use the fax/data modem port, connect
a phone cable from the modem port on the left side of the
computer to a telephone jack.
CAUTION
Plug your modem into an analog telephone jack
only. Most homes use analog lines. Do not use digital lines,
such as the PBX and ISDN systems found in many offices.
Digital lines may damage your modem.
To reduce the risk of fire, only use a No. 26 AWG or larger
telecommunication line cord.
Audio Devices
Audio devices are easy to connect with the audio ports
accessible from the left side of the computer. You can plug an
external microphone (or an audio line-in device) into the line-in
jack. Amplified speakers or headphones connect to the line-
out jack.
General Dynamics Itronix 72-0146-001
Modem Port (RJ11)
Microphone Jack
Headphone / Speaker Jack
External Monitor Port
Making Connections
External Monitor or Video Device
You may use an external monitor simultaneously with your
notebook's display, instead of your notebook's display, or as
an extension of your notebook's display. To attach an external
monitor, do the following:
4.
Connect the video signal cable from the external monitor (or
the VGA adapter) to the external monitor port on the left side of
your computer.
5.
Connect the power cable from the external monitor to a power
outlet and turn on the monitor.
6.
Read the monitor manual for additional instructions.
Using Simultaneous Display
Your computer takes advantage of Windows
capability, allowing you to use your computer for presentation
purposes. To use simultaneous display, connect an external
display device to the external monitor port. You can then
toggle the display output location by pressing
will output to your computer's display, the attached external
display, or both displays simultaneously. Keep pressing
until you have the output option you want.
Using Extended Display
When using an external monitor you can extend your desktop.
This allows you to open and view one program on the external
monitor while viewing a different program on your laptop's
display.
Windows
7:
®
1.
Select
Start, Control Panel, Appearance and Personaliza-
tion
.
2.
Under
Display
select
Connect to an external display
3.
Select the drop-down menu next to
click
Extend these displays
dual-display
®
FN+F2
. It
FN+F2
.
Multiple Displays
and
. Then click
OK
.
