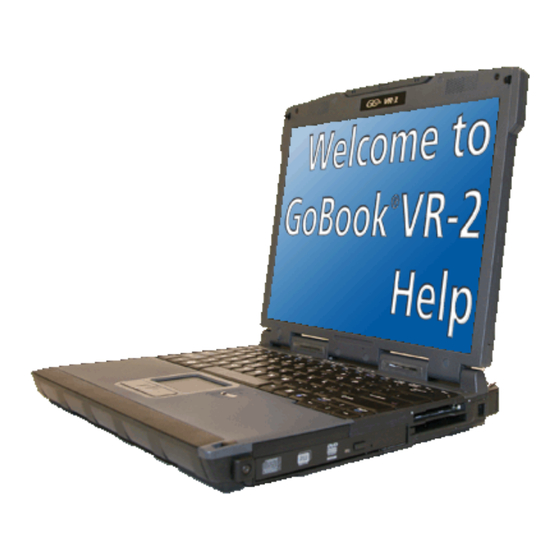

General Dynamics Itronix GoBook VR-2 Help Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

VR-2 Help
Page 1 of 70

Getting Started

Congratulations on your purchase of the GoBook VR-2 computer! Your new GoBook VR-2 features the most
innovative advances in portable computing technology. It combines state-of-the-art ergonomics with sophisticated
architecture to provide you with a personal computer that is compact, powerful, and easy to use.
Designed for a wide range of general, business, and personal productivity applications, the semi-rugged, wireless
ready GoBook VR-2 is an ideal choice wherever you need a computer; in the office, at home, and on the road.
Your GoBook VR-2 is both expandable and portable, supporting the features you expect in a desktop computer but
with the mobility of a laptop.
This online document, GoBook VR-2 Help, contains all the information you need to set up and use your GoBook
VR-2. For information on printing, navigating or otherwise using GoBook VR-2 Help, see the
How to Use This Help
System
topics. If you have suggestions for how we may improve this document, please see
Documentation
Feedback.

Unpacking Your System

Inside your packaging you will find:
Standard Parts
Standard Features
Optional Features
Optional Parts and Accessories
Where to Look For Information
About Your Computer
file://C:\Documents and Settings\harwoodm\Local Settings\Temp\~hh3F7F.htm
4/26/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoBook VR-2 and is the answer not in the manual?

Questions and answers

Related Manuals for General Dynamics Itronix GoBook VR-2

Summary of Contents for General Dynamics Itronix GoBook VR-2

  • Page 1: Getting Started

    Designed for a wide range of general, business, and personal productivity applications, the semi-rugged, wireless ready GoBook VR-2 is an ideal choice wherever you need a computer; in the office, at home, and on the road. Your GoBook VR-2 is both expandable and portable, supporting the features you expect in a desktop computer but with the mobility of a laptop.
  • Page 2 VR-2 Help Page 2 of 70 About Windows The First Time. . . Before using your computer, install the battery and then attach the computer to AC power. Installing the Battery: 1. Line up the battery connectors. 2. Press gently on the battery until it clicks into place.

  • Page 3: Startup Problems

    NOTE If the AC adapter is connected and functioning properly, the Power LED on the AC adapter should be lit as well as the External Power LED on the GoBook VR-2. If the AC adapter is connected but the unit will still not turn on, make sure the electrical outlet you are using works.
  • Page 4 VR-2 Help Page 4 of 70 WARNING! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children and dispose of used batteries promptly Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents CAUTION The computer may be damaged if exposed to contaminants.

  • Page 5: Tips For New Owners

    VR-2 Help Page 5 of 70 If the product exhibits a distinct change in performance, indicating a need for service Do not upgrade or service this computer without prior authorization from the manufacturer. Damage caused by servicing that is not authorized may void your warranty Before performing any manufacturer authorized service or upgrade, first follow these instructions: Prevent damage from static electricity by following ESD precautions Place the computer on a clean, flat surface...

  • Page 6: Getting Familiar With Your Computer

    VR-2 Help Page 6 of 70 Getting Familiar with Your Computer Before you begin using your GoBook VR-2, read this section to familiarize yourself with its main features and components. Tour of Your Computer This section shows all views of your computer with a summary of key features.

  • Page 7: Top View

    VR-2 Help Page 7 of 70 Fingerprint The optional swipe style fingerprint scanner can be used for all standard Scanner security needs Touchpad Use for navigation Power Button Turns computer on or off Application Programmable button Launch Button Battery Removable Lithium-Ion battery Keyboard Task Two task lights located in the display hinges directly below the display Lights...

  • Page 8: Left Side View

    Security Slot The Security Slot can be used with a standard laptop-locking device, such as a Kensington Lock. You can connect the GoBook VR-2 to a large object with the lock to prevent theft of your GoBook VR-2. See the...

  • Page 9: Back Edge View

    VR-2 Help Page 9 of 70 Feature Description Front Handle Mount The front soft handle mount, located on both sides of the unit, is used with the optional soft handle CRMA Express CRMA Express Radio bay Optical Disk Drive CD-RW, DVD/CD-RW, or DVD-RW/CD-RW Smart Card Reader Smart Card Reader or EXPRESS Card EXPRESS Card Slot...

  • Page 10: Bottom View

    VR-2 Help Page 10 of 70 using the 56 Kbps V.90 or V.92 protocol, and send and receive faxes at 14.4 Kbps. NOTE In some countries, local regulations may not permit the use of the fax/modem designed for this system. In this case, you may use a PCMCIA modem Serial Port Connects your computer to serial devices such a fax/modem or a serial...

  • Page 11: Keyboard Basics

    VR-2 Help Page 11 of 70 Keyboard Basics The GoBook VR-2 features: Full size keys on a 85-key keyboard Twelve function keys Application launch button (programmable button) Embedded numeric keypad USB port that enables you to connect an external keyboard...

  • Page 12: Arrow Keys

    VR-2 Help Page 12 of 70 Arrow Keys The arrow keys are defined by the software application. The UP ARROW key usually moves the cursor up one line. In some cases, you can use the up arrow to make selections from menus and scrollable list boxes. The DOWN ARROW key usually moves the cursor down one line.

  • Page 13: Numeric Keypad

    VR-2 Help Page 13 of 70 Fn+PgUp Home Home Functions as the “Home” key Functions as the “End” key Fn+PgDn Fn+ Right Touchpad Toggles the touchpad on and off on/off Ctrl Keyboard Toggles the keyboard task lights on and off Fn+ Left Shift Task Lights...

  • Page 14: Windows Keys

    Keyboard Task Lights Your GoBook VR-2 is equipped with two task lights located in the display hinges directly below the display. The purpose of these task lights, or ‘headlights’, is to illuminate the keyboard to permit typing in a dimly lit or darkened environment.

  • Page 15: Led Status Indicators

    VR-2 Help Page 15 of 70 To Use the Headlights (task lights) Press Fn+Shift to toggle the lights on or off. NOTE If the light does not come on, try adjusting the headlights by pressing Fn+F5 to turn the brightness up. Press Fn+F4 to dim the headlights Press Fn+F5 to brighten the headlights LED Status Indicators...
  • Page 16 VR-2 Help Page 16 of 70 Icon Function Description Steady Computer is on and operating Power Green Blinking Computer has suspended to RAM Green Steady Power is on and external power is applied from the AC External Power Green Adapter connected to a wall outlet, a vehicle-mounted dock, a vehicle power adapter, or an office dock Steady Battery is charging...
  • Page 17 VR-2 Help Page 17 of 70 Green Caps Lock Steady Keyboard is in Scroll Lock mode Scroll Lock Green Steady Wireless LAN radio is on WLAN Green Communication Steady Bluetooth radio is on Bluetooth Green Communication Steady GPS radio is on Green Communication Steady...

  • Page 18: Touchpad Buttons

    Display The GoBook VR-2 features a 13.3-inch, XGA, outdoor-viewable, color display with an optional integrated touch screen. The Colorvue™ Transmissive display technology uses a built-in backlight for easy reading in most ambient light conditions. The backlight remains on whenever the display is on. The transmissive display enhancement provides improved outdoor visibility and even works well in sunlight.
  • Page 19 VR-2 Help Page 19 of 70 5. Select OK to save and exit. Adjusting Display Brightness Function keys can increase or decrease the display brightness.Press Fn + F6 to decrease display brightness Press Fn + F7 to increase display brightness Adjusting Display Resolution 1.

  • Page 20: Opening And Closing The Display

    VR-2 Help Page 20 of 70 6. Select Apply and OK to save and exit. 7. Now you can drag the programs you want to view onto the external monitor. Opening and Closing the Display To open the display lid, slide the display lid latch to the right and lift up the lid, then tilt it to a comfortable viewing position.

  • Page 21: Adjusting The Volume

    VR-2 Help Page 21 of 70 The GoBook VR-2's memory capacity is 512 to 4096MB with one user accessible memory socket supporting a 512MB to 2048MB memory module. Please consult your dealer if you need to add more memory. Refer to the Memory Upgrade section for information about replacing the memory module.

  • Page 22: Smart Card Or Express Card Slot (Option)

    VR-2 Help Page 22 of 70 1. First, exit the application using the card. 2. Left-click on the Safely Remove Hardware icon on the taskbar and stop the card operation. 3. Press the slot eject button once to pop it out; then press it again to eject the PC Card. Smart Card or EXPRESS Card Slot (option) Your computer comes with a Smart Card Reader or EXPRESS Card slot (option).

  • Page 23: The Hard Disk Drive

    One Express Card/54 slot OR One Smart Card slot (option) The Hard Disk Drive Your GoBook VR-2 features a removable hard disk to provide high-capacity storage and fast access. Windows and most programs are stored here. Your GoBook VR-2 identifies the hard disk drive as drive C.

  • Page 24: Pc Card Slot

    VR-2 Help Page 24 of 70 Removing a DVD or CD 1. Make sure the computer is not accessing the DVD drive. 2. Press the eject button and pull the tray all the way out. 3. Pick up the disk by the edges and remove it from the tray. Push the tray into the computer until it closes fully. CAUTION When the computer is reading from a DVD or CD, the Optical Disk Drive LED will flash on.

  • Page 25: Fingerprint Scanner (Option)

    The optional swipe style fingerprint scanner can be used for all standard security uses. The optional fingerprint scanner provides a greater level of security and convenience for your GoBook VR-2 and your private data. Use the fingerprint scanner instead of passwords for the following:...

  • Page 26: Making Connections

    Before connecting peripherals, first read the manual included with the peripheral for connection and operation instructions. You can purchase most of these and other options directly from authorized dealers. If you are a mobile worker, you may want to purchase one of the GoBook VR-2's docking solutions such as the Vehicle Dock Office Dock.

  • Page 27: Attaching An External Monitor Or Video Device

    CAUTION Avoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent possible damage to the battery, the GoBook VR-2 does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).

  • Page 28: Wireless Communication

    USB external keyboard to one of the USB ports. You can also connect a USB mouse or other pointing device to one of the ports. Wireless Communication Your GoBook VR-2 supports up to four integrated radios for superior wireless communication (One radio per category listed below). file://C:\Documents and Settings\harwoodm\Local Settings\Temp\~hh3F7F.htm 4/26/2007...

  • Page 29: Crma Express Wwan (Option)

    VR-2 Help Page 29 of 70 Wireless Local Area Network (WLAN) Wireless Wide Area Network (WWAN) with CRMA Express Global Positioning System (GPS) Bluetooth Since each customer's radio configuration is unique, please read the radio help installed on your desktop and refer to the manufacturer documentation to setup and use your radio(s).

  • Page 30: Bluetooth (Option)

    VR-2 Help Page 30 of 70 1xEV-DO Evolution Data Only or Evolution Data Optimized (EV-DO) is a 3G wireless technology with average user download speeds ranging from 400 to 700 Kbps with peak rates up to 2.0 Mbps. When you spend a lot of time away from your desk, the faster speeds from EV-DO can lead to greater productivity.

  • Page 31: Improving Radio Coverage

    Bluetooth / Diversity Antenna Improving Radio Coverage Wireless connectivity between your GoBook VR-2 and wireless network access points is essential. Maintaining this wireless connectivity over a wide area is fundamental to the usefulness of the network. This makes the scope and reliability of radio coverage a primary concern.

  • Page 32: Operating With Battery Power

    VR-2 Help Page 32 of 70 1. Try all sides of a building to see which side provides the strongest radio signal. 2. Move from under trees. Pine needles absorb radio signals more than leaves. 3. Move away from overhead electrical wires. 4.

  • Page 33: Using A Battery Pack For The First Time

    VR-2 Help Page 33 of 70 mobile users A temperature sensor and memory device that stores information about the battery, such as how much charge is left and how many times it has been recharged Battery-low warning When the battery charge level becomes low, the battery alarm beeps or displays a warning on your screen. This tells you that the battery power is critically low (and you should save your work).

  • Page 34: Battery Calibration

    VR-2 Help Page 34 of 70 3. Slide the battery locks toward the outside of the computer to lock the battery and ensure they latch completely To remove the battery pack: 1. Plug in AC power and turn off the computer.

  • Page 35: Battery Charging

    VR-2 Help Page 35 of 70 The first time you use your computer After it has been stored for awhile If the gas gauge has become inaccurate. Every three months for optimum performance Windows Battery Calibration To run the Battery Calibration program select Start, All Programs, and Mobile Computer Tools. Next, select Battery Calibration.

  • Page 36: Monitoring Battery Power

    However, working in a hot environment, or working for long periods may raise the temperature. The GoBook VR-2 takes the following steps to lower temperature: 1. The cooling fan turns on automatically. You may feel air coming from a vent at the left side of the computer when this happens.

  • Page 37: Managing Power

    VR-2 Help Page 37 of 70 Turn off the computer and replace the discharged battery with a charged battery (See Battery Charging). NOTE Do not restart the computer until you have connected to an AC adapter or replaced the discharged battery with a charged battery.

  • Page 38: Low-Power States

    VR-2 Help Page 38 of 70 3. Change settings as desired. computer to computer to inactivity inactivity suspend, suspend, hibernate or hibernate or turn off the turn off the display. display. may shorten your battery life automatically and should only reset if the be used computer is...

  • Page 39: Battery Tips

    VR-2 Help Page 39 of 70 Battery Tips Tip 1. Avoid excessive heat and cold Your battery will last longer during the day if it is used, charged and stored between 50°F and 86°F (10°C and 30°C) Charge the battery nightly where the temperature will remain around 68°F (20°C). Your battery may not last as long through the day if you charge it at higher or lower temperatures Allow unrestricted airflow while the computer is connected to external power.

  • Page 40: Customizing Your Bios Settings

    VR-2 Help Page 40 of 70 Avoid or minimize using applications that keep the CPU busy a large percentage of the time. The following will help you determine if your system is running such applications: Identifying power wasting programs What to do if applications are keeping the CPU busy Tip 3.

  • Page 41: Using The Setup Utility

    VR-2 Help Page 41 of 70 allows modification of the computer's components and allows you to configure devices that are connected to it. This information is used to test and initialize components during boot up and to make sure everything runs properly when the system is operating.
  • Page 42 VR-2 Help Page 42 of 70 The Menu Bar The Setup Utility has six menu options in the Menu Bar (1) at the top of the window. Press the left or right arrow keys to cycle through these menu screens. Menu Description Information...

  • Page 43: The Information Menu

    VR-2 Help Page 43 of 70 Press Esc to exit any sub-menu Press Enter to make a selection or go into a sub-menu NOTE You can change the value of a field if it is enclosed in <brackets>. Navigation keys for a menu are shown at the bottom of the screen.

  • Page 44: The Main Menu

    VR-2 Help Page 44 of 70 Number If there is no primary master HDD, "Not Installed" displays Serial Number Displays the System Serial Number (30 characters) Asset Tag Displays the Asset Tag Number (32 characters) Number Product Name Displays the Product Name (up to 15 characters). This is "IX605" Manufacturer Displays the Manufacturer Name (up to 15 characters).

  • Page 45: The Advanced Menu

    VR-2 Help Page 45 of 70 power on F12 Multi-Boot Menu Enabled When enabled, the message "F12 to Disabled enter Multi Boot Menu" displays during POST The Advanced Menu Field Setting Function Stealth Mode Configuration sub- Configuring the stealth mode feature menu enables you to turn off sound and light such as the fan, beeps, and the...
  • Page 46 VR-2 Help Page 46 of 70 GPS devices are powered on or off when the system reboots WWAN Radio Wakeup Disabled This option determines the WWAN Enabled radio power when the system is suspended. When disabled, radio power is turned off before system enters standby state.

  • Page 47: Stealth Mode Configuration

    VR-2 Help Page 47 of 70 Stealth Mode Configuration Stealth mode is a feature that allows the computer to be used in an environment where sound and light could be dangerous or disruptive. If stealth mode is disabled, the LEDs, fan, system beeps, audio, and display brightness operate normally.

  • Page 48: I/O Device Configuration

    VR-2 Help Page 48 of 70 range. Back-light Brightness Brightness is set to 0 across suspend, resume and boot. Fn+F1 restores brightness to the value it was set to before suspend. Additionally, Fn+F7 increases display brightness gradually. Fn+F6 decreases brightness gradually. Display brightness is preserved across suspend/resume and boot.

  • Page 49: Ide Configuration

    VR-2 Help Page 49 of 70 Serial Port A Enabled User can configure this serial port when set Disabled to enabled. Base I/O address: Sets the base I/O address for this serial port. Interrupt: IRQ3 Sets the interrupt request of this serial port. IRQ4 Serial Port B Enabled...

  • Page 50: The Security Menu

    VR-2 Help Page 50 of 70 IDE Controller Enabled If enabled, both the PATA and Disabled SATA IDE Controllers are enabled. If disabled, both the PATA and SATA IDE controllers are disabled. HDC Configure as PATA Only Sets the Harddisk Controller Configuration Type.
  • Page 51 VR-2 Help Page 51 of 70 Note: This is the Security screen as seen when both Supervisor and User passwords are installed. Field Setting Function Enter Supervisor Password controls access to the Setup Supervisor Utility Password Password Power on Enabled If enabled, system will ask for password on post time.

  • Page 52: The Boot Menu

    VR-2 Help Page 52 of 70 * Not displayed if Supervisor Password not installed. ** Not displayed if User Password not installed. The Boot Menu Use this menu to set the order of priority for devices from which the system will boot. Your computer automatically detects the available devices.

  • Page 53: The Exit Menu

    VR-2 Help Page 53 of 70 Internal EFI (Extensible Firmware Interface) shell boot capability which allows boot up from an alternate firmware chip set. Boot Advance Menu Field Function Boot Menu Type Normal -- Displays the normal boot menu. Advance --Displays boot drive order by device name. (Device Name) First listed drive is the primary boot drive.

  • Page 54: Optional Equipment And Accessories

    NOTE Contact your authorized dealer if you decide to perform a key component upgrade. Additionally, the GoBook VR-2 has several equipment and accessory options to further enhance your mobile computing experience. This section highlights some of the most popular accessories used with the GoBook VR-2. Click here for a complete list of optional peripherals and accessories.

  • Page 55: Office Dock

    VR-2 Help Page 55 of 70 Office Dock The GoBook VR-2's Office Dock enables you to use it as a desktop computer. Once setup, the dock provides drop-in convenience with no cables to attach or detach from your GoBook VR-2. Simply place the computer in the dock and turn it on.

  • Page 56: Vehicle Dock Features

    The market is flooded with hundreds of AC power line surge suppressors advertising high performance surge protection; only a few of them actually provide adequate protection. This section provides guidelines for selecting a quality surge suppressor to be used with your GoBook VR-2, and it helps identify a few sources for products with acceptable performance.

  • Page 57: Selecting The Right Equipment

    Users who increase memory demands - by adding additional programs, for example - may notice a slowdown in operating speed, and wish to increase memory. The GoBook VR-2 comes with one user accessible memory socket supporting a 512MB to 1024MB memory module for memory upgrades. Please consult your dealer if you need to add more memory.

  • Page 58: Replacing A Memory Card

    VR-2 Help Page 58 of 70 CAUTION First read and follow the guidelines in the Safety section. Replacing a Memory Card CAUTION Memory modules can be easily damaged by static electricity. Leave the module inside its static-proof bag until it is ready for installation and make sure you are grounded before attempting this procedure. Removing a Memory Card 1.

  • Page 59: Miscellaneous Options

    VR-2 Help Page 59 of 70 "gold teeth" of the edge connector should no longer be visible when the card is fully inserted. (See image 3 above). 3. Press the card downwards so that it is flat inside the compartment. You may hear an audible click as the latches of the connector lock the card in place.

  • Page 60: Taking Care Of Your Ac Adapter

    VR-2 Help Page 60 of 70 The first time you use your computer, we recommend that you carefully read the Making Connections section and initialize the battery to ensure optimum battery performance Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents Slots and openings in the unit's case are for ventilation purposes.

  • Page 61: Battery Maintenance And Storage

    Avoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent possible damage to the battery, the GoBook VR-2 does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F) Charge the battery nightly where the temperature will remain around 20°C (68°F)

  • Page 62: Application Troubleshooting

    VR-2 Help Page 62 of 70 Disconnect external power and turn off the computer. Add a small amount of water to a soft cloth and clean the computer case. Do not use paper products because they can scratch the surface. Wipe off any excess liquid with a soft cloth.

  • Page 63: Display Troubleshooting

    VR-2 Help Page 63 of 70 The data on the hard disk could be corrupted. Run SCANDISK. Windows may be out of memory or resources. Exit Windows and restart Windows by selecting Start, Shut Down, Restart. Battery Troubleshooting The battery does not charge The batteries take much longer than seven hours to charge The batteries don’t last very long The gas gauge isn’t full after charging the battery...

  • Page 64: Miscellaneous Troubleshooting

    VR-2 Help Page 64 of 70 The modem dials and receives an answer but does not establish a connection Miscellaneous Troubleshooting The computer shuts off unexpectedly The speaker volume is too high or too low The computer won’t turn on The computer will not come on when the power button is pressed but the power, external power and battery indicators flash in sequence.

  • Page 65: Client Care Center (Ccc)

    Client Care Center (CCC) General Dynamics Itronix Corporation Client Care Center – The CCC is an internal central point for telephone warranty support for all GD-Itronix products. Our Technical Service Representatives know your product and provide input and support for problem resolution.
  • Page 66 Type of feedback (for example, need for clarification, grammatical errors, incorrect information) Your suggestion for how to improve the document Identification GoBook VR-2 (IX605) Copyright Notice © Copyright 2007 General Dynamics-Itronix Corporation. All rights reserved. No part of this document may be...
  • Page 67 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. The GoBook VR-2 (IX605) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment.
  • Page 68 REN for the calling area. The GoBook VR-2 (IX605) computer may be connected to the telephone network using the RJ-11 jack provided. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required.
  • Page 69 Check with your local solid-waste officials for details on recycling options or proper disposal. CAUTION Internal components of the GoBook VR-2 (IX605) computer will be damaged if exposed to contaminants. When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants such as liquids, rain, snow, and dust.
  • Page 70 VR-2 Help Page 70 of 70 Safety Information Enclosed with each IX605 Laptop computer is the radio specific safety information. Do not proceed without reviewing the information provided in that document. Do not proceed beyond a WARNING or CAUTION until the indicated conditions are fully understood and met. file://C:\Documents and Settings\harwoodm\Local Settings\Temp\~hh3F7F.htm 4/26/2007...
