LED Status Indicators

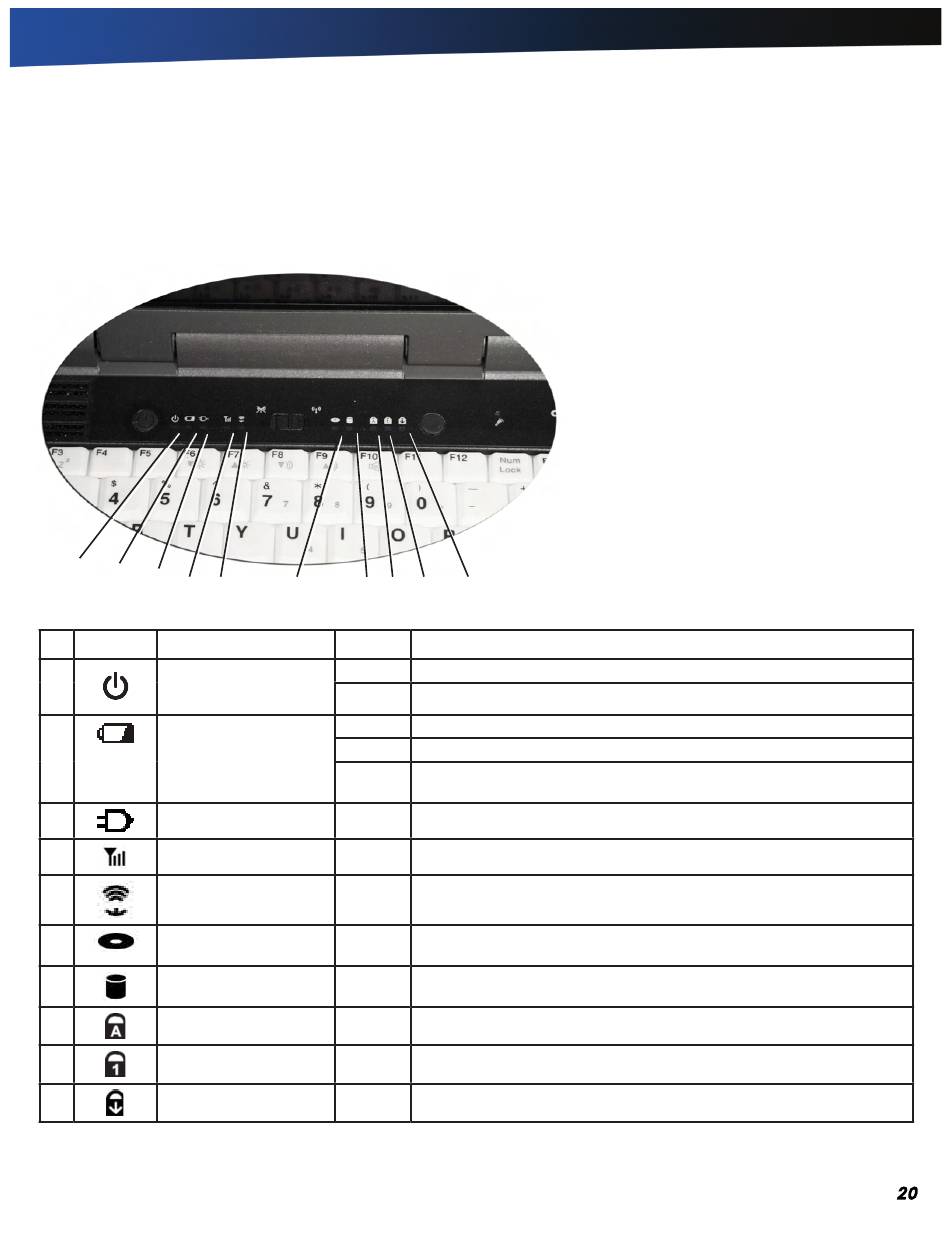

The activity indicators, located above the keyboard, light up
when a particular function of the computer is active. Each
indicator is marked with an icon.
1
2
3
4
# Icon Function
1 Power
2 Battery
3 External Power
4 WWAN Communication Lit
5 WLAN Communication
6 Media Bay
7 Disk Status (HW)
8 Caps Lock
9 Number Lock
10 Scroll Lock
General Dynamics Itronix 72-0146-001
5 6 7 8
LED
Lit
Flashing
Lit
Flashing
LED off
Lit
Lit
Lit
Lit
Lit
Lit
Lit
Getting Familiar With Your Computer
9 10
Description
Power is ON
Suspend to RAM
Battery charging
Low Battery
No battery / battery fully charged (will always be OFF without external
power connected to the unit)
External power is connected to the unit
WWAN radio is on
Wireless LAN, Bluetooth , and/or GPS radio(s) are on
®
The computer is equipped with a DVD/CDRW Combo, CD-ROM,
or DVD-ROM
The hard disk drive is being accessed
The keyboard is in Caps Lock mode
The keyboard is in Num Lock mode
The keyboard is in Scroll Lock mode
