If you need the Room Controller's serial number when troubleshooting, the number is on:

Serial number

•
•
To obtain a modstat in WebCTRL:
1
2
Replacing the
The Room Controller's 7-year Lithium BR2330 battery provides a minimum of 10,000
hours of data retention during power outages.
battery in a
networked Room
If the Room Controller sends a Low Battery alarm to WebCTRL, the Room Controller must
be sent to ALC for battery replacement. Request an RMA on the Dealer website
Controller
(http://accounts.automatedlogic.com).
To take the Room
If needed for troubleshooting or start-up, you can prevent WebCTRL Server from
communicating with the Room Controller.
Controller out of
service
1
2
3
a sticker on the back of the main controller board

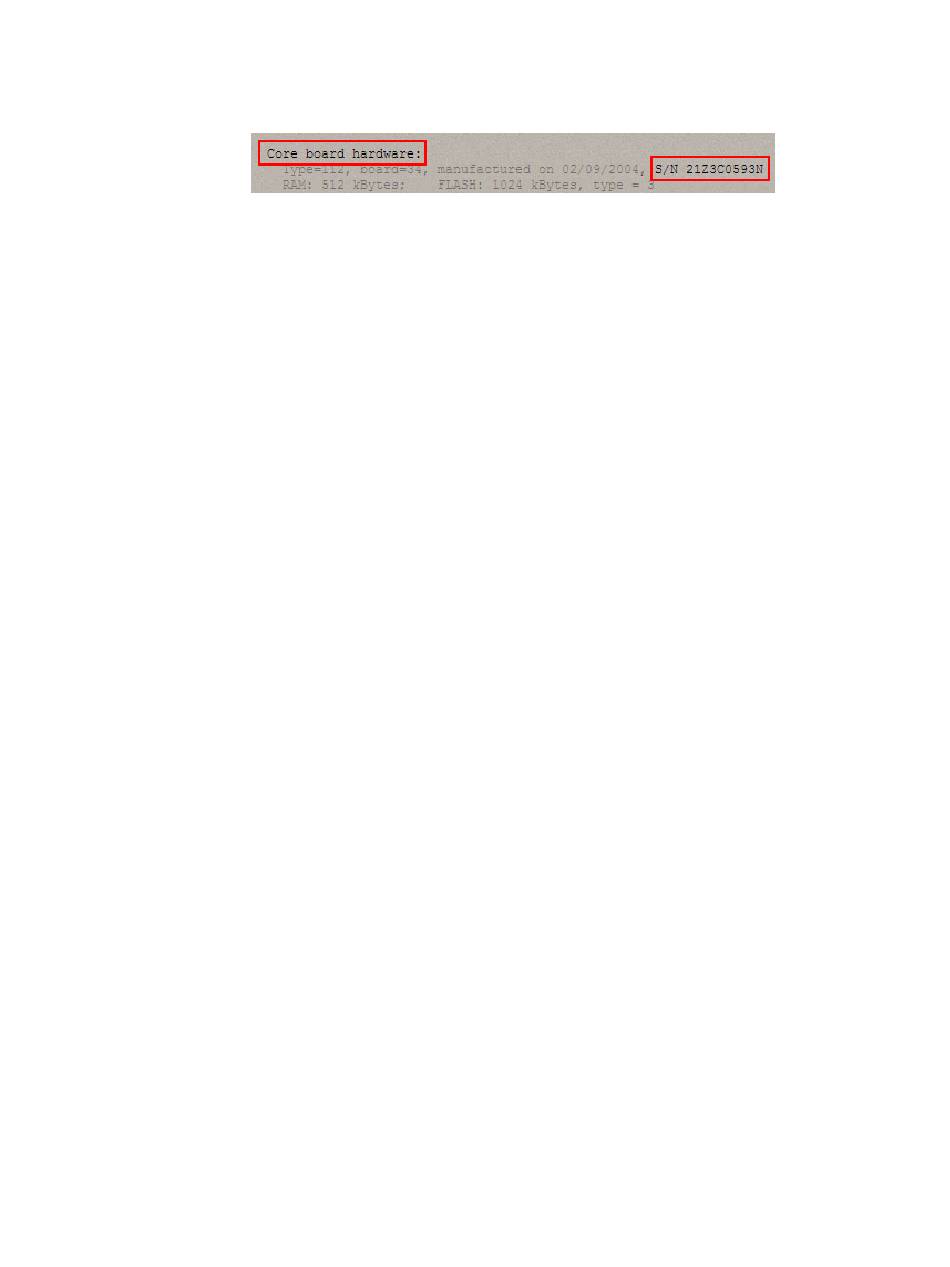

a Module Status report (Modstat) under Core (or Main) board hardware
Select the Room Controller in the NET tree.
On the Properties page, click Module Status.
Select the Room Controller in WebCTRL's NET tree.
On the Properties page, select the Out of Service checkbox.
Click OK.
