Serial Number; Replacing The Se6166'S Battery; To Take The Se6166 Out Of Service - Automated Logic SE6166 Technical Instructions

Serial number

If you need the SE6166's serial number when troubleshooting, the number is on:
•
•
To obtain a modstat in WebCTRL:
1
2
Replacing the
The SE6166's 10-year Lithium CR2032 battery provides a minimum of 10,000 hours of
data retention during power outages.
SE6166's
battery
If the SE6166 sends a Low Battery alarm to WebCTRL, replace the battery.
1
2
3
To take the
If needed for troubleshooting or start-up, you can prevent WebCTRL Server from
communicating with the SE6166.
SE6166 out of
service
1
2
3
SE6166 Controller • Rev. 4/13/2011
a sticker on the back of the main controller board

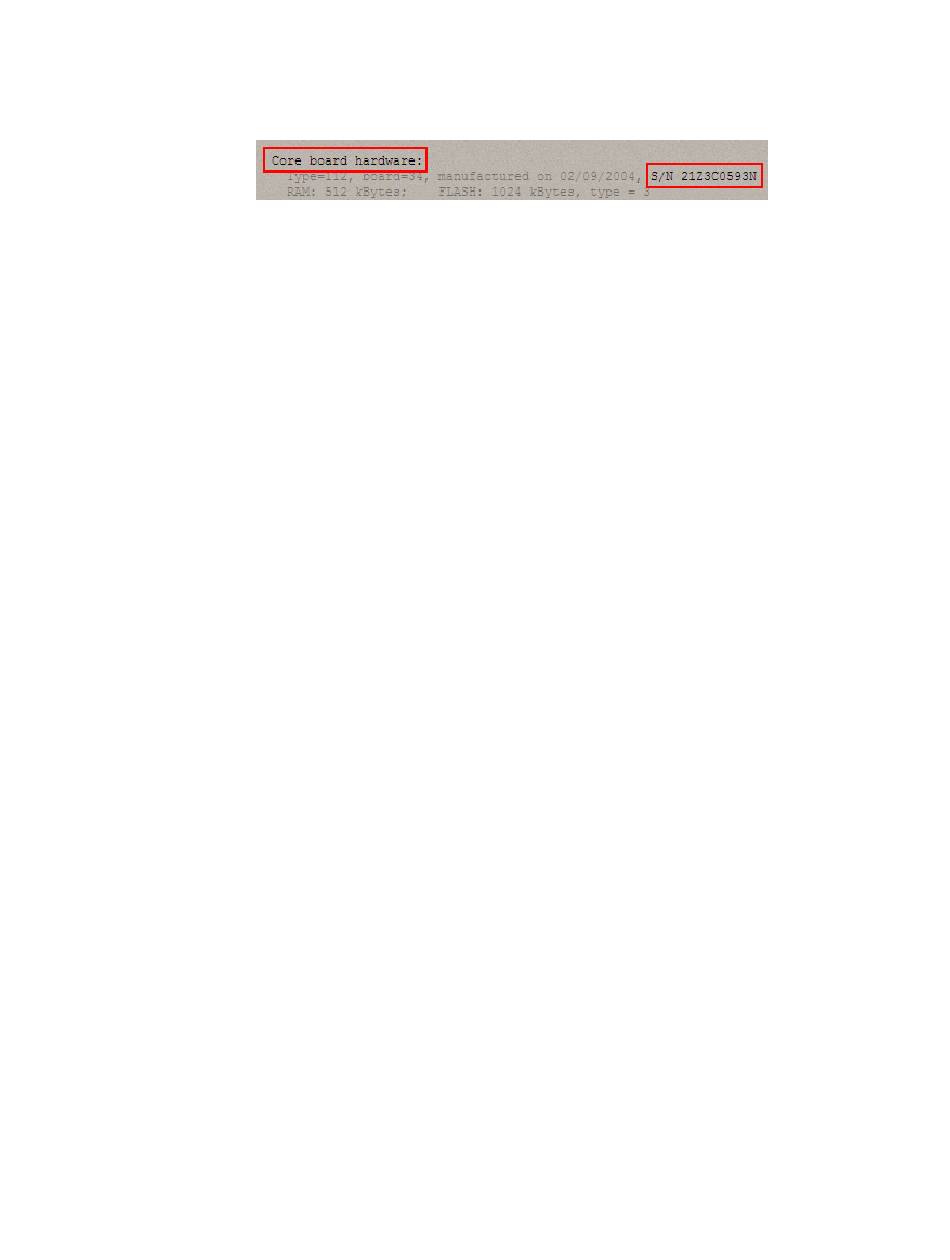

a Module Status report (Modstat) under Core (or Main) board hardware
Select the SE6166 in the NET tree.
On the Properties page, click Module Status.
Remove the battery from the controller, making note of the battery's polarity.
Insert the new battery into the controller, matching the polarity of the battery you
removed.
Download the SE6166.
Select the SE6166 in WebCTRL's NET tree.
On the Properties page, select the Out of Service checkbox.
Click OK.
23 © 2011 Automated Logic Corporation
