To Wire Inputs And Outputs - Automated Logic RC642 Technical Instructions

•
•
•
To wire inputs
1
and outputs
2
3
4
5
Acceptable voltage drop in the wire from the controller to the controlled device
Resistance (Ohms) of the chosen wire gauge
Maximum current (Amps) the controlled device requires to operate
Verify that the Room Controller's power and communications connections work
properly.
Remove power from the Room Controller.

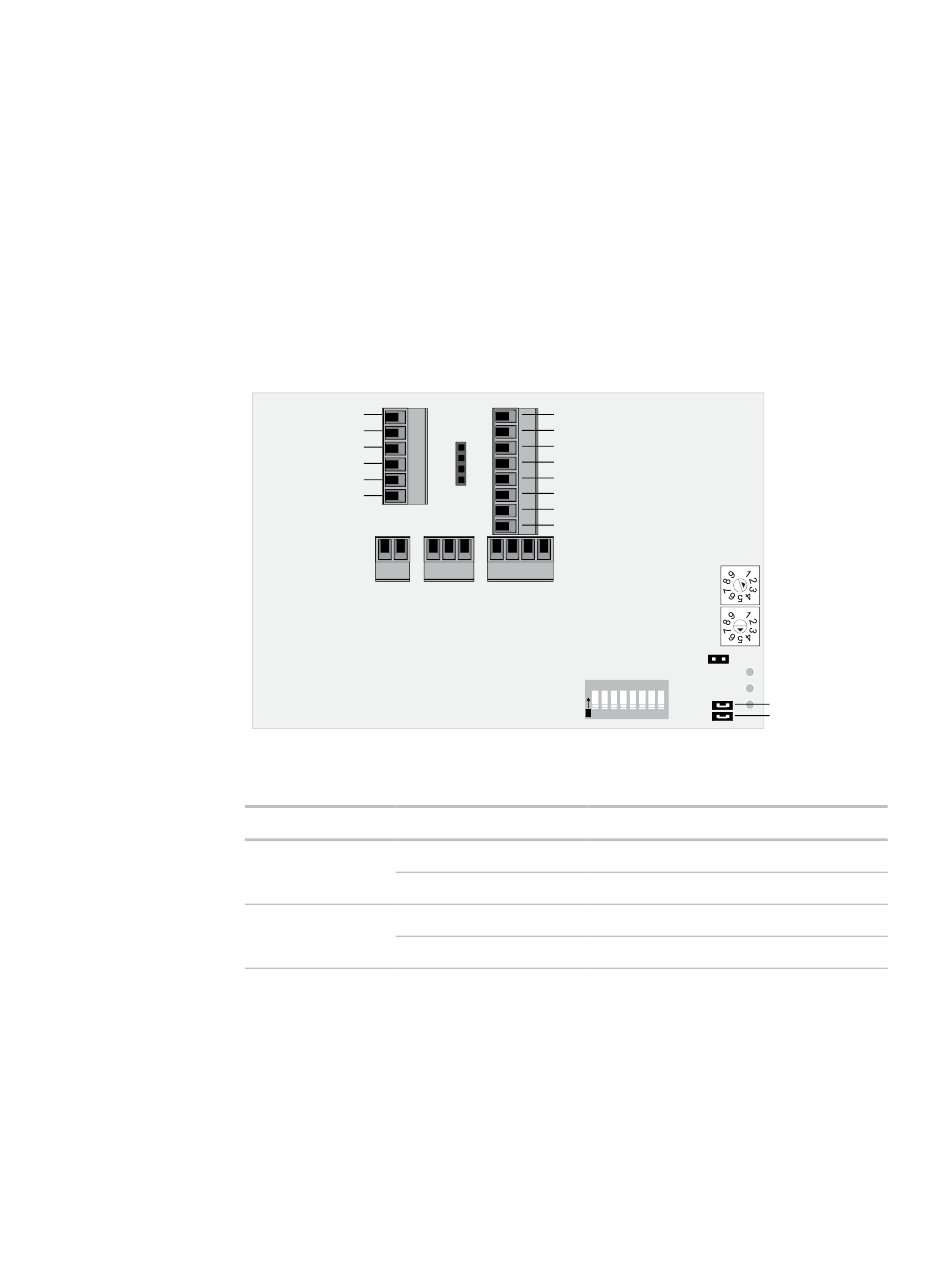

Connect input and output wiring to the Room Controller's screw terminals. See the
control program's point list in Appendix B (page 42) to determine which input and
output numbers to use.
Digital Output 1
Digital Output 2
Digital Output 3
Digital Output 4
Digital Output 5
Digital Output 6
Set the UI-3 and UI-4 jumpers.
If... Is used for...
Input 3 Dry contact
0-5 Vdc
Input 4 Dry contact
0-5 Vdc
Apply power to the Room Controller.
Analog Output 1
Analog Output 2
Ground
Input 1
Input 2
Input 3
Input 4
Ground
1 2 3 4 5 6 7 8
O
N
Then...
Put on UI-3 Jumper
Remove UI-3 Jumper
Put on UI-4 Jumper
Remove UI-4 Jumper
30
0
0
UI-3 Jumper
UI-4 Jumper
