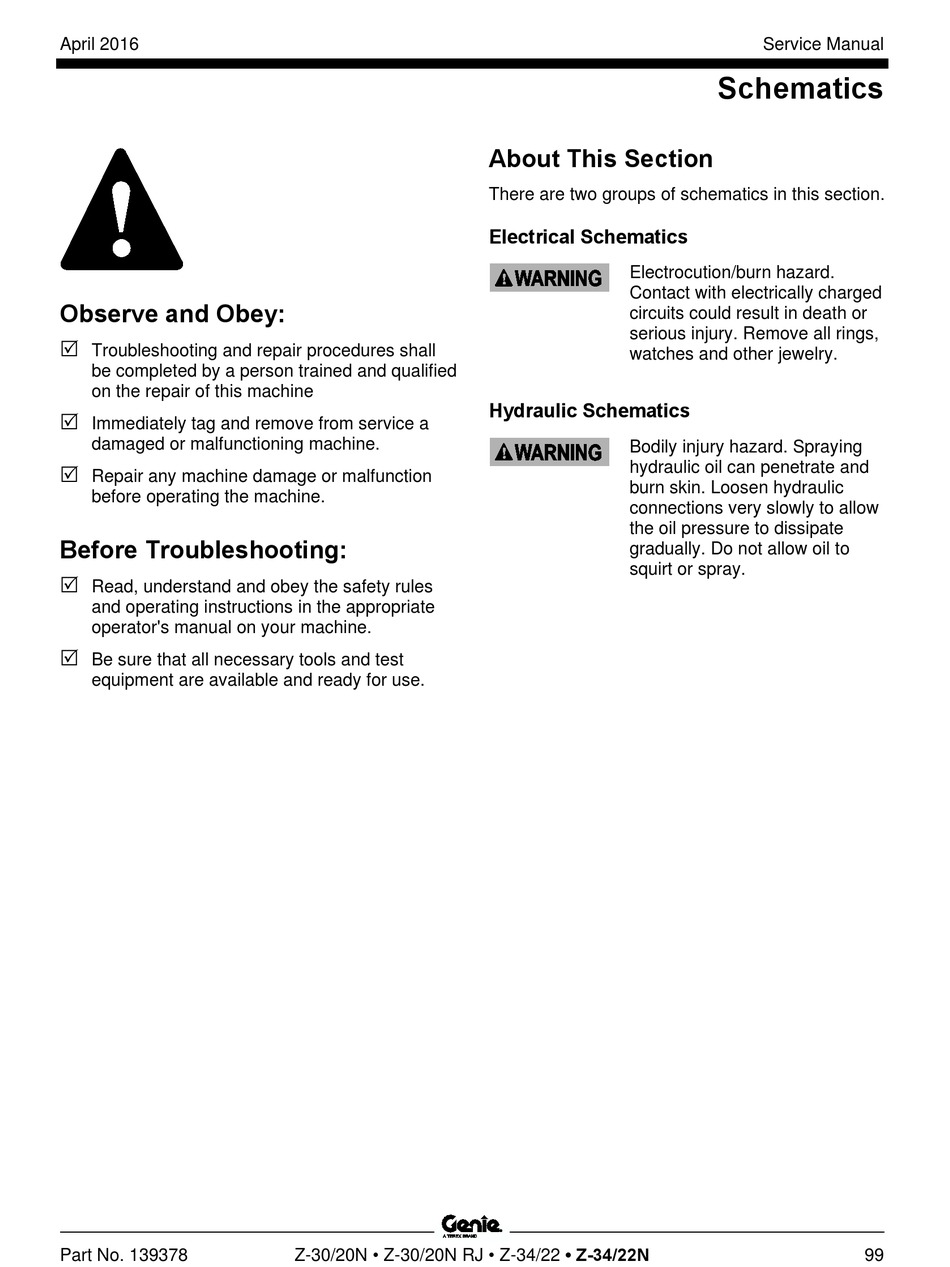

Schematics; Introduction - Terex Genie Z-30/20N RJ Service Manual

April 2016
Section 6 Schem atics
Observe and Obey:

Troubleshooting and repair procedures shall
be completed by a person trained and qualified
on the repair of this machine

Immediately tag and remove from service a
damaged or malfunctioning machine.

Repair any machine damage or malfunction
before operating the machine.
Before Troubleshooting:

Read, understand and obey the safety rules
and operating instructions in the appropriate
operator's manual on your machine.

Be sure that all necessary tools and test
equipment are available and ready for use.
Part No. 139378
Z-30/20N • Z-30/20N RJ • Z-34/22 • Z-34/22N
About This Section
There are two groups of schematics in this section.
Electrical Schematics
Electrocution/burn hazard.
Contact with electrically charged
circuits could result in death or
serious injury. Remove all rings,
watches and other jewelry.
Hydraulic Schematics
Bodily injury hazard. Spraying
hydraulic oil can penetrate and
burn skin. Loosen hydraulic
connections very slowly to allow
the oil pressure to dissipate
gradually. Do not allow oil to
squirt or spray.
Service Manual

Schematics

99
