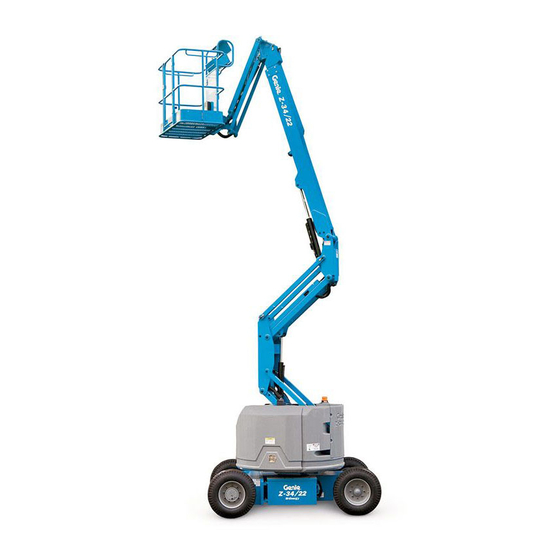

Service and Repair Manual
Z
-30/20N
®
Z
-30/20N RJ
®
Z
-34/22
®
Z
-34/22N
®
Serial Number Range
from Z30NF-22000
from Z34F-14000
from Z34NF-17000
This manual includes:
Repair procedures
Fault Codes
Electrical and
Hydraulic Schematics
For detailed maintenance
procedures, refer to the
appropriate Maintenance
Manual for your machine.
Part No. 1312293GT
Rev A
September 2021
