8.3. UI4N8, UI4D8, UI8N8, UI8D8 – MIXED UIN/UID MODULES
UI4N8
8 resistance
+ 4 current and 4 voltage inputs
n01
IN1
n02
IN2
n03
IN3
n04
IN4
n05
GND
n06
IN5
n07
IN6
n08
IN7
n09
IN8
n10
GND
n11
IN9
n12
IN10
n13
IN11
n14
IN12
n15
GND
n16
IN13
n17
IN14
n18
IN15
n19
IN16
n20
GND
Fig. 8.7 shows terminals placement of UIN/UID modules. Inputs are gathered into
groups to make connections easier. All the ground terminals of a particular module are
common, but separated from power supply and other modules. If it is necessary to make
measurements with different ground potentials, several UIN/UID modules have to be installed
into the MultiCon CMC-99/141 unit.
Most important parameters of UIN/UID modules:
272
UI4D8
4 current and 4 voltage
+ 8 digital inputs
n01
IN1
n02
IN2
n03
IN3
n04
IN4
n05
GND
n06
IN5
n07
IN6
n08
IN7
n09
IN8
n10
GND
n11
IN9
n12
IN10
IN17
n13
IN11
n14
IN12
n15
COM 9-12
n16
IN13
n17
IN14
IN18
n18
IN15
n19
IN16
n20
COM 13-16

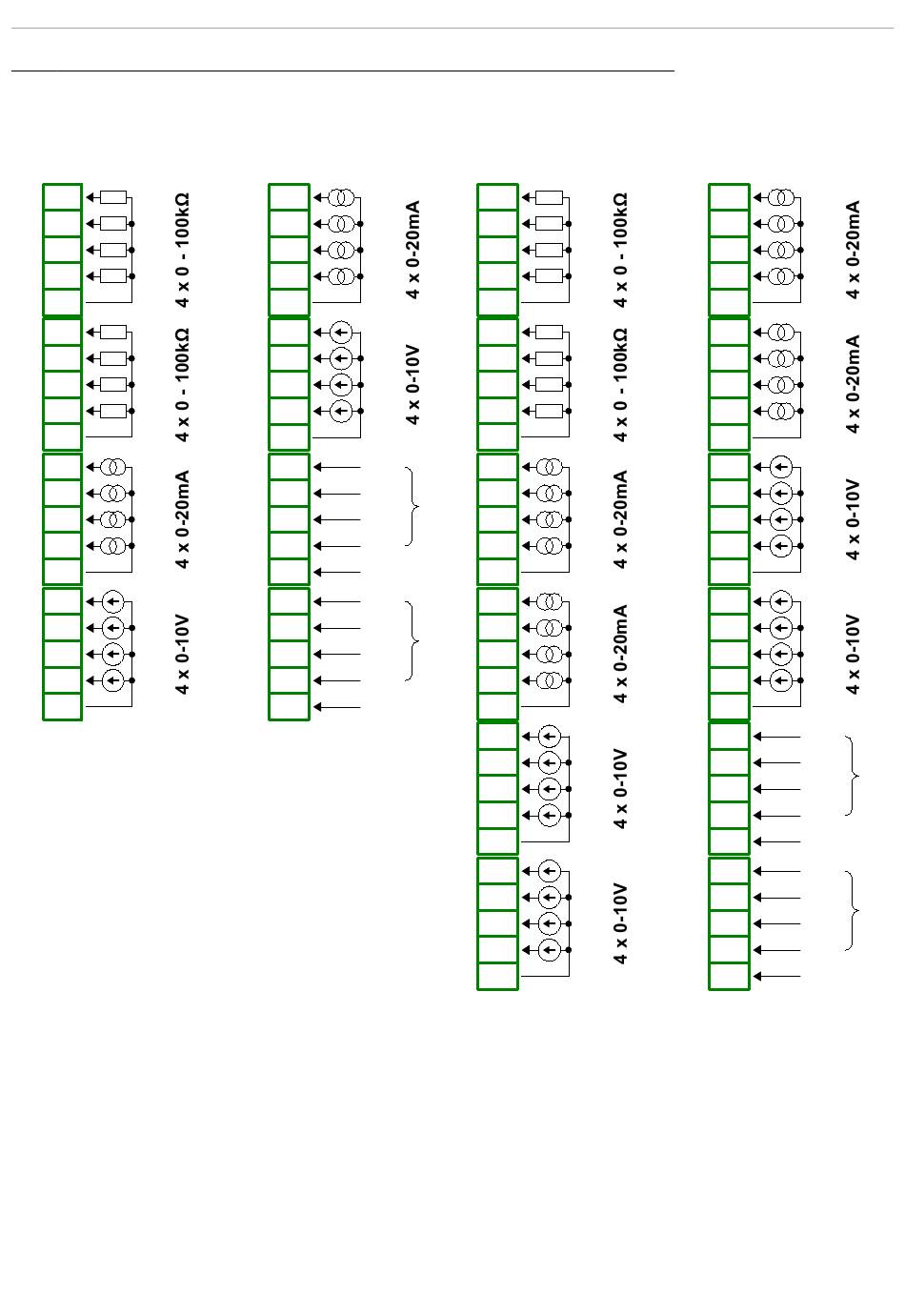

Fig. 8.7. Mixed measurement modules
UI8N8
8 resistance
+ 8 current and voltage inputs
n01
IN1
n02
IN2
n03
IN3
n04
IN4
n05
GND
n06
IN5
n07
IN6
n08
IN7
n09
IN8
n10
GND
n11
IN9
n12
IN10
n13
IN11
n14
IN12
n15
GND
n16
IN13
n17
IN14
n18
IN15
n19
IN16
n20
GND
n21
IN17
n22
IN18
n23
IN19
n24
IN20
n25
GND
n26
IN21
n27
IN22
n28
IN23
n29
IN24
n30
GND
UI8D8
8 current and voltage
+ 8 digital inputs
n01
IN1
n02
IN2
n03
IN3
n04
IN4
n05
GND
n06
IN5
n07
IN6
n08
IN7
n09
IN8
n10
GND
n11
IN9
n12
IN10
n13
IN11
n14
IN12
n15
GND
n16
IN13
n17
IN14
n18
IN15
n19
IN16
n20
GND
n21
IN17
n22
IN18
IN25
n23
IN19
n24
IN20
n25
COM 17-20
n26
IN21
n27
IN22
IN26
n28
IN23
n29
IN24
n30
COM 21-24
