Timing parameter block
The parameters of this block include:
– Period - the duration of one cycle of output pulse (the minimum value is 0.1
seconds),
Minimum ON time - minimum duration of a high state (after switching to a high
–
state, switching back is possible after Minimum On time), see Fig. 7.94,
Minimum OFF time - minimum duration of a low state (after switching to a low state,
–
switching back is possible after Minimum OFF time), see Fig. 7.94,
12
10
8
6
4
2
0
0

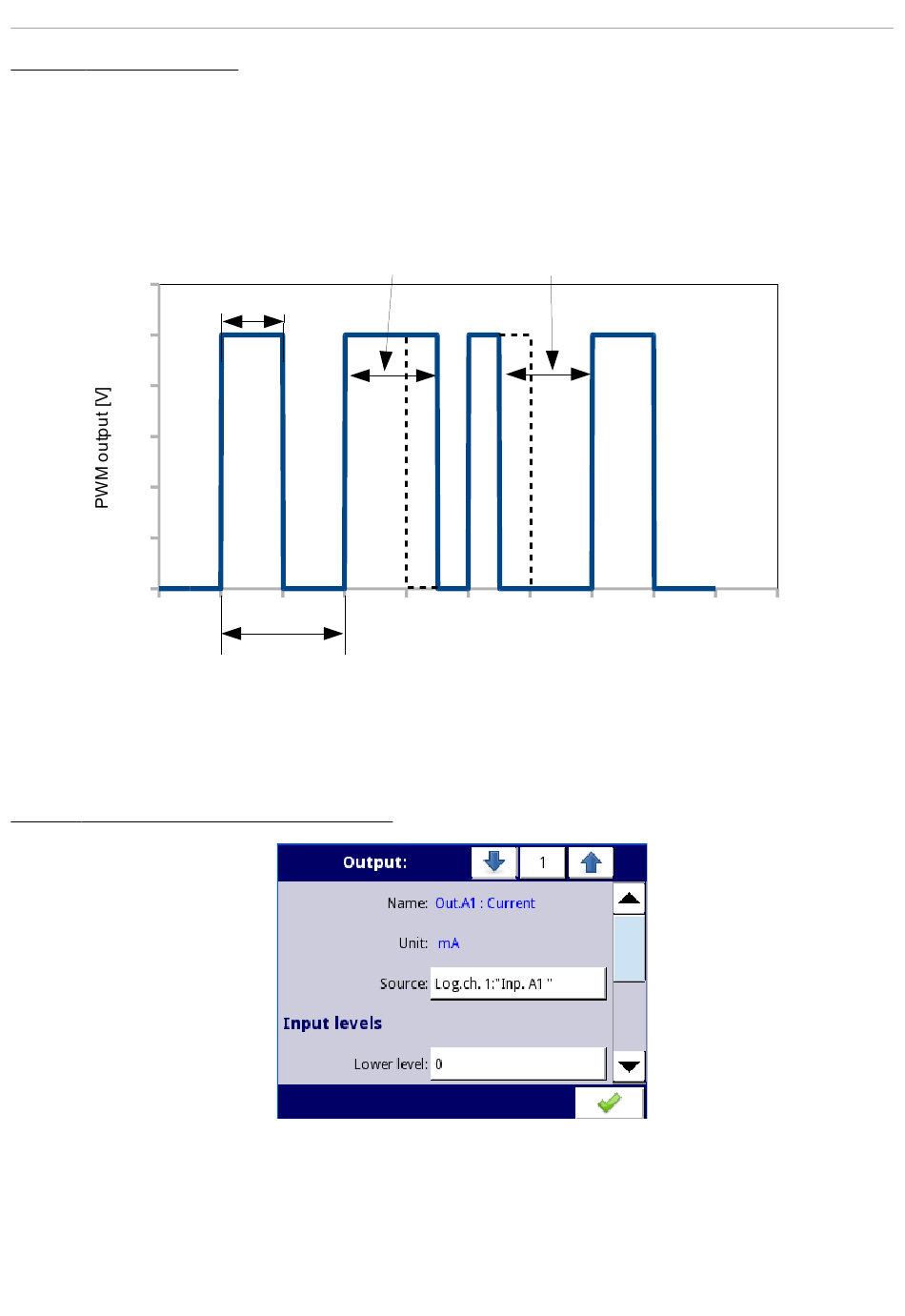

Fig. 7.94. Sample of output signal of SSR relay in PWM mode

7.10.4. Built-in output - Current output

The parameters of the built-in output for the Current outputs module are:
Name – each output already has a name given by the device and the user cannot
–
change it - see Fig. 7.84,
Parameter: Minimum ON time, Minimum OFF time
t=10s (D=50%)
10 20 30
T=20s
Fig. 7.95. Menu of the Passive current output
40 50 60
Time [s]
70 80 90 100
