OPTISWITCH 5300 C
Handbook
Vibrating Level Switch
Two-wire 8/16 mA
With SIL qualification

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISWITCH 5300 C and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTISWITCH 5300 C

Summary of Contents for KROHNE OPTISWITCH 5300 C

  • Page 1 OPTISWITCH 5300 C Handbook Vibrating Level Switch Two-wire 8/16 mA With SIL qualification...

  • Page 2: Table Of Contents

    Exchanging the electronics .................... 33 How to proceed if a repair is necessary ................33 Dismount..........................34 Dismounting steps......................34 Disposal ......................... 34 Supplement ..........................35 Technical data ........................ 35 Dimensions ........................41 Trademark ........................44 OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 3 Contents Editing status: 2018-06-25 OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 4: About This Document

    This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The OPTISWITCH 5300 C is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code. Safety instructions for Ex areas Please note the Ex-specific safety information for installation and op- eration in Ex areas. These safety instructions are part of the operating instructions manual and come with the Ex-approved instruments. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 7: Product Description

    The OPTISWITCH 5300 C consists of the components: • Housing lid • Housing with electronics • Process fitting with tuning fork Fig. 1: OPTISWITCH 5300 C - compact version with plastic housing Housing lid Housing with electronics Temperature adapter 4 Process fitting OPTISWITCH 5300 C • Two-wire 8/16 mA...

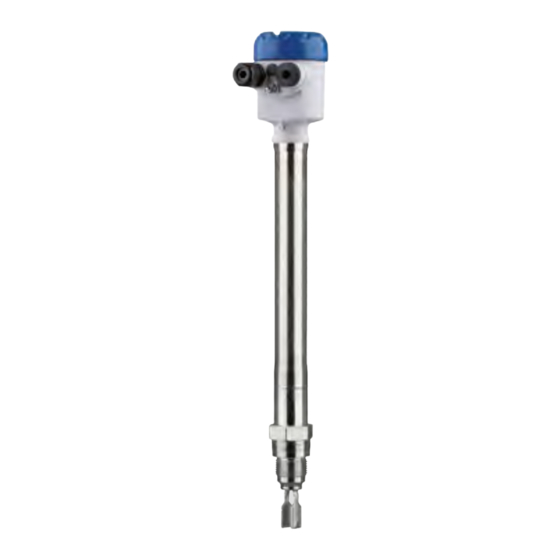

  • Page 8 3 Product description Fig. 2: OPTISWITCH 5300 C with plastic housing and tube extension Housing lid Housing with electronics Temperature adapter 4 Process fitting Tube extension The type label contains the most important data for identification and Type label use of the instrument: • Article number • Serial number • Technical data •...

  • Page 9: Principle Of Operation

    3 Product description Principle of operation Application area OPTISWITCH 5300 C is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids. It is particularly suitable for applications with high temperatures up to 450 °C (842 °F) and high process pressure...

  • Page 10: Storage And Transport

    The electronics module SW E60 is a replacement part for level switch- es OPTISWITCH 5300 C . You can find information in the operating instructions manual of the electronics module. Plug connector For connecting the sensors with a separator to voltage supply or sig- nal processing, the sensors are also available with plug connectors. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 11 3 Product description The following plug connectors are available: • M12 x 1 • ISO 4400 • Harting HAN 7D • Harting HAN 8D • Amphenol-Tuchel OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 12: Mounting

    DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. Switching point In general, OPTISWITCH 5300 C can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point.
  • Page 13 (e.g. through cleaning processes) or on cooled or heated vessels. To maintain the housing protection, make sure that the housing lid is closed during operation and locked, if necessary. Make sure that the degree of contamination specified in chapter "Technical data" meets the existing ambient conditions. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 14 Stainless steel housing (electropolished) Aluminium die-cast housing Caution: Transport Do not hold OPTISWITCH 5300 C on the tuning fork. Particularly with flange or tube versions, the tuning fork can be damaged just by the weight of the instrument. Transport coated instruments very carefully and avoid touching the tuning fork. Remove the packaging or the protective cover just before mounting.

  • Page 15: Mounting Instructions

    (1.16 in). To mount the sensor, proceed as follows: 1. Screw the OPTISWITCH 5300 C into the mounting boss up to the stop. You can determine the later position already before welding. 2. Mark the position of the OPTISWITCH 5300 C on the mounting boss.
  • Page 16 Inflowing medium If OPTISWITCH 5300 C is mounted in the filling stream, unwanted false measurement signals can be generated. For this reason, mount OPTISWITCH 5300 C at a position in the vessel where no distur- bances, e.g. from filling openings, agitators, etc., can occur. This applies particularly to instrument types with long extension tube. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 17 4 Mounting Fig. 10: Inflowing medium Product flow To make sure the tuning fork of OPTISWITCH 5300 C generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. Agitators Due to the effects of agitators, equipment vibration or similar, the level switch can be subjected to strong lateral forces. For this reason, do not use an overly long extension tube (optional) for OPTISWITCH 5300 C , instead check if it is possible to mount a short level switch OPTISWITCH 5300 C on the side of the vessel in horizontal position.
  • Page 18 See "Technical data". Caution: If it is determined (e.g. via an error message from OPTISWITCH 5300 C ) that medium has already penetrated into the vibrating element, the instrument must be exchanged immediately. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 19: Connecting To Power Supply

    Use a cable gland fitting the cable diameter. In hazardous areas, use only approved cable connections for OPTIS- WITCH 5300 C . Take note of the corresponding installation regulations for Ex applica- Connection cable tions. for Ex applications Cover all housing openings conforming to standard according to EN 60079-1. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 20: Connection Procedure

    Housing overview Fig. 12: Material versions, single chamber housing Plastic (not with Ex d) Aluminium Stainless steel, precision casting Stainless steel, electropolished (not with Ex d) Filter element for air pressure compensation OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 21 Suitable signal conditioning instruments are listed in chapter "Technical data". If OPTISWITCH 5300 C is used in Ex areas, take note of the regula- tions in the safety instructions and conformity certificates. If the instrument is to be operated directly on the analogue input of a PLC, a suitable safety barrier should be connected.
  • Page 22 5 Connecting to power supply Fig. 14: Wiring plan, single chamber housing Signal conditioning instrument OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 23: Setup

    OPTISWITCH 5300 C to "max.". Note: Always immerse the tuning fork of OPTISWITCH 5300 C in a liquid to test its function. Do not test the function of OPTISWITCH 5300 C with your hand. This can damage the sensor.

  • Page 24: Adjustment Elements

    • Yellow LED lights = 8 mA • Yellow LED off = 16 mA • Signal lamp (3) - Operat- Green LED lights = operating voltage on ing condition (green) OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 25: Function Table

    The following table provides an overview of the switching conditions depending on the set mode and the level. Note: Keep in mind that the mode switch of OPTISWITCH 5300 C must be always set to "max.". OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 26: Proof Test (Whg, Sil)

    The following options are available for carrying out the proof test tion test (WHG, SIL): 1 Filling the vessel up to the switching point If this does not cause any problems, you can fill the vessel up to the switching point and monitor the correct sensor reaction. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 27 By doing so, you can check the function of the measuring system. If this is not the case, then there is a fault in the measuring sys- tem. Make sure the connected downstream devices are activated dur- ing the function test. You can find the coverage of the test in the Safety Manual. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 28 You can carry out the function test with the outputted current values also directly via a safety PLC or a process control system. 1. Separate the instrument briefly (> 2 s) from voltage supply. Check if all three switching conditions change in the correct sequence and the specified duration. By doing so, you can check the function of the measuring system. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 29 Push the test key for > 2 seconds with a suitable object (screwdriver, pen, etc.). When the OPTISWITCH 5300 C is connected to a processing system or an SPLC, you have to interrupt the connection cable to the sensor for >...
  • Page 30 2. Empty 8 mA energized currentless energized signal (±1.5 mA) 1.5 s (±0.5 s) 3. Full signal 16 mA currentless energized energized (±1.5 mA) 1.5 s (±0.5 s) Starting time of the voltage supply OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 31 Test passed Status Current value Time False signal < 3.6 mA 1.5 s (±0.5 s) Uncovered 8 mA (±1.5 mA) 1.5 s (±0.5 s) Covered 16 mA (±1.5 mA) 1.5 s (±0.5 s) OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 32: Maintenance And Fault Rectification

    Check if the vibrating element is damaged or extreme- ement ly corroded. Interference on the elec- Exchanging the electronics module tronics module instrument defective Exchange the instrument or send it in for repair OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 33: Exchanging The Electronics

    You can find all the information you need to carry out an electronics exchange in the handbook of the new electronics module. How to proceed if a repair is necessary If it is necessary to repair the instrument, please contact the responsi- ble Krohne agency. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 34: Dismount

    Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 35: Supplement

    Ʋ Supporting material 316L Ʋ Material Ceramic Al (99.5 %) OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 36 Ʋ Fault message < 3.6 mA Modes (switchable) Min./Max. Accuracy (according to DIN EN 60770-1) Reference conditions and influencing variables (according to DIN EN 61298-1) Ʋ Ambient temperature +18 … +30 °C (+64 … +86 °F) Ʋ Relative humidity 45 … 75 % Depending on the mounting boss of the vessel. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 37 (0,029) (0,036) (0,043) (0,051) (0,058) (0,065) (0,072) (0,079) (0,087) Fig. 48: Influence of the product density on the switching point Shifting of the switching point in mm (in) Product density in g/cm³ (lb/in³) Switch position ≥ 0.47 g/cm³ (0.017 lb/in³) Switch position ≥ 0.7 g/cm³ (0.025 lb/in³) Switching point at reference conditions (notch) Tuning fork OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 38 -1 … 100 bar/-100 … 10000 kPa (-14.5 … 1450 psig) (1450 psig) The process pressure is dependent on the process fit- ting, e.g. flange (see the following diagrams) Ʋ Instrument version up to 160 bar -1 … 160 bar/-100 … 16000 kPa (-14.5 … 2320 psig) (2320 psig) The process pressure is dependent on the process fit- ting, e.g. flange (see the following diagrams) OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 39 Process temperature in °C (°F) Viscosity - dynamic 0.1 … 1000 mPa s (requirement: with density 1) Flow velocity max. 6 m/s (with a viscosity of 1000 mPa s) Density Ʋ Standard sensitivity 0.7 … 2.5 g/cm³ (0.025 … 0.09 lbs/in³) OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 40 Electrical protective measures Protection rating IP 66/IP 67 (NEMA Type 4X) Protection class Max. permissible process pressure: 25 bar (363 psig) Depending on the version M12 x 1, according to ISO 4400, Harting, 7/8" FF. OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 41: Dimensions

    Fig. 53: Housing versions in protection IP 66/IP 67 and IP 66/IP 68; 0.2 bar Plastic single chamber Stainless steel single chamber (electropolished) Stainless steel single chamber (precision casting) Aluminium - single chamber OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 42 OPTISWITCH 5300 C , compact version ø 33,7 mm ø 33,7 mm (1.33") (1.33") DN50 PN40 G 1, 1 NPT ø 28,5 mm ø 28,5 mm (1.12") (1.12") Fig. 54: OPTISWITCH 5300 C , compact version Sealing surface OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 43 G 1, 1 NPT ø 21,3 mm (0.84") ø 28,5 mm ø 28,5 mm (1.12") (1.12") Fig. 55: OPTISWITCH 5300 C , tube version Sensor length - see Technical data - General data Sealing surface OPTISWITCH 5300 C • Two-wire 8/16 mA...

  • Page 44: Trademark

    9 Supplement Trademark All the brands as well as trade and company names used are property of their lawful proprietor/ originator. OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 45 Notes OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 46 Notes OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 47 Notes OPTISWITCH 5300 C • Two-wire 8/16 mA...
  • Page 48 Products and systems for the oil and gas industry KROHNE Messtechnick GmbH & Co. KG Ludwig-Krohne-Straße 5 D-47058 Duisburg Tel.: +49 (0) 203 301 0 Tel.: +49 (0) 203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
