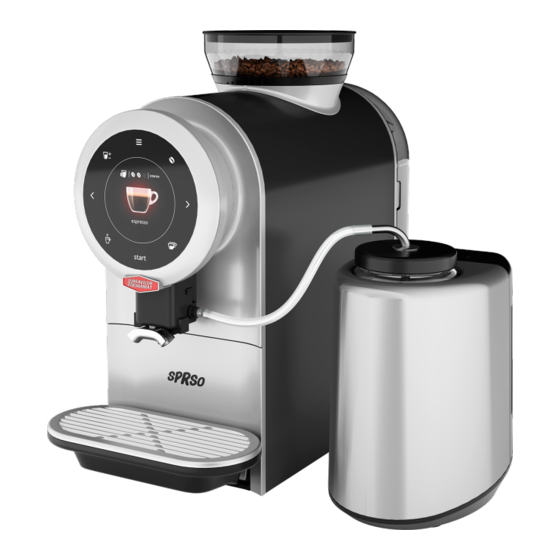

BRAVILOR BONAMAT SPRSO English Manual
  1. Manuals
  2. Brands
  3. BRAVILOR BONAMAT Manuals
  4. Brewing Systems
  5. SPRSO
  6. English manual

BRAVILOR BONAMAT SPRSO English Manual

Hide thumbs Also See for SPRSO:
Table of Contents

Advertisement

Quick Links

ENGLISH MANUAL
Original document by manufacturer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPRSO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRAVILOR BONAMAT SPRSO

Summary of Contents for BRAVILOR BONAMAT SPRSO

  • Page 1 ENGLISH MANUAL Original document by manufacturer...
  • Page 2 All rights reserved. No part of this document may be copied and/or published by means of printing, photocopying, microfilming or by any other means whatsoever without the prior written consent of the manufacturer. This also applies to the included drawings and/or diagrams. The information in this document is based on data that was available at the time the design, the material characteristics and the operating methods were published, meaning that this document is subject to change.

  • Page 3: Table Of Contents

    Table of contents 1. Parts and functions ............1 Parts .
  • Page 4 7.3.1 Milk unit ..............54 7.3.2 Brew temperature .

  • Page 5: Parts And Functions

    5b. Front plate 5c. Drip tray plate 5d. Drip tray 5e. Overflow drip tray 6. Side/service panel 7. Identification plate 8. CIRCO brewer Optional parts 1.2.1 Milk unit The Sprso is a bean-to-cup espresso machine. As standard the Sprso does not offer milk-based beverages such as cappuccino. However, you can connect a milk unit/cooler to the Sprso. If you connect a milk unit to the Sprso you can offer five additional beverages: caffe latte, espresso macchiato, cappuccino, latte macchiato and hot milk foam. How to install the milk unit to the Sprso is described in section “10.5 Connecting a milk unit” on page 84. 1.2.2 Water filter The water tank of the Sprso can be fitted with a water filter. Water filters are purification filter systems that remove minerals which make water hard and cause scale. We recommend customers to use a water filter. A water filter improves the quality of your beverage and decreases lime scale therewith optimizing the performance of the Sprso. How to fit the water filter into the Sprso is described in section “10.3 Install a water filter” on page 82.

  • Page 6: Controls

    Controls There are 4 main buttons for the navigation of the Sprso (see below) and 4 buttons to personalize your beverage (see section “5. Your beverage” on page 10.) Menu button: • to enter the program menu (press and hold) (see section “7. Program menu” on page 19) • to cancel the preparation of a beverage ► The menu button can be used to enter a menu or to ‘go back’ 1.3a  Navigation buttons: •...

  • Page 7: First Start

    1. read the safety booklet 2. remove the foil from the screen 3. fill the water tank (backside) 4. fill the bean canister (on top) 5. insert the plug in the power socket (ensure it is earthed), 6. to switch on the Sprso 7. follow the installation procedure shown on-screen Accessories in the packaging: • safety booklet • milk connector •...
  • Page 8 Start the installation procedure: • after a few seconds the language selection screen will appear 2a  Select your language: • press < or > to scroll through the available languages • press start to confirm 2b  Read the safety book! • press start to confirm or • press < to go back to change the language 2c ...
  • Page 9 • press start to confirm ► It is important to know the correct hardness of the water where the Sprso is used (for setting the descaling signal). If necessary, ask the local water company for the hardness of the water or measure the hardness of the water yourself with the water hardness tester.
  • Page 10 ► See section “10.5 Connecting a milk unit” on page 84 2j  ► This screen only shows if you confirmed the previous screen with Yes. Fill the milk unit: • press start to confirm 2k  The Sprso must be flushed: • put a big mug underneath the outlet or empty the drip tray after the installation procedure • press start to confirm. ► Maximal 250 ml hot water from outlet. 2l ...
  • Page 11 2m  The first installation procedure has completed. • empty the drip tray if you did not use a big mug to collect the flushing water The Sprso is ready for use. ► Only by selecting “7.3.11 Reset to factory settings” on page 66, the first installation procedure can be restarted. 2n ...

  • Page 12: Start Up

    • after a few seconds the Sprso starts to flush ► Hot water (±15 ml) flushes from the outlet into the drip tray. ► The reminder ‘clean milk system daily’ is only visible if a milk unit is connected. 3b  The Sprso is ready to use 3c ...

  • Page 13: Standby

    4. Standby The Sprso does not have a power button, but you can manually put the machine into standby mode at any time. In standby mode all functions are switched off only the start button keeps flashing slowly. To activate the machine press the start button. ► See also section 7.3.4 on page 57 to allow the Sprso to automatically enter the standby mode. Start the ‘standby mode’: • press and hold the ‘start button’ • the necessary flushes will be done when enabled/ required 4a  The screen blinks orange and black. • after a few seconds the Sprso starts to flush ►...

  • Page 14: Your Beverage

    5.1  Preparing your beverage Press start and the Sprso prepares immediately the selected beverage. To cancel a selected beverage press ≡ The following indicators may appear on the screen during the brewing process: Indicators Meaning busy preparing your beverage brewer still busy, next action is brewing your coffee canceling your beverage empty waste bin (ME05), see section 9.1 replace water filter (ME09), see section 7.1.6 clean brewer (ME08), see section 7.1.3 descale machine (ME11), see section 7.1.5...

  • Page 15: Personalize Your Beverage

    Personalize your beverage ► These settings are used in preparimg this one beverage and are not saved. 5.2  Beverage size • press < or > to adjust the volume ► See section 10.2 on page 81 for the default volume settings S, M and L per beverage 5.2a ...

  • Page 16: Adjusting The Tap Height

    Single / double cup ► Two cups can only be selected for: • Espresso • Ristretto • Lungo • press if you want 2 cups to be prepared simultaneously 5.2c  Hot water (free flow function) • press and hold for your hot water 5.2d ...

  • Page 17: Cleaning

    CIRCO brewer the outside ► Never put parts of the Sprso in the dishwasher. ► Do not use any aggressive cleaning agents. ► Clean the milk unit according to the instruction supplied with the milk unit itself. 6.1.1 ...

  • Page 18: Weekly Cleaning

    6.2.1  6.2  Weekly cleaning Weekly clean the following parts manually: • beverage outlet • water tank • CIRCO brewer • the outside 6.2.1 Beverage outlet 1. remove the plug, by pulling it to the right ► If milk unit is present, remove the milk hose including the connector. 6.2.1a 2. press the buttons on both sides 3.

  • Page 19: Water Tank

    6. return everything to its original position 6.2.1d 6.2.2  6.2.2 Water tank 1. empty the water tank 2. remove the water filter (if present) 3. clean the water tank with hot water and a non- abrasive brush 4. dry the outside of the water tank with a soft cloth 5.

  • Page 20: Circo Brewer

    6.2.3  6.2.3 CIRCO brewer In addition to the fixed cleaning program (see section 7.1.3 on page 25), you can also manually clean the CIRCO brewer as shown below. 1. open the service panel 6.2.3a 2. turn the lock counter clockwise 3. remove the CIRCO brewer 6.2.3b 4. clean the inside of the service compartment with a damp cloth 6.2.3c...
  • Page 21 5. disassemble the parts as shown 6. clean the CIRCO brewer parts with hot soapy water and a non-abrasive brush ► Not dishwasher proof 7. rinse the parts thoroughly 6.2.3d 8. reassemble the plunger and tube 6.2.3e 9. reassemble the bracket 6.2.3f 10. slide the fully assembled brewer housing over the axis 6.2.3g...

  • Page 22: The Housing

    11. place the tube in the brackets 12. push the brewer head over the axis until it clicks 6.2.3h 13. close the service panel 6.2.3i 6.2.4 6.2.4 The housing 1. clean the outside of the Sprso with a damp cloth 2. dry everthing with a soft cloth 6.2.4a...

  • Page 23: Program Menu

    7. Program menu Press and hold the menu button ≡ to open a program menu. • press < or > to scroll through the ‘program menus’ or • press start to confirm or • press ≡ to cancel ► When the program menu is selected but no button is pressed within 30 seconds, the Sprso returns to the ‘beverage selection screen’.

  • Page 24: Maintenance

    Maintenance The cleaning procedures and the descaling program can be started in the maintenance menu. If a water filter has been installed, replaced or removed, it must be specified in the machine software, see section “7.1.6 Water filter” on page 35. The beverage counters and the error history can be read in this menu. 7.1.1 7.1.9 7.1.2 7.1.8 7.1.3 7.1.7 7.1.4 7.1.6 7.1.5...

  • Page 25: Flush Coffee System

    ► Hot water (±30 ml) flushes from the outlet into the drip tray. ► During flushing, the reminder ‘clean milk system daily’ is only visible if a milk unit is connected. ► The Sprso automatically returns to the ‘beverage selection screen’. 7.1.1b ...

  • Page 26: Clean Milk System

    7.1.2 Clean milk system This section is only visible when the milk unit is activated. ► The milk unit is not automatically detected it must be selected in the software, see 7.3.1 on page 54. ► This event is determined by the number of milk-based beverages, but must be conducted at least once a day Necessities: •...
  • Page 27 Step 3 preparation cleaning solution: • dissolve one tablet completely in 250 ml lukewarm water (max 35 °C). ► If the solution is too hot, steam will be generated during cleaning, making cleaning ineffective. • press > to go to the next step 7.1.2c  Step 4 Information screen: • follow the instructions on the screen ► It is also advisable to clean the beverage outlet manually on a weekly basis, see section 6.2.1 on page 14.
  • Page 28 Step 7 preparation rinsing: • empty the big mug • follow the instructions on the screen ► Use cold water, hot water produces too much steam which does not help rinsing. • press > to go to the next step 7.1.2g  Step 8 preparation rinsing: • follow the instructions on the screen •...

  • Page 29: Clean Coffee System

    7.1.3 Clean coffee system This procedure cleans the brewer and the outlet tubes. This event is determined by the number of coffee based beverages. Necessities: • brewer cleaner (recommended: 2 gram of Cafiza E31 tablets) ® • container (500 ml) • a full water tank • time: ± 15 minutes The brewer must be cleaned periodically: • press start to confirm or • press < or > to scroll through the maintenance menu 7.1.3 ...
  • Page 30 Step 3 preparation rinsing: • follow the instructions on the screen • press start to begin the cleaning process ► The cleaning process cannot be interrupted after this step. 7.1.3c  Step 4 pre-rinse of the brewer in progress: • the screen blinks orange and black for a few seconds before the rinsing cycle begins •...
  • Page 31 Step 7 information screen: • follow the instructions on the screen ► It is also advisable to clean the brewer manually on a weekly basis, see section 6.2.3 on page 16. 7.1.3g  Step 8 preparation cleaning: • put the cleaning tablet in the brewer • press > to go to the next step 7.1.3h ...
  • Page 32 Step 11 cleaning the brewer in progress: • the screen blinks orange and black for a few seconds before the cleaning and rinsing cycles begins • wait for the next screen, this may take about 10 minutes ► Hot water and steam (±250 ml) will come from the outlet! 7.1.3k  Step 12 cleaning the brewer: • remove and empty the waste bin ► Put your finger underneath the overflow to avoid spillage, see “6.1.1a”...

  • Page 33: Flush Milk System

    The screen blinks orange and black. • wait for the next screen 7.1.4a  Flushing: • wait until the process is finished ► Hot water (30 ml) flushes from the outlet into the drip tray. ► The Sprso automatically returns to the ‘beverage selection screen’. 7.1.4b ...

  • Page 34: Descale

    • measuring jug (500 ml) • total time : ± 20 minutes ► The descaling process cannot be interrupted after the descaling agent is in the Sprso! ► Remove the water filter (if applicable) to ensure it won’t be damaged by the descaling agent. ► Disconnect the milk unit (if connected) to prevent taste transfer.
  • Page 35 Step 3 preparation: • make sure that you have all necessities • press > to go to the next step 7.1.5c  Step 4 preparation: • follow the instructions on the screen • press > to go to the next step ► Recommended: 50 gr Renegite / 500 ml water ► If the volume is higher than the recommended (minimum) amount, more descaling solution will come out of the machine.
  • Page 36 • follow the instructions on the screen • press start to begin the actual descale process 7.1.5h  Step 9 descaling process: • wait for the next screen (± 11 minutes) ► Do not leave the Sprso unattended. ► Hot water with descaling solution comes from the outlet. 7.1.5i  Step 10 descaling process: • follow the instructions on the screen •...
  • Page 37 Step 11 refill water tank: • follow the instructions on the screen ► Use cold water. ► If the volume is greater than the recommended amount, more liquid will come out of the machine and rinsing will take longer. • press > to go to the next step 7.1.5k ...
  • Page 38 The descaling procedure has finished and the counter is set to zero. • press start to confirm ► Reconnect the water filter when it was removed in “7.1.5f” during the descale procedure and fill the water tank. ► Reconnect the fixed water connection when installed and open the tap. 7.1.5o ...

  • Page 39: Water Filter

    The Sprso can now indicate when it needs to be replaced. Also see section “10.3 Install a water filter” on page 82. A water filter lessens limescale deposits and reduces impurities in the water. The Sprso then does not have to be descaled as often (see section “10.1 Water hardness and filter information” on page 81). Additionally, it ensures a consistent quality of the hot beverage in both taste and aroma. You can replace, remove or install the water filter: •...
  • Page 40 Replace the water filter (according to the instructions): • press start to confirm 7.1.6c  The water filter is replaced, the procedure is finished and the counter is set to zero. 7.1.6d  Remove the water filter: • press < or > to choose no/yes and • press start to confirm ► selected YES: next screen is 7.1.6f ► selected NO: next screen is 7.1.6h 7.1.6e  Remove the water filter: • press start to confirm 7.1.6f ...
  • Page 41 The water filter is removed, the procedure is finished and the counter is deactivated. 7.1.6g  No changes were made, the procedure is finished. 7.1.6h  Install the water filter: • press < or > to choose no/yes • press start to confirm ► selected YES: next screen is 7.1.6j ► selected NO: next screen is 7.1.6h 7.1.6i  Install the water filter (according to the instructions): • press start to confirm 7.1.6j ...
  • Page 42 The water filter is installed, the procedure is finished and the counter is activated. 7.1.6k ...

  • Page 43: Reposition Brewer Axis

    7.1.7 Reposition brewer axis It is possible that the brewer housing cannot be brought into the correct position because the brewer axis has rotated. ► The brewer axis cannot be turned manually nor with tools. You can reposition the brewer axis: • press start to confirm or • press < or > to scroll through the maintenance menu 7.1.7 ...
  • Page 44 ► The side panel must be closed, otherwise there is a risk of injury from rotating parts. • close the side panel as shown on the screen ► When the side panel is back in place, the next screen will appear.
  • Page 45 • close the side panel as shown on the screen ► When the side panel is removed, the procedure is finished and screen 7.1.7 is shown 7.1.7g ...

  • Page 46: Counters

    Custom beverages are also counted and added to the total machine counter, even when they are deleted. ► The total machine counter will count every beverage dosed by the Sprso. It will not be possible to see the history of these beverages. ► Hot water dosages are counted when the amount exceeds 20 ml.
  • Page 47 Total machine counter: • press < or > to scroll through the counters menu ► total machine counter = total of all beverages ever made (deleted customized beverages as in “7.2.1 Create your own” on page 46 are included) 7.1.8c  Delete all day counters: • press start to confirm or • press < or > to scroll through the counters menu ►...

  • Page 48: Error History

    7.1.9 Error history A total of 12 errors can be logged for technical support. When the log is full the first error will be overwritten. More information can be found in section “9. Warning and errors messages” on page 77. Error history readings: • press start to confirm or • press < or > to scroll through the maintenance menu 7.1.9  Error history readings: • press < or > to scroll through the error history ► A total of 12 errors can be logged. When the log is full the first error will be overwritten. 7.1.9a ...

  • Page 49: Beverages

    Beverages Press the start button in the program menu to open the beverage menu. In the “Beverage menu” select one of the available options: • default beverages, adjust strength, intensity and volume • custome beverages, three beverages can be added based on the default beverages 7.2  7.2.1 7.2.3 7.2.2...

  • Page 50: Create Your Own

    7.2.1 Create your own You can add up to three beverages based on the default beverages. When a customized beverage is created this will be saved with an identification (‘Beverage’ | 1, ‘Beverage’ | 2 and ‘Beverage’ | 3) and will be automatically added to the ‘beverage selection screen’. Create a custom beverage: • press start to confirm or • press < or > to scroll through the ‘beverages menu’ ► maximum custom beverages not reached: next screen is 7.2.1c 7.2.1  The maximum of 3 custom beverages has been reached •...
  • Page 51 ► The intensive function will extend the brew time by 10%. 7.2.1d  Set the volume: • press < or > to set the volume • press start to confirm ► See section 10.2 on page 81 for the default volume settings S, M and L per beverage. 7.2.1e  Save your custom beverage. ► The Sprso automatically returns to screen 7.2.1. 7.2.1f ...
  • Page 52 No changes were made, the procedure is finished. ► The Sprso automatically returns to screen 7.2.1. 7.2.1g  ► To delete a customer beverage see “7.2.2g” on page 51.

  • Page 53: Edit Default Beverage

    7.2.2 Edit default beverage You can change the settings of the default beverages. The milk based beverages are always visible in this menu but cannot be edited, unless the milk unit is activated in “7.3.1 Milk unit” on page 54. Once a custom beverage is created it appears here too (see 7.2.2f). The only difference with a default beverage is that a customized beverage cannot be switched off (disabled), it must be deleted. Edit a default beverage: •...
  • Page 54 • press start to confirm ► See section 10.2 on page 81 for the default volume settings S, M and L per beverage. 7.2.2c  Save your custom beverage. ► The Sprso automatically returns to screen 7.2.2 7.2.2d  No changes were made, the procedure is finished. ► The Sprso automatically returns to screen 7.2.2. 7.2.2e ...
  • Page 55 Edit or delete a custom beverage: • press < or > to choose no/yes • press start to confirm ► selected YES: next screen is 7.2.1 ► selected NO: next screen is 7.2.2b 7.2.2g ...

  • Page 56: Beverage Profiles

    7.2.3 Beverage profiles The Sprso has 3 beverage profiles to choose from during installation. These profile offer the same beverages, though each profile has an unique combination of volume and strength of the beverages. The available beverage profiles are: Beverage profile Characteristics profile #1 small volumes / strong coffee profile #2 medium volumes / regular strengths profile #3 large volumes / regular strengths ► See also section “10.2 Volume per beverage (S / M / L)” on page 81 Select a profile for your beverages: • press start to confirm or • press < or > to scroll through the ‘beverages menu’...

  • Page 57: Machine

    Machine You can programme the following in the machine menu. 7.3.1 7.3.12 7.3.2 7.3.3 7.3.11 7.3.10 7.3.4 7.3.9 7.3.5 7.3.6 7.3.8 7.3.7...

  • Page 58: Milk Unit

    7.3.1 Milk unit A milk unit/cooler can be added to the Sprso. By activating the milk unit, the beverages with milk will be available and all related menus will become accessible. Messages concerning the cleaning and flushing become active. Milk unit: • press start to confirm or • press < or > to scroll through the machine menu 7.3.1  Did you connect a milk unit: • press < or > to choose no/yes and • press start to confirm 7.3.1a  Information screen: ► Only visible if a milk unit is activated in the software. • press > to go to the machine menu...

  • Page 59: Brew Temperature

    7.3.2 Brew temperature It is possible to adjust the default brew temperature. The temperature of all the beverages will be effected by this option. When a different altitude is selected (see section “7.3.3 Altitude” on page 56) the default brew temperature is automatically changed. Temperature setting Temperature -4°C (-7.2°F) relative to the default brew temperature medium default brew temperature high +2°C (+3.6°F) relative to the default brew temperature Brew temperature: • press start to confirm or • press < or > to scroll through the machine menu 7.3.2  Adjust the brew temperature: • press < or > to choose one of the 3 settings and •...

  • Page 60: Altitude

    7.3.3 Altitude The setting of altitude where the Sprso is used (default: sea level) is necessary to determine the boiling point that depends on the local atmospheric pressure. The boiling point at sea level is around 100°C (212°F), while the boiling point at 2000 meter is slightly lower at 97°C (206.6°F). Altitude compensation Temperature 0 - 1000 0 °C (32.0 °F) 1000 - 2000 -3 °C (-5.4 °F) 2000 - 3000 -6 °C (-10.8 °F) Altitude: • press start to confirm or • press < or > to scroll through the machine menu 7.3.3  Adjust the altitude setting: • press < or > to choose one of the 3 settings •...

  • Page 61: Automatic Switch Off

    7.3.4 Automatic switch off After a certain amount of time, the Sprso will automatically go into an energy-saving mode for lower power consumption, see also section “4. Standby” on page 9. Automatic switch off settings: disabled 30 minutes 1 hour 2 hour 4 hours Automatic switch off: • press start to confirm or • press < or > to scroll through the machine menu 7.3.4  Adjust the automatic switch off function: • press < or > to choose one of the 5 settings •...

  • Page 62: Child Lock

    7.3.5 Child lock Select this option to prevent dangerous situations due to unintended actions, e.g. unattended children pressing controls. By pressing both navigation buttons (< >) simultaneously for 5 seconds, the child lock is activated and the controls are automatically switched off. If a button is pressed while the child lock is activated, the screen turns on and a message appears, see 7.3.5b. To deactivate the child lock, press both navigation buttons (< >) simultaneously again for 5 seconds.

  • Page 63: Brightness Screen

    7.3.6 Brightness screen The brightness of the screen can be adjusted in 5 steps and is immediately visible. Brightness screen: • press start to confirm or • press < or > to scroll through the machine menu 7.3.6  Adjust the automatic switch off function: • press < or > to choose one of the 5 settings • press start to confirm 7.3.6a ...

  • Page 64: Sounds

    7.3.7 Sounds Audio signals are used to give feedback. There are 3 different tones. The tone and volume of the sound cannot be adjusted. Tone When Kind of adjustment Start up, warning before flush not adjustable End of process or when a next action is required Sound of messages on/off Sound of buttons on/off Sounds: • press start to confirm or • press < or > to scroll through the machine menu 7.3.7  Sounds of messages: • press < or > to choose sounds of messages or sounds of buttons •...
  • Page 65 Sound while pressing a button: • press < or > to choose sounds of buttons or sounds of messages • select sounds of buttons • press start to confirm 7.3.7c  Set sounds on/off while pressing a button: • press < or > to choose no/yes • press start to confirm 7.3.7d ...

  • Page 66: Languages

    7.3.8 Languages English is the default language. The available languages are: • English • French • Norwegian • Spanish • English (US) • French (CA) • Polish • Spanish (US) • Czech • German • Portuguese • Swedish • Danish • Greek • Portuguese (BR) •...

  • Page 67: Units

    7.3.9 Units The units for volume and height can be changed. All variables of the Sprso are based on the International System of Units (SI), all others are calculated based on this. Units: • press start to confirm or • press < or > to scroll through the machine menu 7.3.9  Volume units: • press < or > to choose volume or height units • select volume units • press start to confirm 7.3.9a  Change volume units: • press < or > to choose ml/l or fl.oz/gal • press start to confirm 7.3.9b ...
  • Page 68 Height units: • press < or > to choose height or volume units • select height units • press start to confirm 7.3.9c  Change height units: • press < or > to choose metre or feet • press start to confirm 7.3.9d ...

  • Page 69: Water Hardness

    7.3.10 Water hardness It is important to know the correct hardness of the water at the location where the Sprso is used for setting the descaling signal. Ask the local water company for the hardness of the water or measure the hardness of the water yourself with the water hardness tester (according to the corresponding instructions). Water hardness: • press start to confirm or • press < or > to scroll through the machine menu 7.3.10  Adjust the water hardness setting: • press < or > to choose one of the 6 settings •...

  • Page 70: Reset To Factory Settings

    7.3.11 Reset to factory settings The adjusted settings can be reset to the default settings in 3 ways. Selected option Result Reset the All beverages will return to default except the beverages you created beverage settings in section 7.2.1 on page 46. Reset the Any settings you have changed in section 7.3 are restored to the machine settings...
  • Page 71 • select reset machine settings • press start to confirm 7.3.11b  Reset to factory default: • press < or > to scroll through the reset to factory settings menu or • select reset all settings • press start to confirm ► The Sprso starts with screen 2a on page 4 7.3.11c ...

  • Page 72: Machine And Software Information

    7.3.12 Machine and software information The serial number and software versions can be checked, this is essential information for a service request. Serial numbers: • press start to confirm or • press < or > to scroll through the machine menu 7.3.12  Serial number machine: • press < or > to choose serial number machine or serial number software ► The unique serial number of the machine is displayed here. 7.3.12a  Version number software: • press < or > to choose serial number software or serial number machine ►...

  • Page 73: Online Help

    Online help Online information can be approached via the QR code shown on the screen. Online information: • press start to confirm or • press < or > to scroll through the machine menu 7.4.1  Online manuals: • press < or > to scroll through the available QR codes • scan the QR code to get the latest online manual(s) 7.4.1a  Online animations: • press < or > to scroll through the available QR codes • scan the QR code to get the latest online animation(s) 7.4.1b ...

  • Page 74: Special Conditions

    8. Special conditions Brewer (partially) missing (Error 10015) After maintenance of the CIRCO brewer, it is possible that the brewer housing cannot be brought into the correct position because the brewer axis has rotated. Close the side/service panel, this activates the message (8.1a), follow the on screen instructions to solve the problem. ► The brewer axis cannot be turned manually nor with tools. Information message: • press > to begin the reset 8.1a ...
  • Page 75 The brewer axis needs to be repositioned: • press > to go to the next step 8.1d  • press < or > to choose the direction of rotation • press start to confirm 8.1e  ► The side panel must be closed, otherwise there is a risk of injury from rotating parts.
  • Page 76 • open the side panel as shown on the screen ► When the side panel is removed, the next screen will appear. 8.1h  Can the brewer be placed: • press < or > to choose no/yes and • press start to confirm ► selected NO: next screen is 8.1e ► selected YES: go to the next screen 8.1i ...

  • Page 77: Brewer Malfunction (Error 04104)

    Brewer malfunction (Error 04104) Brewer motor not moving. When no movement is detected the error message is displayed, see 8.2a. ► The brewer axis cannot be turned manually nor with tools. Information message: • press > to begin the reset 8.2a  • open the side panel as shown on the screen ► When the side panel is removed, the next screen will appear.
  • Page 78 Check if the complete brewer can be placed: • press < or > to choose no/yes • press start to confirm ► selected YES: next screen is 8.2m ► selected NO: go to the next step 8.2d  • press < or > to choose the direction of rotation • press start to confirm 8.2e  ►...
  • Page 79 • open the side panel as shown on the screen ► When the side panel is removed, the next screen will appear. 8.2h  Can the brewer be placed: • press < or > to choose no/yes and • press start to confirm ► selected NO: next screen is 8.2i ► selected YES: next screen is 8.2m 8.2i ...
  • Page 80 Information screen: • press > to go to screen 8.2e 8.2l  • close the side panel as shown on the screen ► When the side panel is back in place, the ‘beverage selection screen’ will appear. 8.2m  CIRCO brewer reset has finished 8.2n ...

  • Page 81: Warning And Errors Messages

    9.1  9. Warning and errors messages Warning messages Warning messages are used to inform the operator of a state which can prevent the Sprso from working correctly. In general warning messages are displayed after beverage. ► The warning messages are displayed for 30 seconds. A message can be displayed again when any button (except menu button) is used. The menu will remain available. Example screen for warning messages 9.1a ...
  • Page 82 “XX” litres have passed screen’. through the water counter and is repeated after every 11 beverages) ME10 descale machine descale the machine • descale the Sprso (see to keep the system section 7.1.5 on page 30) maintained well, not descaling will eventually result in a blocking of the water system or defective parts (the message is repeated...

  • Page 83: Error Messages

    Depending on the error, it remains active or can be solved by itself and the error message disappears by itself. The error message is stored to the Error Log (see section “7.1.9 Error history” on page 44). A total of 12 errors can be logged by the Sprso for technical support. When the log is full the first error will be overwritten. ► The start button can be pressed to restart the Sprso. If the error messages returns after the appropriate action, please contact your dealer.
  • Page 84 Error Description Reset condition 04104 brewer malfuction brewer is blocked or • press start button, machine defect will be restarted • follow procedure of section 8.2 on page 73 10001 I/O-fail safety I/O control fails • press start button, machine will be restarted 10015 brewer partially brewer can not be •...

  • Page 85: Appendix

    10.1  10. Appendix 10.1 Water hardness and filter information very setting soft average moderate hard soft °dH < 03 > 21 °fH < 05 > 38 °e / Clark < 04 > 26 ppm (mg/l) parts per < 53 - 125 - 249 - 374 >...

  • Page 86: Install A Water Filter

    Please note ► If you use the Sprso normally the water filter lasts for a certain amount of time. This amount of time is mentioned in the manual of the water filter. If you do not use the Sprso whilst the water filter is installed this will decrease the lifespan of the water filter.

  • Page 87: Adjusting The Coffee Grinder

    ► Turn the upper part of the bean container to adjust the grinding degree, just one click at a time. If the coffee beverage flows too slowly or not at all, turn one click clockwise (coarser grind). 560µ 330µ For creamier coffee (finer grind), turn one click anticlockwise ► The Sprso needs to prepare a few cups of coffee before you notice the difference. 10.4b ...

  • Page 88: Connecting A Milk Unit

    • latte macchiato • cappucinno • caffè latte • cappucinno dark • hot milk foam ► Bravilor Bonamat recommends a milk cooler over a non-cooled milk carton. Cold milk (5°C) improves the taste of the milk-based beverages. • pull down the outlet 10.5a  • remove the plug 10.5b ...
  • Page 89 Milk level 10.5e  • go to “7.3.1 Milk unit” on page 54, to indicate that a milk unit is connected to the Sprso ► Do not leave the milk carton / cooler out of the refrigerator for a long period of time. The warmer the milk (5°C is perfect), the poorer the quality of froth produced.

  • Page 90: Install A Fixed Water Connection

    The Sprso is not equipped with a fixed water connection as standard. If a fixed water connection is connected, there are two things to bear in mind: Descaling procedure • additional steps added, see sticker on fixed water connection (water tank). Water filter • install an external water filter between the tap and the Sprso, a filter can no longer be placed inside the water tank. • replace the water tank • attach the water connection hose to the water tank ► Always use the new food approved hose set that is supplied with the water tank.

  • Page 91: Bin Full Message

    10.7 Bin full message When the waste bin counter has reached its limit, the Sprso generates a message to empty it. When replacing the drip tray (with waste tray), screen 10.6b must be answered to update the counter. ► If the counter is reset while the waste bin is not emptied, the waste bin will overflow with all its consequences. Waste bin full message: • remove the drip tray and waste bin and empty them ► Put your finger underneath the overflow to avoid spillage.

  • Page 92: Special Functions

    10.8  10.8 Special functions By using a ‘secret key combination’ special features can be activated. Standby mode: • hold the ‘Start button’ for 5 seconds • necessary flushes will be done • the “goodbye” screen is turned off and only the start button is flashing slowly ► The standby mode is a function which can be enabled for energy saving. ► Press the start button to end the standby mode 10.8a  Child lock on/off: • hold both ‘Navigation buttons’ for 5 seconds ►...
  • Page 94 © 2021-04-13 VHH...
