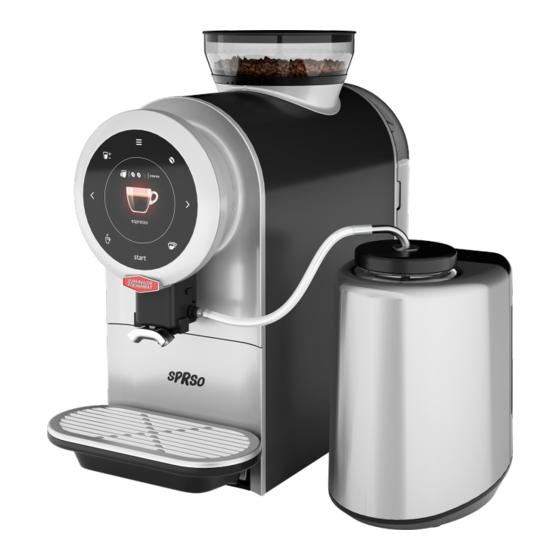

- Page 1 TECHNICAL MANUAL Original document by manufacturer version 1.1...
- Page 2 All rights reserved. No part of this document may be copied and/or published by means of printing, photocopying, microfilming or by any other means whatsoever without the prior written consent of the manufacturer. This also applies to the included drawings and/or diagrams. The information in this document is based on data that was available at the time the design, the material characteristics and the operating methods were published, meaning that this document is subject to change.
-
Page 3: Table Of Contents
Table of contents 1. Special functions ............Water system calibration . -
Page 5: Special Functions
• press and hold the button combination 10 seconds ► The demo mode is a function which can be enabled for marketing purposes. ► Switch off the Sprso to end the demo mode. 1b Child lock on/off: • press and hold the button combination 5 seconds... - Page 6 Reset the cleaning brewer counter: • press and hold the button for 10 seconds in this screen until the maintenance menu appears ► The counter that triggers the clean brewer message is reset. 1d Reset the descaling counter: • press and hold the button for 10 seconds in this screen until the maintenance menu appears ►...
-
Page 7: Water System Calibration
In this menu the water system can be calibrated. With calibration the volume of the water is determined for a defined flow and time. When finished the measured volume must be filled in. ► The water system calibration is used to adjust the differences between the actual water delivery of the Sprso and the indicated amount. Necessities: • measuring container (with fine scale) Water system calibration: • go to the program menu •... - Page 8 Step 2: preparation • follow the instructions on the screen • press start to begin the calibration 1.1d Step 3: dosing hot water • wait for the next screen 1.1e Step 4: measure • read the dosed water • press > to go to the next step 1.1f Step 5: measure •...
- Page 9 New water volume is saved: • wait for the next screen • exit the menu by pressing 1.1h ...
-
Page 10: Grinder Calibration
Grinder calibration The grinder calibration will affect every coffee related beverage. Necessities: • coffee beans • digital kitchen scales Grinder calibration: • go to the program menu • press and hold the button combination 5 seconds 1.2a Calibration grinder: • press start to confirm 1.2b Step 1: preparation • make sure that you have all necessities •... - Page 11 Step 2: preparation • follow the instructions on the screen • press > to go to the next step ► See also section “Adjusting the grinder” in the digital manual. ► When another position is selected the result of the calibration is incorrect and can lead to malfunctions. 1.2d ...
- Page 12 Step 6: preparation • follow the instructions on the screen • press > to go to the next step ► Tare key for scales means that the scale has a key that sets the scale display to zero when an empty container is placed on the weighing platform so that only the weight of the container’s contents is then displayed.
- Page 13 Step 10: calibration • follow the instructions on the screen • press > to go to the next step 1.2l Step 11: calibration • follow the instructions on the screen • press < or > to enter the measured weight • press start to confirm 1.2m Step 12: information screen •...
-
Page 14: Spare Parts Replacement
2. Spare parts replacement Because the machine is compact, here are the steps on how to replace a particular part. Necessities: • Philips screwdriver • screwdrivers torx 10 and 15 • curved nose pliers Reassembly remarks: • see the exploded views for the service part numbers •... -
Page 15: Outlet
Outlet Step 1 • remove the control panel • slide the outlet upwards • remove 3 screws from the control panel holder • remove the control panel holder • remove the beverage outlet Step 2 • carefully disassemble the outlet •... -
Page 16: Open Right Side Panel
Open right side panel Step 1 ► Unplug the machine to turn off the power before opening it. • remove the drip tray and the water tank Step 2 • remove 2 screws Step 3 • remove the side panel... -
Page 17: Remove Back Panel
Step 1 • disconnect the wiring • take out the fan Step 2 • remove the fan suspension ► Blade rotation: » clockwise, as seen from the above (label side) » the air must be blown out of the Sprso... -
Page 18: Remove Grinder
Remove grinder Step 1 • remove both side panels and the back panel • remove the top of the machine Step 2 • remove the outlet grinder Step 3 • remove 3 screws Step 4 • detach the connector of the grinder from the I/O board ►... -
Page 19: Remove The Water Counter/Safety Switches
Remove the water counter/safety switches Step 1 • disconnect the hoses from the water counter Step 2 • disconnect the wiring • remove the water counter Step 3 • disconnect the wiring of the water counter and the safety switches •... -
Page 20: Remove I/O Board
Remove I/O board Step 1 • push the click-finger and pull out the I/O board slightly Step 2 • disconnect the wiring • remove the I/O board ► Position of the ferrite rod. Remove power board • remove the screws • disconnect the wiring • remove the power board... -
Page 21: Remove Flash Heater
► Make sure that the hoses of the flash heater are installed correctly, see section "2.14 Hose positions" on page 21. If the hoses are swapped, the Sprso will steam instead of giving hot water when the flash heater is switched on. -
Page 22: Remove Pump
2.11 Remove pump Step 1 • disconnect the hose from the pump Step 2 1. remove the pump bracket 2. loosen the mounting bracket Step 3 • disconnect the wiring • remove the pump Pump wiring: • red wire rear • white wire in front ►... -
Page 23: Remove Valve Set
2.12 Remove valve set Step 1 • remove the 2 locking clips and the clamp to disconnect the hoses from water valve of the brewer ► Consider to exchange the O-rings. Step 2 • remove the 4 locking clips to disconnect the hoses from the other water valves •... -
Page 24: Remove Brewer Motor
2.13 Remove brewer motor Step 1 • remove all colored parts order of removal: 1. pump bracket, see section "2.11 Remove pump" on page 18 » no need to disconnect the hoses 2. remove the 2 screws to disconnect the heater, see section "2.10 Remove flash heater" on page 17 »... -
Page 25: Hose Positions
Step 4 • disconnect the wiring • remove the brewer motor 2.14 Hose positions ► The hoses may not touch the housing, this may cause resonance! -
Page 26: Beverage Profiles
3. Beverage profiles Below is an overview of the standard Bravilor beverage (USA) profile. ► Variations may occur as grinders can react different to different types of coffee beans (e.g. dry beans vs. greasy beans). ► The gram weight is based on the middle position of the coffee grinder. strength 1 bean standard -1 g... -
Page 27: Selectable Volume - Medium
Selectable volume - medium Beverage Total 1. Coffee 2. Milk 3. Hot water Dosing beverage volume volume volume order volume (ml) (fl oz) (ml) (fl oz) (ml) (fl oz) (ml) (fl oz) ristretto 1.01 1.01 ristretto x2 2.03 2.03 espresso 1.35 1.35 espresso x2... -
Page 28: Software Update Instructions
• extract the file to a folder • right-click on the file to open its properties • check the “unblock” box • click ‘OK’ to confirm ► The Sprso must be connected to the mains. • start the application, the screen on the left will appear followed by the next screen Preparation of the Sprso: • remove the screw from the brand name buckle •... - Page 29 • press “start” to overwrite the software Progress screen: • wait until the process is finished Progress screen Sprso • the procedure is completed and the Sprso will automatically restarts • press “close” to exit the application • unplug the USB cable • reattach the brand name buckle...
-
Page 30: Troubleshooting
5. Troubleshooting Warning messages Message Description Reset condition ME01 fill or place water no water detected in water • fill water tank and place tank tank water tank in correct position water tank not present • place water tank in correct position float not in upper position • check free movement float due to: » pollution •... - Page 31 11 beverages) ME10 descale machine the counter for the • descale the Sprso as descaling is reached described in section “7.1.5 (the message is repeated Descale” in the digital user after every 9 beverages) manual 700.470.010...
-
Page 32: Error Messages
Error messages Error Description Reset condition 00000 communication failed communication between • press start button, machine HMI- and I/O-board defect will be restarted • check the wiring 00201 no water flow no water flow detected in • clean water tank detected system • fill water tank and place water tank in correct position •... - Page 33 Error Description Reset condition 02102 temperature sensor temperature sensor • press start button, machine reading reading invalid will be restarted • check the following parts: » temperature sensor » I/O board » all associated wiring 02203 heating element heating element is • press start button, machine protection overheated or defect will be restarted...
-
Page 34: Other Problems
Other problems In addition to the messages and errors present in the machine, a number of other problems may occur; these problems are described below. Problem description Possible cause Check the following after coffee is brewer valve not opening • brewer valve selected, neither •... - Page 35 Problem description Possible cause Check the following bad milk foam outlet not properly in place • outlet outlet not clean • perform milk cleaning cycle milk connector not properly in • place milk connector in place correct position air restriction blocked •...
- Page 36 © 2023-02-07 VHH...
