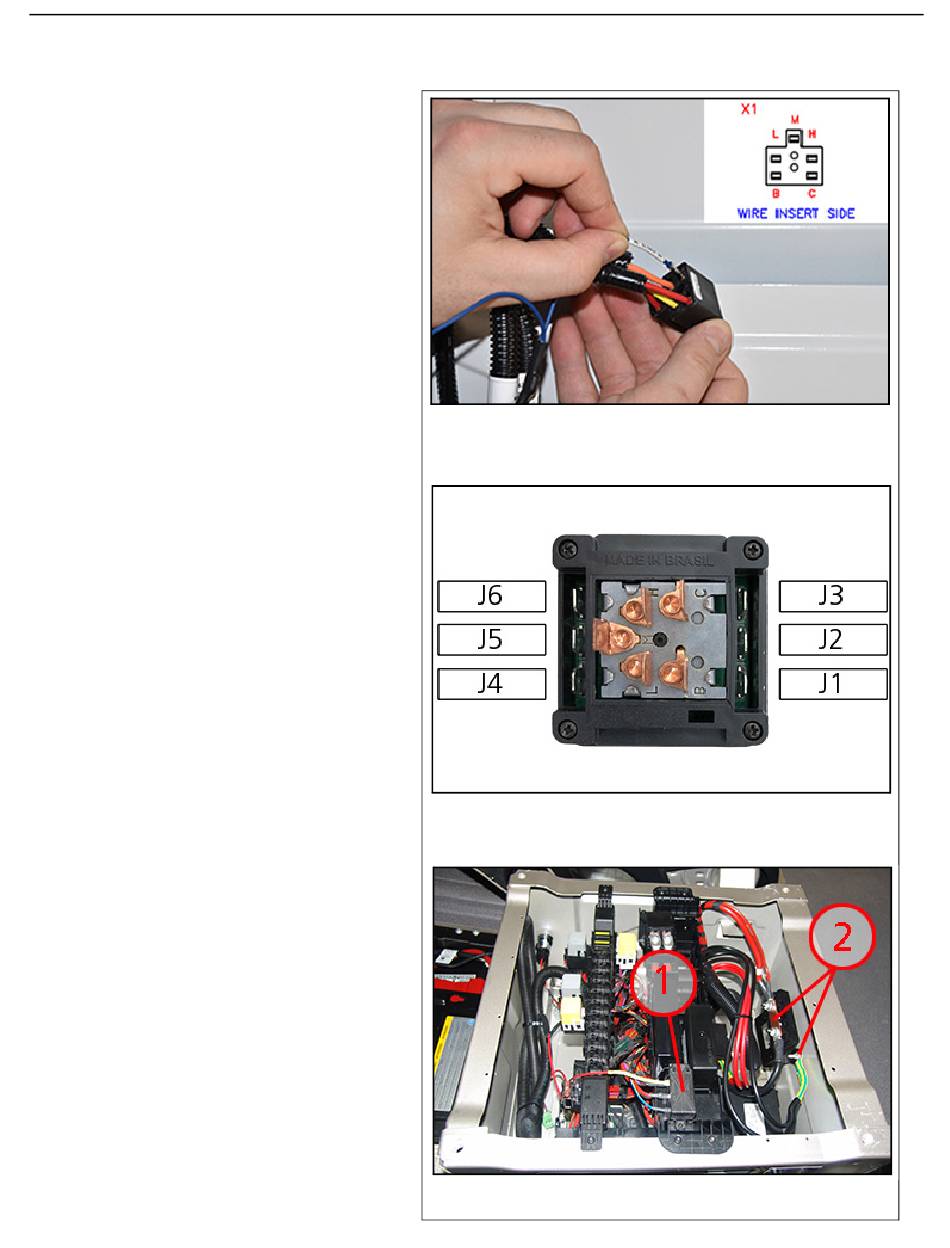

8. Insert the blue wire labeled AC BLOWER ON
from the NEO adapter harness (9) into cavity C
of the blower harness X1 connector (14).
NOTE: Refer to the graphic and table on the
previous page for more information.
9. Connect the following wiring harnesses to the
control panel:
• NEO adapter harness
• blower harness (14)
• thermostat (13)
• solenoid valve (15)
Refer to the graphic on the previous page for
more information.
10. Route the power and ground cables from the
blower and neo adapter harnesses under the
seat base. Using the supplied fuse holders
attach the power and ground cables [2]. DO
NOT install the fuses at this time.
